Path 3D model class. More...

#include <pyfbsdk_generated.h>

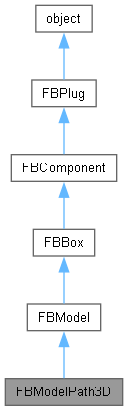

Inheritance diagram for FBModelPath3D:

[legend]

Public Member Functions
	FBModelPath3D (str pName)
	Constructor.

float	ConvertSegmentPercentToTotalPercent (float pPercent, FBEvaluateInfo pEvaluateInfo=None)
	Converting one key type Segment (time) to Total (percent).

float	ConvertToSegmentPercentFactor ()
	Get factor for multiplying the derivative of a key for segment mode.

float	ConvertToTotalPercentFactor ()
	Get factor for multiplying the derivative of a key for total mode.

float	ConvertTotalPercentToSegmentPercent (float pPercent, FBEvaluateInfo pEvaluateInfo=None)
	Converting one key type Total (percent) to Segment (time).

int	GetSelectedPathKeyCount ()
	Query the number of keys present in the selected path.

int	InsertNewEndKey ()
	Insert a new key at the end of the path.

int	InsertNewStartKey ()
	Insert a new key at the start of the path.

	PathKeyClear ()
	Clear the path keys.

int	PathKeyEndAdd (FBVector4d pTLocal)
	Adds a new key to the end of the path (with time gap of 1 sec).

FBVector4d	PathKeyGet (int pKeyIndex)
	Get path's key vector for at a particular key index.

FBModel	PathKeyGetControlNode (int pKeyIndex)
	Get the path key's control node.

int	PathKeyGetCount ()
	Query the number of keys present in the path.

FBVector4d	PathKeyGetLeftTangent (int pKeyIndex)
	Get the path key left tangent's vector value for designated index.

float	PathKeyGetLeftTangentLength (int pKeyIndex)
	Query the length of the left tangent.

FBProperty	PathKeyGetProperty (int pKeyIndex)
	Get the path key's corresponding property.

FBVector4d	PathKeyGetRightTangent (int pKeyIndex)
	Get the path key right tangent's vector value for designated index.

float	PathKeyGetRightTangentLength (int pKeyIndex)
	Query the value of the right tangent.

FBVector4d	PathKeyGetXYZDerivative (int pKeyIndex)
	Get vector in XYZ coordinates for a path tangent.

int	PathKeyInsertAfter (int pKeyIndex, FBVector4d pTLocal)
	Adds a new key immediately after the specified key ID (with time gap of 1 sec).

	PathKeyRemove (int pKeyIndex)
	Remove key at a particular index.

	PathKeyRemoveSelected ()
	Remove the selected keys from the path.

	PathKeySet (int pKeyIndex, FBVector4d pTLocal, bool pUpdate=True)
	Set the local coordinate vector values for path at a particular key index.

bool	PathKeySetControlNode (int pKeyIndex, FBModel pControlNode)
	Set the path key's control node.

	PathKeySetLeftRightTangent (int pKeyIndex, FBVector4d pKeyTLocal, FBVector4d pLeftTangentTLocal, FBVector4d pRightTangentTLocal, bool pUpdate=True)
	Set path's vectors for key, left tangent and right tangent at a particular key index.

	PathKeySetLeftTangent (int pKeyIndex, FBVector4d pTLocal, bool pUpdate=True)
	Set path's key left tangent vector for designated index.

	PathKeySetRightTangent (int pKeyIndex, FBVector4d pTLocal, bool pUpdate=True)
	Set 3D path's key right tangent vector for designated index.

	PathKeySetXDerivative (int pKeyIndex, float pDerivative, bool pUpdate)
	Set derivative in X coordinate for a path tangent.

	PathKeySetXYZDerivative (int pKeyIndex, FBVector4d pDerivative, bool pUpdate)
	Set derivative in XYZ coordinates for a path tangent.

	PathKeySetYDerivative (int pKeyIndex, float pDerivative, bool pUpdate)
	Set derivative in Y coordinate for a path tangent.

	PathKeySetZDerivative (int pKeyIndex, float pDerivative, bool pUpdate)
	Set derivative in Z coordinate for a path tangent.

int	PathKeyStartAdd (FBVector4d pTLocal)
	Adds a new key to the start of the path (with time gap of 1 sec).

FBVector4d	Segment_GlobalPathEvaluate (float pSegmentPercent, FBEvaluateInfo pEvaluateInfo=None)
	Get the path's vector at a particular point within the curve, in global coordinates.

FBVector4d	Segment_GlobalPathEvaluateDerivative (float pSegmentPercent, FBEvaluateInfo pEvaluateInfo=None)
	Get the path's derivative at a particular point within the curve, in global coordinates.

int	Segment_IsPathKey (float pSegmentPercent, FBEvaluateInfo pEvaluateInfo=None)
	Query whether a percentage value has a key associated at that point in the path.

FBVector4d	Segment_LocalPathEvaluate (float pSegmentPercent, FBEvaluateInfo pEvaluateInfo=None)
	Get the path's vector at a particular point within the curve, in local coordinates.

FBVector4d	Segment_LocalPathEvaluateDerivative (float pSegmentPercent, FBEvaluateInfo pEvaluateInfo=None)
	Get the path's derivative at a particular point within the curve, in local coordinates.

	ShowCurveControls (bool pShow)
	Enable or disable displaying Curve Controls for the 3D model path.

	ShowCurvePoints (bool pShow)
	Enable or disable displaying Curve Points for the 3D model path.

FBVector4d	Total_GlobalPathEvaluate (float pTotalPercent, FBEvaluateInfo pEvaluateInfo=None)
	Get the path's vector at a particular point within the curve, in global coordinates.

FBVector4d	Total_GlobalPathEvaluateDerivative (float pTotalPercent, FBEvaluateInfo pEvaluateInfo=None)
	Get the path's derivative at a particular point within the curve, in global coordinates.

int	Total_IsPathKey (float pTotalPercent, FBEvaluateInfo pEvaluateInfo=None)
	Query whether a percentage value has a key associated at that point in the path.

FBVector4d	Total_LocalPathEvaluate (float pTotalPercent, FBEvaluateInfo pEvaluateInfo=None)
	Get the path's vector at a particular point within the curve, in local coordinates.

FBVector4d	Total_LocalPathEvaluateDerivative (float pTotalPercent, FBEvaluateInfo pEvaluateInfo=None)
	Get the path's derivative at a particular point within the curve, in local coordinates.

	UpdateGeometry ()
	Update path geometry explicitly.

Public Member Functions inherited from FBModel
	FBModel (str pName)
	Constructor.

FBModel	Clone ()
	Clone the model.

	CollapseInSchematic ()
	Collapse the model in the schematic view.

	DofToLRM (FBMatrix pLM, FBRVector pDof)
	Convert object space vector to local matrix.

	ExpandInSchematic ()
	Expand the model in the schematic view.

	FBDelete ()
	Open Reality deletion function.

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Default', 'Mesh'.

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Model'.

	ForceAlwaysEvaluate ()
	Force Always Evaluate.

FBColor	GetAdditionalUniqueColorID (unsigned int pIndex)
	Get Additional Unique Color Id.

unsigned int	GetAdditionalUniqueColorIDCount ()
	Get additional unique color count.

	GetBoundingBox (FBVector3d pMin, FBVector3d pMax)
	Get the bounding box of the model.

unsigned int	GetHierarchyWorldMatrices (FBMatrix pMatricesArray, unsigned int pMatricesArrayCount, FBModelHiercharyTraverserType pHiercharyTraverserType, FBEvaluateInfo pEvaluateInfo=None)
	Computes the global transform matrices between this model and all its children (all levels).

	GetLocalTransformationMatrixWithGlobalRotationDoF (FBMatrix pMatrix, bool pInverse=False, FBEvaluateInfo pEvaluateInfo=None)
	Get the local transformation (or local inverse transformation) matrix with the global Rotation DoF values from the model.

	GetMatrix (FBMatrix pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=True, FBEvaluateInfo pEvaluateInfo=None)
	Get a matrix from the model.

FBVector2d	GetSchematicPosition ()
	Get the position in the schematic view for the model.

int	GetSelectedPointsCount ()
	Get the number of selected points in the model.

	GetVector (FBVector3d pVector, FBModelTransformationType pWhat=kModelTranslation, bool pGlobalInfo=True, FBEvaluateInfo pEvaluateInfo=None)
	Get a vector from the model.

bool	IsCollapsedInSchematic ()
	Returns if the model is collapsed or not (expanded) in the schematic view.

bool	IsEvaluationReady (FBModelEvaluationTaskType pWhat, FBEvaluateInfo pEvaluateInfo=None)
	Is the model's evaluation task result ready.

bool	IsForceAlwaysEvaluate ()
	Return Force Always Evaluate status.

bool	IsVisible (FBEvaluateInfo pEvaluateInfo=None)
	If the model is visible.

	LRMToDof (FBRVector pDof, FBMatrix pLM)
	Convert local matrix to object space vector.

	MatrixToRotation (FBRVector pRotation, FBMatrix pMatrix)
	Convert Rotation Matrix to Euler Vector based on model's rotation order.

int	NoFrustumCullingRelease ()
	Release no frustum culling request.

int	NoFrustumCullingRequire ()
	Acquire no frustum culling request.

bool	RayCast (FBCamera pCamera, int pMouseX, int pMouseY, FBVector3d pHitPosition, FBVector3d pHitNormal)
	Ray cast test.

	RotationToMatrix (FBMatrix pMatrix, FBRVector pRotation)
	Convert Euler Vector to Rotation Matrix based on model's rotation order.

bool	SetAdditionalUniqueColorIDCount (unsigned int pCount)
	Request additional Unique color IDs.

	SetMatrix (FBMatrix pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=True, bool pPushUndo=False, FBEvaluateInfo pEvaluateInfo=None)
	Set a matrix for the model.

	SetMatrixWithPrecision (FBMatrix pMatrix, FBModelTransformationType pWhat=kModelTransformation, bool pGlobalInfo=True, bool pPushUndo=False, FBEvaluateInfo pEvaluateInfo=None, float pPrecision=FBMat2EulerDegenerateForPrecision10)
	Set a matrix for the model.

	SetSchematicPosition (int pX, int pY)
	Set the position in the schematic view for the model.

	SetSchematicPosition (FBVector2d pVector2d)
	Set the position in the schematic view for the model.

	SetVector (FBVector3d pVector, FBModelTransformationType pWhat=kModelTranslation, bool pGlobalInfo=True, bool pPushUndo=False, FBEvaluateInfo pEvaluateInfo=None)
	Set a vector for the model.

	SetupPropertiesForShapes ()
	Setup Shape Properties.

bool	UseFrustumCulling ()
	Get the current Frustum Culling Status.

Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor.

bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node.

FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.

bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data?

FBAnimationNode	AnimationNodeOutGet ()

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index.

int	GetInConnectorCount ()
	Get the number of animation node inputs for this box.

FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index.

int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box.

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.

str	ClassName ()
	Get the class name.

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

bool	FBCreate ()
	Open Reality Creation function.

	FBDelete ()
	Open Reality deletion function.

	FBDestroy ()
	Open Reality destruction function.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.

	HardSelect ()
	HardSelect.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

bool	Is (int pTypeId)
	Returns true if object is of type TypeId.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
bool	AutoControlNode
	Read Write Property: Automatically create key control nodes.

FBAnimatableColor	Color
	Read Write Property: Path display color in viewport.

KeyBehavior	KeyPropertyBehavior
	Read Only Property: Key property behavior.

float	PathEndCapScale
	Read Write Property: Path end cap display scale.

PathEndCapStyle	PathEndCapStyle
	Read Write Property: Path end cap display style.

float	PathLength
	Read Only Property: Path Length In Centimeter.

str	PathLengthInString
	Read Only Property: Path Length Display String According To The Current Unit.

bool	PathLengthShow
	Read Write Property: Path length label display or not.

UnitType	PathLengthUnit
	Read Write Property: Path Length Unit.

FBColorAndAlpha	TextBackground
	Read Write Property: Path Length label display background color.

float	TextScale
	Read Write Property: Path Length label display scale.

Public Attributes inherited from FBModel
FBAnimationNode	AnimationNode
	Read Only Property: Animation node of the model.

bool	BlendShapeDeformable
	Read Write Property: Model blend-shape deformable. Not Savable

bool	CastsShadows
	Read Write Property: If true, the geometry will produce shadows.

FBListModel	Children
	List: Children for model.

bool	ConstrainDeformable
	Read Write Property: Model constraint deformable. Not Savable

FBListDeformer	Deformers
	List: Deformers (Skeleton Deformer or Point Cache Deformer).

FBVector3d	GeometricRotation
	Read Write Property: Geometric rotation.

FBVector3d	GeometricScaling
	Read Write Property: Geometric scaling.

FBVector3d	GeometricTranslation
	Read Write Property: Geometric translation.

FBGeometry	Geometry
	Read Write Property: Geometry for the model.

int	GeometryUpdateId
	Read Only Property: model geometry (vertex data) related update id.

bool	Icon3D
	Read Write Property: Is model a 3D icon?

bool	IsConstrained
	Read Only Property: Is model constrained?

bool	IsDeformable
	Read Only Property: Is model deformable?

FBModel	LookAt
	Read Write Property: Look at model (interest point).

FBListMaterial	Materials
	List: Materials for model.

FBModelVertexData	ModelVertexData
	Read Only Property: ModelVertexData for the model.

FBModel	Parent
	Read Write Property: Parent model.

bool	Pickable
	Read Write Property: Indicate if a model can be picked in the viewer. This has a default value of 'true'.

bool	PointCacheDeformable
	Read Write Property: Model point cache deformable. Not Savable

bool	PointCacheRecord
	Read Write Property: Record Point Cache for model? Not Savable

FBVector3d	PostRotation
	Read Write Property: Post Rotation (considered if RotationActive is true)

FBVector3d	PreRotation
	Read Write Property: Pre Rotation (considered if RotationActive is true)

bool	PrimaryVisibility
	Read Write Property: Control the geometry render state. Geometry can still cast shadows even if this is turned off.

bool	QuaternionInterpolate
	Read Write Property: Use quaternion interpolation.

bool	ReceiveShadows
	Read Write Property: If true, the geometry will receive shadows.

FBAnimatableVector3d	Rotation
	Read Write Property: Lcl rotation.

bool	RotationActive
	Read Write Property: Is model using Rotation Limits?

FBVector3d	RotationMax
	Read Write Property: Max Rotation Limit (considered if RotationActive is true)

bool	RotationMaxX
	Read Write Property: Is model using Maximum Rotation Limits On X?

bool	RotationMaxY
	Read Write Property: Is model using Maximum Rotation Limits On Y?

bool	RotationMaxZ
	Read Write Property: Is model using Maximum Rotation Limits On Z?

FBVector3d	RotationMin
	Read Write Property: Min Rotation Limit (considered if RotationActive is true)

bool	RotationMinX
	Read Write Property: Is model using Minimum Rotation Limits On X?

bool	RotationMinY
	Read Write Property: Is model using Minimum Rotation Limits On Y?

bool	RotationMinZ
	Read Write Property: Is model using Minimum Rotation Limits On Z?

FBModelRotationOrder	RotationOrder
	Read Write Property: Rotation order.

bool	RotationSpaceForLimitOnly
	Read Write Property: Apply Post Rotation Matrix only for Limits?

FBAnimatableVector3d	Scaling
	Read Write Property: Lcl scaling.

FBScene	Scene
	Read Only Property: Scene containing the model.

FBListShader	Shaders
	List: Shaders for model.

FBModelShadingMode	ShadingMode
	Read Write Property: Shading mode for the model.

bool	Show
	Read Write Property: Indicate if the viewer should show the object, according to its visibility value. This has a default value of 'false'.

bool	SkeletonDeformable
	Read Write Property: Model skeleton deformable. Not Savable

bool	SoftSelected
	Read Write Property: Is model Soft selected?

FBListTexture	Textures
	List: Textures with Special UseType (Other than "Color" which should connect to materials).

bool	Transformable
	Read Write Property: Indicate if a model can be transformable in the viewer. This has a default value of 'true'.

FBAnimatableVector3d	Translation
	Read Write Property: Lcl translation.

FBColor	UniqueColorId
	Read Only Property: Unique Color Id for color based viewer picking. Color channel values are in the range [0, 1] with 1.0/255 precision.

FBModel	UpVector
	Read Write Property: UpVector model.

FBAnimatableBool	Visibility
	Read Write Property: Visibility of model. This can be overridden by the 'Show' property.

bool	VisibilityInheritance
	Read Write Property: //!< When this value is set to True the Visibility of this model is also applied to all its descendants

Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable.

bool	Live
	Read Write Property: Is live?

bool	RecordMode
	Read Write Property: Is recording?

str	UniqueName
	internal Unique name.

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.

str	LongName
	Read Write Property: Name and namespace for object.

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent	Parents
	List: Parents.

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

bool	Selected
	Read Write Property: Selected property.

int	TypeInfo
	Contains the Type information of the object.

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.

int	TypeInfo
	TypeInfo.

Detailed Description

Path 3D model class.

Constructor & Destructor Documentation

◆ FBModelPath3D()

FBModelPath3D ( str pName )

Constructor.

Python sample code:

from pyfbsdk import *

path = FBModelPath3D("Test")
## After creation, a path always contain two default keys.
## At this point, path.PathKeyGetCount() will be 2.
path.Show = True
## Reposition the two default keys
path.PathKeySet(0,FBVector4d(0,0,50,0))
path.PathKeySet(1,FBVector4d(50,0,0,0))
## Add new keys at start and end of the path
path.PathKeyStartAdd(FBVector4d(0,0,100,0))
path.PathKeyEndAdd(FBVector4d(100,0,0,0))
## Insert keys inbetween existing keys
path.PathKeyInsertAfter(1,FBVector4d(0,25,50,0))
path.PathKeyInsertAfter(2,FBVector4d(50,25,0,0))

Parameters

pName Name of Path 3D.

Member Function Documentation

◆ ConvertSegmentPercentToTotalPercent()

float ConvertSegmentPercentToTotalPercent	(	float	pPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Converting one key type Segment (time) to Total (percent).

Parameters

pPercent Double value (as time)

Returns: Double value which represents the corresponding percentage

◆ ConvertToSegmentPercentFactor()

float ConvertToSegmentPercentFactor ( )

Get factor for multiplying the derivative of a key for segment mode.

Returns: Returns the derivative multiplication factor

◆ ConvertTotalPercentToSegmentPercent()

float ConvertTotalPercentToSegmentPercent	(	float	pPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Converting one key type Total (percent) to Segment (time).

Parameters

pPercent Double value (as percentage)

Returns: Double value which represents the corresponding time.

◆ ConvertToTotalPercentFactor()

float ConvertToTotalPercentFactor ( )

Get factor for multiplying the derivative of a key for total mode.

Returns: Returns the time factor

◆ GetSelectedPathKeyCount()

int GetSelectedPathKeyCount ( )

Query the number of keys present in the selected path.

Returns: Returns the number of keys in the selected path

◆ InsertNewEndKey()

int InsertNewEndKey ( )

Insert a new key at the end of the path.

Returns: Returns (N) where (N+1) is the new total number of keys, and since the new key becomes the Nth key (index starts from 0). If path is invalid, returns 0.

◆ InsertNewStartKey()

int InsertNewStartKey ( )

Insert a new key at the start of the path.

Returns: Returns 0 since the new key becomes the first key. If path is invalid, returns 0.

◆ PathKeyClear()

PathKeyClear ( )

Clear the path keys.

◆ PathKeyEndAdd()

int PathKeyEndAdd ( FBVector4d pTLocal )

Adds a new key to the end of the path (with time gap of 1 sec).

The derivative value for the new key is copied from the left tangent of the last key.

Parameters

pTLocal Vector value for the new added Key

Returns: Returns (N) where (N+1) is the new total number of keys, and since the new key becomes the Nth key (index starts from 0). If path is invalid, returns 0.

◆ PathKeyGet()

FBVector4d PathKeyGet ( int pKeyIndex )

Get path's key vector for at a particular key index.

Parameters

pKeyIndex Key ID to set with

Returns: Return the vector containing the value of the path key.

◆ PathKeyGetControlNode()

FBModel PathKeyGetControlNode ( int pKeyIndex )

Get the path key's control node.

Only works when KeyPropertyBehavior is eVector.

Parameters

pKeyIndex Key ID to get

Returns: Path key's corresponding control node if successful, otherwise NULL.

◆ PathKeyGetCount()

int PathKeyGetCount ( )

Query the number of keys present in the path.

Returns: Number of keys present in the path

◆ PathKeyGetLeftTangent()

FBVector4d PathKeyGetLeftTangent ( int pKeyIndex )

Get the path key left tangent's vector value for designated index.

Parameters

pKeyIndex Key ID at which left tangent value is required

Returns: Vector containing value of left tangent

◆ PathKeyGetLeftTangentLength()

float PathKeyGetLeftTangentLength ( int pKeyIndex )

Query the length of the left tangent.

Parameters

pKeyIndex Key ID to set with

Returns: Double value of the length of left tangent

◆ PathKeyGetProperty()

FBProperty PathKeyGetProperty ( int pKeyIndex )

Get the path key's corresponding property.

Only works when KeyPropertyBehavior is eVector.

Parameters

pKeyIndex Key ID to get

Returns: Path key's corresponding property if successful, otherwise NULL.

◆ PathKeyGetRightTangent()

FBVector4d PathKeyGetRightTangent ( int pKeyIndex )

Get the path key right tangent's vector value for designated index.

Parameters

pKeyIndex Key ID to set with

Returns: Vector containing value of left tangent

◆ PathKeyGetRightTangentLength()

float PathKeyGetRightTangentLength ( int pKeyIndex )

Query the value of the right tangent.

Parameters

pKeyIndex Key ID to set with

Returns: Double value of the length of right tangent

◆ PathKeyGetXYZDerivative()

FBVector4d PathKeyGetXYZDerivative ( int pKeyIndex )

Get vector in XYZ coordinates for a path tangent.

This works only if key interpolation type is CUBIC and tangent mode is User, Break or Auto.

Parameters

pKeyIndex Key ID to set with

Returns: Vector with value for path's tangent XYZ derivatives

◆ PathKeyInsertAfter()

int PathKeyInsertAfter	(	int	pKeyIndex,
		FBVector4d	pTLocal
	)

Adds a new key immediately after the specified key ID (with time gap of 1 sec).

The following keys are all shifted by 1 sec.

Parameters

pKeyIndex	Key ID to insert after. If key ID < 0 then the behavior is the same as PathKeyStartAdd. If key ID >= PathKeyGetCount-1 then the behavior is the same as PathKeyEndAdd.
pTLocal	Vector value for the new added Key

Returns: Returns the newly inserted key ID.

◆ PathKeyRemove()

PathKeyRemove ( int pKeyIndex )

Remove key at a particular index.

Parameters

pKeyIndex Key ID at which key is to be removed.

◆ PathKeyRemoveSelected()

PathKeyRemoveSelected ( )

Remove the selected keys from the path.

◆ PathKeySet()

PathKeySet	(	int	pKeyIndex,
		FBVector4d	pTLocal,
		bool	pUpdate = `True`
	)

Set the local coordinate vector values for path at a particular key index.

Parameters

pKeyIndex	Key ID to set with
pTLocal	Vector to use to set values to Key
pUpdate	true if geometry update is required, false if not required (default=true)

◆ PathKeySetControlNode()

bool PathKeySetControlNode	(	int	pKeyIndex,
		FBModel	pControlNode
	)

Set the path key's control node.

Only works when KeyPropertyBehavior is eVector and AutoControlNode is disabled.

Parameters

pKeyIndex	Key ID to set
pControlNode	Model to set as path key's control node.

Returns: True if successful, otherwise false.

◆ PathKeySetLeftRightTangent()

PathKeySetLeftRightTangent	(	int	pKeyIndex,
		FBVector4d	pKeyTLocal,
		FBVector4d	pLeftTangentTLocal,
		FBVector4d	pRightTangentTLocal,
		bool	pUpdate = `True`
	)

Set path's vectors for key, left tangent and right tangent at a particular key index.

Parameters

pKeyIndex	Key ID to set key for left and right tangents
pKeyTLocal	Vector to use to set values to Key
pLeftTangentTLocal	Vector to use to set values to Key Left Tangent
pRightTangentTLocal	Vector to use to set values to Key Right Tangent
pUpdate	true if geometry update is required, false if not required (default=true)

◆ PathKeySetLeftTangent()

PathKeySetLeftTangent	(	int	pKeyIndex,
		FBVector4d	pTLocal,
		bool	pUpdate = `True`
	)

Set path's key left tangent vector for designated index.

Parameters

pKeyIndex	Key ID at which left tangent is to be set
pTLocal	Vector to use to set values to Key
pUpdate	true if geometry update is required, false if not required (default=true)

◆ PathKeySetRightTangent()

PathKeySetRightTangent	(	int	pKeyIndex,
		FBVector4d	pTLocal,
		bool	pUpdate = `True`
	)

Set 3D path's key right tangent vector for designated index.

Parameters

pKeyIndex	Key ID at which right tangent is to be set
pTLocal	Vector to use to set values to Key
pUpdate	true if geometry update is required, false if not required (default=true)

◆ PathKeySetXDerivative()

PathKeySetXDerivative	(	int	pKeyIndex,
		float	pDerivative,
		bool	pUpdate
	)

Set derivative in X coordinate for a path tangent.

This works only if key interpolation type is CUBIC and tangent mode is User, Break or Auto.

Parameters

pKeyIndex	Key ID to set with
pDerivative	Value of the derivative to apply to tangent
pUpdate	true if geometry update is required, false if not required (default=true)

◆ PathKeySetXYZDerivative()

PathKeySetXYZDerivative	(	int	pKeyIndex,
		FBVector4d	pDerivative,
		bool	pUpdate
	)

Set derivative in XYZ coordinates for a path tangent.

This works only if key interpolation type is CUBIC and tangent mode is User, Break or Auto.

Parameters

pKeyIndex	Key ID to set with
pDerivative	Value of the derivative to apply to tangent
pUpdate	true if geometry update is required, false if not required (default=true)

◆ PathKeySetYDerivative()

PathKeySetYDerivative	(	int	pKeyIndex,
		float	pDerivative,
		bool	pUpdate
	)

Set derivative in Y coordinate for a path tangent.

This works only if key interpolation type is CUBIC and tangent mode is User, Break or Auto.

Parameters

pKeyIndex	Key ID to set with
pDerivative	Value of the derivative to apply to tangent
pUpdate	true if geometry update is required, false if not required (default=true)

◆ PathKeySetZDerivative()

PathKeySetZDerivative	(	int	pKeyIndex,
		float	pDerivative,
		bool	pUpdate
	)

Set derivative in Z coordinate for a path tangent.

This works only if key interpolation type is CUBIC and tangent mode is User, Break or Auto.

Parameters

pKeyIndex	Key ID to set with
pDerivative	Value of the derivative to apply to tangent
pUpdate	true if geometry update is required, false if not required (default=true)

◆ PathKeyStartAdd()

int PathKeyStartAdd ( FBVector4d pTLocal )

Adds a new key to the start of the path (with time gap of 1 sec).

The derivative value for the new key is copied from the right tangent of the first key.

Parameters

pTLocal Vector value for the new added Key

Returns: Returns 0 since the new key becomes the first key. If path is invalid, returns 0.

◆ Segment_GlobalPathEvaluate()

FBVector4d Segment_GlobalPathEvaluate	(	float	pSegmentPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Get the path's vector at a particular point within the curve, in global coordinates.

Parameters

pSegmentPercent Double value (as time) at which the path vector would be computed

Returns: Vector value at the required point in the path

◆ Segment_GlobalPathEvaluateDerivative()

FBVector4d Segment_GlobalPathEvaluateDerivative	(	float	pSegmentPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Get the path's derivative at a particular point within the curve, in global coordinates.

Parameters

pSegmentPercent Double value (as time) at which the path derivative would be computed

Returns: Vector value at the required point in the path

◆ Segment_IsPathKey()

int Segment_IsPathKey	(	float	pSegmentPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Query whether a percentage value has a key associated at that point in the path.

Parameters

pSegmentPercent Double value (as time) at which the path would be queried for existence of key

Returns: A valid key index in integer if key is present, otherwise -1

◆ Segment_LocalPathEvaluate()

FBVector4d Segment_LocalPathEvaluate	(	float	pSegmentPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Get the path's vector at a particular point within the curve, in local coordinates.

Parameters

pSegmentPercent Double value (as time) at which the path vector would be computed

Returns: Vector value at the required point in the path

◆ Segment_LocalPathEvaluateDerivative()

FBVector4d Segment_LocalPathEvaluateDerivative	(	float	pSegmentPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Get the path's derivative at a particular point within the curve, in local coordinates.

Parameters

pSegmentPercent Double value (as time) at which the path derivative would be computed

Returns: Vector value at the required point in the path

◆ ShowCurveControls()

ShowCurveControls ( bool pShow )

Enable or disable displaying Curve Controls for the 3D model path.

Parameters

pShow true if curve controls are to be displayed false if not required

◆ ShowCurvePoints()

ShowCurvePoints ( bool pShow )

Enable or disable displaying Curve Points for the 3D model path.

Parameters

pShow true if curve points are to be displayed false if not required

◆ Total_GlobalPathEvaluate()

FBVector4d Total_GlobalPathEvaluate	(	float	pTotalPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Get the path's vector at a particular point within the curve, in global coordinates.

Parameters

pTotalPercent Double value (as percentage) at which the path vector would be computed

Returns: Vector value at the required point in the path

◆ Total_GlobalPathEvaluateDerivative()

FBVector4d Total_GlobalPathEvaluateDerivative	(	float	pTotalPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Get the path's derivative at a particular point within the curve, in global coordinates.

Parameters

pTotalPercent Double value (as percentage) at which the path derivative would be computed

Returns: Derivative value at the required point in the path

◆ Total_IsPathKey()

int Total_IsPathKey	(	float	pTotalPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Query whether a percentage value has a key associated at that point in the path.

Parameters

pTotalPercent Double value (as percentage) at which the path would be queried for existence of key

Returns: A valid key index in integer if key is present, otherwise -1

◆ Total_LocalPathEvaluate()

FBVector4d Total_LocalPathEvaluate	(	float	pTotalPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Get the path's vector at a particular point within the curve, in local coordinates.

Parameters

pTotalPercent Double value (as percentage) at which the path vector would be computed

Returns: Vector value at the required point in the path

◆ Total_LocalPathEvaluateDerivative()

FBVector4d Total_LocalPathEvaluateDerivative	(	float	pTotalPercent,
		FBEvaluateInfo	pEvaluateInfo = `None`
	)

Get the path's derivative at a particular point within the curve, in local coordinates.

Parameters

pTotalPercent Double value (as percentage) at which the path derivative would be computed

Returns: Derivative value at the required point in the path

◆ UpdateGeometry()

UpdateGeometry ( )

Update path geometry explicitly.

Member Data Documentation

◆ AutoControlNode

bool AutoControlNode

Read Write Property: Automatically create key control nodes.

◆ Color

FBAnimatableColor Color

Read Write Property: Path display color in viewport.

◆ KeyPropertyBehavior

KeyBehavior KeyPropertyBehavior

Read Only Property: Key property behavior.

◆ PathEndCapScale

float PathEndCapScale

Read Write Property: Path end cap display scale.

◆ PathEndCapStyle

PathEndCapStyle PathEndCapStyle

Read Write Property: Path end cap display style.

◆ PathLength

float PathLength

Read Only Property: Path Length In Centimeter.

◆ PathLengthInString

str PathLengthInString

Read Only Property: Path Length Display String According To The Current Unit.

◆ PathLengthShow

bool PathLengthShow

Read Write Property: Path length label display or not.

◆ PathLengthUnit

UnitType PathLengthUnit

Read Write Property: Path Length Unit.

◆ TextBackground

FBColorAndAlpha TextBackground

Read Write Property: Path Length label display background color.

◆ TextScale

float TextScale

Read Write Property: Path Length label display scale.

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ FBModelPath3D()

Member Function Documentation

◆ ConvertSegmentPercentToTotalPercent()

◆ ConvertToSegmentPercentFactor()

◆ ConvertTotalPercentToSegmentPercent()

◆ ConvertToTotalPercentFactor()

◆ GetSelectedPathKeyCount()

◆ InsertNewEndKey()

◆ InsertNewStartKey()

◆ PathKeyClear()

◆ PathKeyEndAdd()

◆ PathKeyGet()

◆ PathKeyGetControlNode()

◆ PathKeyGetCount()

◆ PathKeyGetLeftTangent()

◆ PathKeyGetLeftTangentLength()

◆ PathKeyGetProperty()

◆ PathKeyGetRightTangent()

◆ PathKeyGetRightTangentLength()

◆ PathKeyGetXYZDerivative()

◆ PathKeyInsertAfter()

◆ PathKeyRemove()

◆ PathKeyRemoveSelected()

◆ PathKeySet()

◆ PathKeySetControlNode()

◆ PathKeySetLeftRightTangent()

◆ PathKeySetLeftTangent()

◆ PathKeySetRightTangent()

◆ PathKeySetXDerivative()

◆ PathKeySetXYZDerivative()

◆ PathKeySetYDerivative()

◆ PathKeySetZDerivative()

◆ PathKeyStartAdd()

◆ Segment_GlobalPathEvaluate()

◆ Segment_GlobalPathEvaluateDerivative()

◆ Segment_IsPathKey()

◆ Segment_LocalPathEvaluate()

◆ Segment_LocalPathEvaluateDerivative()

◆ ShowCurveControls()

◆ ShowCurvePoints()

◆ Total_GlobalPathEvaluate()

◆ Total_GlobalPathEvaluateDerivative()

◆ Total_IsPathKey()

◆ Total_LocalPathEvaluate()

◆ Total_LocalPathEvaluateDerivative()

◆ UpdateGeometry()

Member Data Documentation

◆ AutoControlNode

◆ Color

◆ KeyPropertyBehavior

◆ PathEndCapScale

◆ PathEndCapStyle

◆ PathLength

◆ PathLengthInString

◆ PathLengthShow

◆ PathLengthUnit

◆ TextBackground

◆ TextScale
