To add nozzles to custom equipment

  1. After creating or modifying custom equipment, in the model, click a piece of equipment to select it.
  2. Click the Add Nozzle grip.

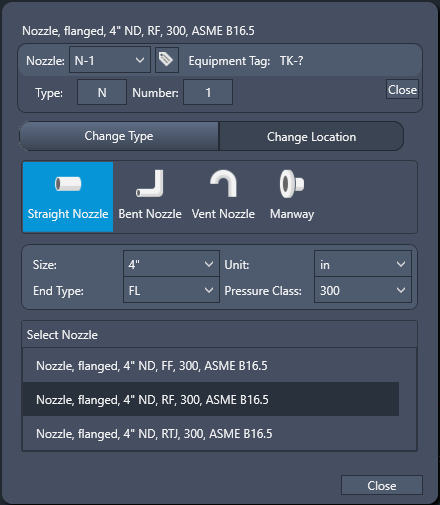

  3. In the dialog box, do the following:
    • (Optional) Click Tag to expand the dialog and enter tag information for the nozzle.
    • Filter the nozzle list by clicking the nozzle type (for example: Straight, Bent, Vent, and Manway).
    • Filter further by clicking the boxes and selecting values for the properties (for example: size = 12”, unit = in, end type = FL, pressure class = 300).
    • Under Select Nozzle, click the nozzle to select it.

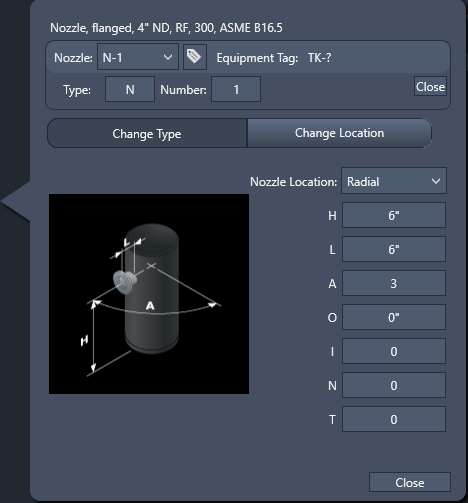

    • Click the Change Location button and set the nozzle dimensions.
  4. When you are finished, click Close.
  5. Repeat these steps to add other nozzles as needed.
