CATLiftPlantMod : FloatController

CATLiftPlantMod : FloatController {46606abf,2d3676}

This is a CATMotion controller used in the animation of Limbs in 3ds Max CAT.

Other controllers used for CATMotion Limb Animation include CATKneeAngle : FloatController and CATLegWeight : FloatController.

Constructor

Class instances not creatable by MAXScript

Aliases

CATLiftPlantMod CAT_LiftPlantMod

Properties

 <CATLiftPlantMod>.LimbData (CATLimbData) : maxObject

Contains the LimbData controller object.

 <CATLiftPlantMod>.CATBranch : maxObject

Contains the Branch controller.

 <CATLiftPlantMod>.CATMotionLimb : maxObject

Contains the CATMotionLimb controller.

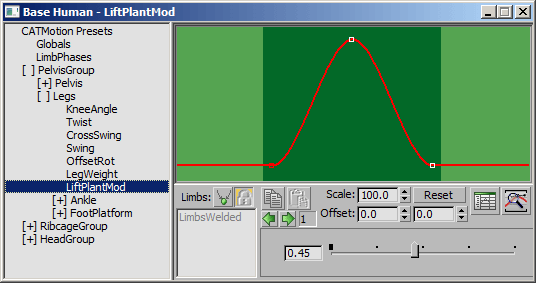

 <CATLiftPlantMod>.LiftPlantRatio : float

Get/set the Lift Plant Ratio value of the controller.
