Data Panel reference

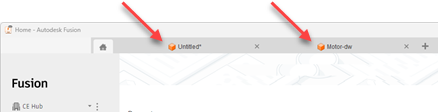

Note: Fusion is gradually being updated with the Home tab, a new way of navigating around Fusion that replaces the Data Panel. The next time you start Fusion, check to see if you have access to it yet. See Home tab.

Use the Data Panel to access, organize, and share your Fusion projects and design data.

The Data Panel is hidden by default. Click the Show Data Panel icon data panel icon to open it.

Tip: Press Ctrl+Alt+P (Windows) or Option+Command+P (MacOS) to show or hide the Data Panel.

data panel ui overview

The Data Panel enables you to view your projects and designs. It also includes sets of samples you can use, for example CAM samples.

Use the project filter to change which projects are visible:

Open a project

Double-click the name of the project or a sample to access data that are contained within particular project or sample folder.

Note: the hub name is displayed at the top of the data panel. Click the hub name to access it in the Fusion web client.

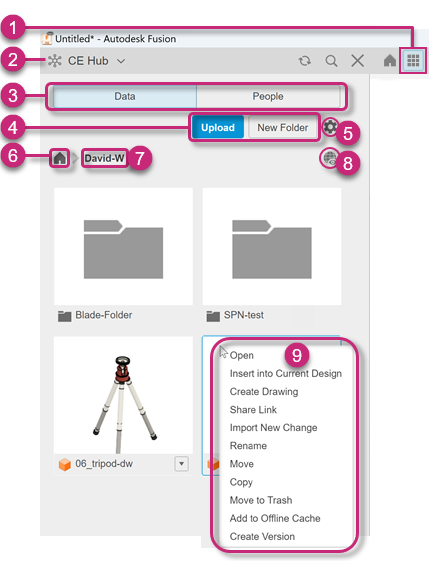

data panel ui overview

1. Project selector

Display the name of the active project. Click the back arrow to display the project list.

2. Project tools

Display project data on the web or searches the active project.

3. Data Panel show/hide

Click to show or hide the Data Panel.

4. Data or People

Control the display of data or people in the Data Panel.

5. View tools

Create a new folder or change the display of items in the Data Panel.

Upload: Upload design data from a supported CAD system.

New Folder: Create a new folder in the active project.

Options: settings icon Choose how to sort and list data.

6. Context menu

Right-click to access commands for that specific design.
