Use the Property Editor component in your UI

This page shows two different ways that you can re-use the Stingray editor's Property Editor widget in your own plug-in's user interface.

One uses a .type file to define the structure of a data resource, along with the controls that the editor should expose for editing those data values. For background on these .type files, see also The Stingray Type System.
The other uses pure JavaScript to feed the property editor widget with the data it should manage.

The plug-in definition

The first thing to do in order to add a new panel to the plug-in is to define the panel in your .stingray_plugin file. Here we're using the views and menus extensions:

 views = [
    {
        type = "panel"
        name = "property-editor-usage"
        path = "property-editor-usage"
        title = "Property Editor usage"
        width = 500
        height = 600
    }
]
menus = [
    {
        path = "Window/My Property Editor Panel"
        view = "plugin-manager"
        shortcut = "Alt+Shift+P"
        order = 379
    }
]

Panel initialization

The panel's JavaScript file must begin with a define block that specifies which other JavaScript modules you want to include. See the last section in Tips for developing plug-ins for more details on why and how this works.

// This is the list of all modules we depend on:
define([
    'properties/mithril-property-ext',
    'properties/property-editor-utils',
    'properties/property-editor-component',
    'properties/property-document',
    'components/dom-tools',
    'services/data-type-service',
    'services/marshalling-service',
    'services/host-service',
    'services/project-service',
    'services/element-service',
    'services/asset-service',
    'services/file-system-service'
],
    /** This is the initialization function of your module. Each required dependency gets injected
        in the same order it is included. Module starting with capital letter a generally Component
        or class (that can be used with new). Module starting with a lowerCase are generally namespace
        containing functions and data.
    */
    function (m, props, PropertyEditor, PropertyDocument, domTools, dataTypeService,
             marshallingService, hostService, projectService, elementService, assetService, fileSystemService) {
    'use strict';
    document.title = "Simple tool";

    // Ensure all CSS are loaded for the property editor:
    domTools.loadCss("core/css/widgets/json-component.css");
    domTools.loadCss("core/css/widgets/property-editor.css");

Also see the section Use built-in editor services for more information on the core Stingray services included in the define call above.

Method 1: Using a type file

The first thing we will do is to specify a type descriptor for the data we want to display in our property editor widget. You could do this by loading a .type file from disk -- for example, by using the readJSON() method offered by the editor's fileSystemService. However, here we will define it directly in JavaScript (using pure JSON):

// Create the type definition "inline". Alternatively, it could have been loaded from a .type file:
var typeDefinition = {
    type: ':struct',
    fields: {
        Number: {
            type: ":number",
            default: 1,
            min: 0,
            max: 1,
            editor: {
                control: "Number",
                step: 0.3,
                priority: 4
            }
        },
        Boolean: {
            type: ":bool",
            default: true
        },
        Enum: {
            type: ":enum",
            value: ":string",
            default: "InLoading",
            cases: [
                "Loaded",
                "Unloaded",
                "InLoading",
                "ErrorLoading"
            ],
            editor: {
                control: "Choice",
                label: "Load state",
                case_labels: {
                    "Loaded": "Loaded",
                    "Unloaded": "Unloaded",
                    "In Loading...": "InLoading",
                    "Error while Loading": "ErrorLoading"
                }
            }
        },
        Unit: {
            type: ":resource",
            extension: "unit",
            default: 'core/units/light'
        },
        FilePath: {
            type: ":string",
            default: 'C:/Program Files/Git/bin/git.exe',
            editor: {
                control: "PathProperty",
                browseType: "File",
                browseTitle: "Select a exe",
                browseFilter: "*.exe"
            }
        },
        DirPath: {
            type: ":string",
            default: 'C:/Program Files/Git',
            editor: {
                control: "PathProperty",
                browseType: "Folder",
                browseTitle: "Select a folder"
            }
        }
    }
};

The type descriptor we defined above has six different properties. Each field has:

A type, which indicates what type of data this field holds -- a number, a string, a resource name, etc. See Built-in types reference for the list of basic types that are built in to the editor.
An editor block, which specifies which property control the editor should show in the property editor for modifying this field. It also sets other metadata about the control, like the step size for adjacent numeric values in a spinner control. For more information on the full set of property controls supported by the editor, see Built-in metadata properties.

Property Document setup

In order to intialize a property editor from a type descriptor, we use the PropertyDocument class. This class allows us to customize the categories and to listen for valueChanged events that happen when the user modifies the JSON value using the controls in the property editor.

// Use the dataTypeService to create an initial value that conforms to the type definition.
var initialValue = dataTypeService.createDefaultValue(typeDefinition);

// This instance will holds all the categories and properties created from the type definition.
var documentFromType = new PropertyDocument();

// you can register a global listener to know when a property changes:
documentFromType.on('valueChanged', function (path, value) {
    console.log('valueChanged', path, value);
    m.utils.redraw();
});

// Now we add a category block mapped to a typeDefinition and a value:
documentFromType.addCategory("My Data", {}, initialValue, typeDefinition);

The documentFromType will be passed to the PropertyEditor component in order to be rendered in the HTML panel. But before we finalize the UI code, let's see how to create a property editor purely from JavaScript and without using type descriptors.

Method 2: using compact notation

You can access all the property controls offered by the Stingray editor through the property-editor-utils module. In the define call we set up in the [Initialization] section above, we required this module and assigned it to the props variable.

You can use pure JavaScript code to control the parameters of these different properties, as well as tweak how their property models should behave.

All properties use a special getter/setter function, called a model, to access and modify their data. This gives you a lot of flexibility when you define how a property should be populated. A property model is a function that can be invoked with one or two argument(s):

The first argument is the property that triggers the model change.
If there is no second argument, the function is a getter: it must return the value of the property.
If there is a second argument, the function is a setter: it must modify the value of the property.

In our panel, we have created a property model generator function:

function genModel (value) {
    // This returns a property model function that uses a closure to stores its value.
    return function (newValue) {
        if (arguments.length) {
            // arguments is a JavaScript built in variable available in a function. It allows access to
            // all the parameters passed to the function. Here we check if we have more than
            // 1 parameters so see if the model should be used as a setter.
            value = newValue;
        }
        return value;
    };
}

The following code uses the editor's compact notation to express exactly the same set of properties that we set up in the .type example above:

// The compact notation allows easy configuration of a PropertyEditor using pure JavaScript:
var compactNotationDocument = new PropertyDocument([
    props.category("My Data also!", {}, [
        props.number("Number", genModel(1), {
            default: 1, min: 0, max: 1, increment: 0.3, priority: 4
        }),
        props.bool('Boolean', genModel(true)),
        props.choice('Load State', genModel('InLoading'), {
                "Loaded": "Loaded",
                "Unloaded": "Unloaded",
                "In Loading...": "InLoading",
                "Error while Loading": "ErrorLoading"
            }),
        props.resource('Unit', genModel('core/units/light'), 'unit'),
        props.file('FilePath', genModel('C:/Program Files/Git/bin/git.exe')),
        props.directory('DirPath', genModel('C:/Program Files/Git')),
    ])
]);

For more information on the different property controls supported by Stingray compact notation, see Built-in metadata properties.

Create and mount a Mithril view

All that is left to complete our panel is to create a view that holds the two property editor widgets. We'll use Mithril: a lightweight JavaScript library that simplifies creating dynamic HTML that stays in sync with a data model. Everything can be done in pure JavaScript (even the templating), which allows easy debugging.

We use two of Mithril's core concepts:

Component: this is a plain JavaScript object that must contain a view function. This view function uses the hyperscript helper called m to create a virtual DOM that gets attached to the real HTML DOM that is shown to the user in the view. See here for more information on how to use the Mithril templating language (which is really HTML expressed in JavaScript).
Mount: when we have a Mithril component, we need to mount it on a real DOM node to properly render.

Here what our view code looks like:

// Our app component
var PropertyEditorUsageApp = {
    view: function () {
        return m('div', {class :"panel-fill panel-flex-horizontal fullscreen", style:"overflow: auto;"}, [
            m('div', {class: "panel-fill"}, [
                // Use the PropertyEditor Mithril component to attach a
                // Property editor in our view and pass it a configuration:
                PropertyEditor.component({document: documentFromType })
            ]),
            m('div', {class: "panel-fill"}, [
                PropertyEditor.component({document: compactNotationDocument})
            ])
        ]);
    }
};

// Mount the component on DOM
m.mount($('#mithril-root')[0], m.component(PropertyEditorUsageApp, {}));

The whole enchilada

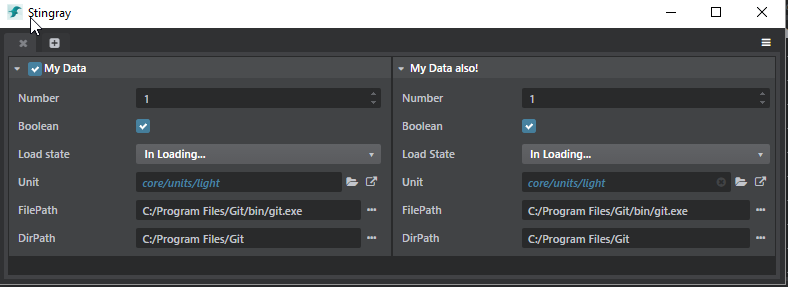

This is what our final panel looks like in the editor!

And here is its complete source code:

define([
    'properties/mithril-property-ext',
    'properties/property-editor-utils',
    'properties/property-editor-component',
    'properties/property-document',
    'components/dom-tools',
    'services/data-type-service',
    'services/marshalling-service',
    'services/host-service',
    'services/project-service',
    'services/element-service',
    'services/asset-service',
    'services/file-system-service'
], function (m, props, PropertyEditor, PropertyDocument, domTools, dataTypeService,
             marshallingService, hostService, projectService, elementService, assetService, fileSystemService) {
    'use strict';
    document.title = "Simple tool";

    // Ensure all CSS are loaded for the property editor:
    domTools.loadCss("core/css/widgets/json-component.css");
    domTools.loadCss("core/css/widgets/property-editor.css");

    //////////////////////////////////////////////////////////////////
    // Initialization of a property editor using a Type file to populate itself.

    // Create type definition "inline". could have been loaded from a .type file.
    var typeDefinition = {
        type: ':struct',
        fields: {
            Number: {
                type: ":number",
                default: 1,
                min: 0,
                max: 1,
                editor: {
                    control: "Number",
                    step: 0.3,
                    priority: 4
                }
            },
            Boolean: {
                type: ":bool",
                default: true
            },
            Enum: {
                type: ":enum",
                value: ":string",
                default: "InLoading",
                cases: [
                    "Loaded",
                    "Unloaded",
                    "InLoading",
                    "ErrorLoading"
                ],
                editor: {
                    control: "Choice",
                    label: "Load state",
                    case_labels: {
                        "Loaded": "Loaded",
                        "Unloaded": "Unloaded",
                        "In Loading...": "InLoading",
                        "Error while Loading": "ErrorLoading"
                    }
                }
            },
            Unit: {
                type: ":resource",
                extension: "unit",
                default: 'core/units/light'
            },
            FilePath: {
                type: ":string",
                default: 'C:/Program Files/Git/bin/git.exe',
                editor: {
                    control: "PathProperty",
                    browseType: "File",
                    browseTitle: "Select a exe",
                    browseFilter: "*.exe"
                }
            },
            DirPath: {
                type: ":string",
                default: 'C:/Program Files/Git',
                editor: {
                    control: "PathProperty",
                    browseType: "Folder",
                    browseTitle: "Select a folder"
                }
            }
        }
    };

    // Use the dataTypeService to create an initial value conforming to the type definition.
    var initialValue = dataTypeService.createDefaultValue(typeDefinition);

    // This instance will holds all the categories and properties created from the type definition.
    var documentFromType = new PropertyDocument();

    // you can register global listener to know when a property changes:
    documentFromType.on('valueChanged', function (path, value, property, category, doc) {
        console.log('valueChanged', path, value, property, category, doc);
        m.utils.redraw();
    });

    // Now we add a category block mapped to a typeDescriptor and a value:
    documentFromType.addCategory("My Data", {}, initialValue, typeDefinition);

    //////////////////////////////////////////////////////////////////
    // Initialization of a property editor using a Type file to populate itself.

    // This will be our model generator:
    function genModel (value) {
        return function (property, newValue) {
            if (arguments.length > 1) {
                value = newValue;
            }
            return value;
        };
    }

    // The compact notation allows easy configuration of a PropertyEditor using pure JavaScript:
    var compactNotationDocument = new PropertyDocument([
        props.category("My Data also!", {}, [
            props.number("Number", genModel(1), {
                default: 1, min: 0, max: 1, increment: 0.3, priority: 4
            }),

            props.bool('Boolean', genModel(true)),

            props.choice('Load State', genModel('InLoading'), {
                    "Loaded": "Loaded",
                    "Unloaded": "Unloaded",
                    "In Loading...": "InLoading",
                    "Error while Loading": "ErrorLoading"
                }),

            props.resource('Unit', genModel('core/units/light'), 'unit'),

            props.file('FilePath', genModel('C:/Program Files/Git/bin/git.exe')),

            props.directory('DirPath', genModel('C:/Program Files/Git')),
        ])
    ]);

    var PropertyEditorUsageApp = {
        view: function () {
            return m('div', {class :"panel-fill panel-flex-horizontal fullscreen", style:"overflow: auto;"}, [
                m('div', {class: "panel-fill"}, [
                    PropertyEditor.component(documentFromType)
                ]),
                m('div', {class: "panel-fill"}, [
                    PropertyEditor.component(compactNotationDocument)
                ])
            ]);
        }
    };

    // Initialize the application
    m.mount($('#mithril-root')[0], m.component(PropertyEditorUsageApp, {}));

    return {
        noAngular: true
    };
});
