Viewing and Selecting Hierarchies

Viewing a Hierarchy

You can use these methods to view the relationships between parents and children in a linked hierarchy.

• The Select From Scene dialog appears whenever you use a by-name selection method, such as choosing Edit menu Select By Name, by clicking Select By Name on the main toolbar, or by pressing the H key.

  To list objects hierarchically, turn on Display Subtree on the dialog. This indents children below their parent.

• The Hierarchy list at the left side of the Track View window displays all objects using indentation to express hierarchy. Child objects are displayed indented and below their parent. An added advantage of Track View is that you can control the view by collapsing and expanding branches of the hierarchy.

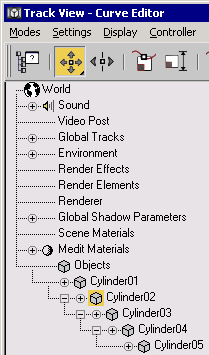

  Displaying the hierarchy in the Controller list

  A square icon with a plus indicates a collapsed branch under that object, while a minus indicates an expanded branch. Click a plus icon to expand a branch, or a minus icon to collapse it.

  Tip: In complex scenes, use Curve Editor to navigate quickly through the Track View. Simply select the object in the viewport, then right-click and choose Curve Editor. The Track View - Curve Editor will appear with the selected object at the top of the window.
• You can also use Schematic View to view hierarchies. In addition to showing you the structure, Schematic View contains tools for manipulating hierarchies.

Selecting Hierarchy Members: Ancestors and Descendants

Once you have selected one or more objects in a hierarchy, you can select its direct ancestor or descendant with the Page Up and Page Down keys.

• Page Up deselects the object and selects the object’s parent.
• Page Down deselects the object and selects all its immediate children, but not all descendants down the chain.

To select an object and all of its descendants, you can:

• Double-click the object in a viewport.
• Double-click the object icon in the Track View Hierarchy list.

Selecting Hierarchy Members: Siblings

Available in Customize User Interface are the actions Select Sibling - Next and Select Sibling - Previous, which appear in the Main UI group and All Commands category. You can assign them as hotkeys, toolbar buttons, and so on. We recommend assigning them to the arrow keys right-arrow and left-arrow, respectively; by default, those keys are not assigned keyboard shortcuts.

Using one of these commands replaces the current selection with one object only at the same hierarchical level. More precisely, a sibling is defined in this context as an object of equal generational distance from the selected object's nearest parent. All objects that fit this definition are siblings, so that in asymmetrical hierarchies, object A can be a sibling of object B, but the reverse is not necessarily the case.

Take, for example, the asymmetrical hierarchy of dummy helper objects shown below:

Hierarchy in Select From Scene dialog

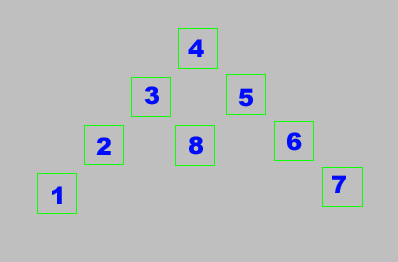

Hierarchy in viewport (numbers added)

From the viewport image, it might appear that Dummy objects 06, 08 and 02 are siblings of each other. However, the setup is actually more complicated, because Dummy objects 02 and 08 are direct children of Dummy03, while Dummy06 is a direct child of Dummy05, which has the same hierarchical level as Dummy03:

• Selecting Dummy06 and activating Select Sibling - Next results in Dummy08 being selected.
• Selecting Dummy06 and activating Select Sibling - Previous results in Dummy02 being selected.
• With Dummy02 selected, activating either Select Sibling command results in Dummy08 being selected, and the selection continues alternating for each subsequent invocation of either command. This is because 3ds Max looks only as far as the next branch above the selected object, resulting in Dummies 02 and 08 being siblings of Dummy06, but not vice versa.

Defining a sibling in this way has the practical advantage of letting you, for example, cycle through the selection of all finger links on one side of a character without the selection jumping to the other hand. But cycling through siblings with an arm object selected usually results in selecting the opposite arm object.

When using these commands, hidden and frozen objects can't be selected, but are considered part of the hierarchy when deciding what is and is not a sibling. Also, if a selection filter is active, siblings that don't meet the filter's criteria cannot be selected. In all such cases, ineligible siblings are skipped in favour of a further sibling, if any exists.

Customizing the Quad Menu

You can customize the quad menu so it displays commands to select children, or ancestors, or both. From the Customize menu, choose Customize User Interface. On the Quads tab, drag Select Ancestor or Select Children from the list of all commands to the quad menu. Then you can easily select children or parents with a right-click and then a click.
