Use the Alignment collection in the Prospector tree to access the alignments in a drawing.
As alignment objects are created, they are displayed as named alignments, organized by type, in one of two collections:
- The top-level Alignments collection. When alignments are in the top-level Alignments collection, they do not interact with parcels contained in Site collections. For more information, see About Alignment and Site Interaction.
- A project Site collection. An alignment object can exist in only one Site. When an alignment is in a Site collection, its geometry interacts with that of other objects in the site, such as parcels and feature lines.

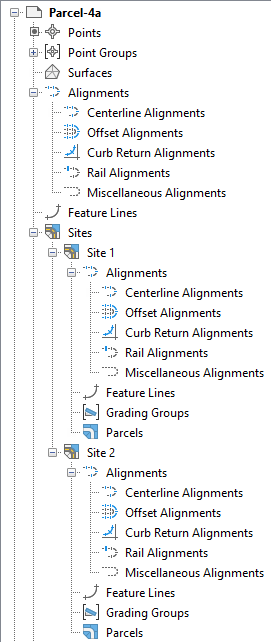

Sample alignments collections on the Toolspace Prospector tab
Expand an Alignment collection to view the names of the alignments. Select an Alignment collection to display a detailed tabular list of Alignment information at the bottom of the Prospector tab. For more information, see About the Toolspace Item View.
Right-click an individual alignment in the Alignment collection to:
- View and edit the alignment properties
- Move or copy an alignment to either another Site or the top-level Alignments collection
- Zoom or pan to the alignment
- Export the alignment to LandXML
Expand an individual alignment name to display superelevation views, cant views, profiles, profile views, and sample line groups that are associated with the alignment.
