About Road Manipulators
There are different sets of horizontal and vertical editing grips available for component roads, depending on your view position. Road manipulators for editing horizontal geometry are available in plan view. Manipulators for editing vertical geometry are available when you pitch the model and view the selected road profile.
To view a selected component road's horizontal or vertical manipulators, Show Road Geometry must be enabled.
Tip: You can also manually input values in the mini-toolbar that appears when you select a horizontal or vertical manipulator.

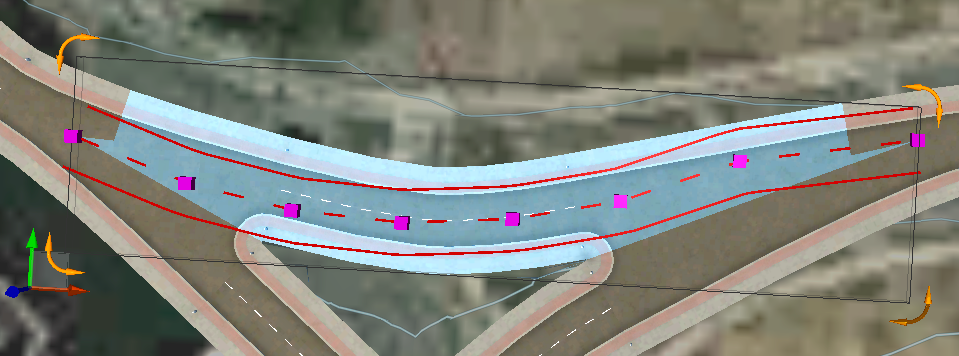

Horizontal manipulators
Horizontal manipulators are available when the model is in plan view.

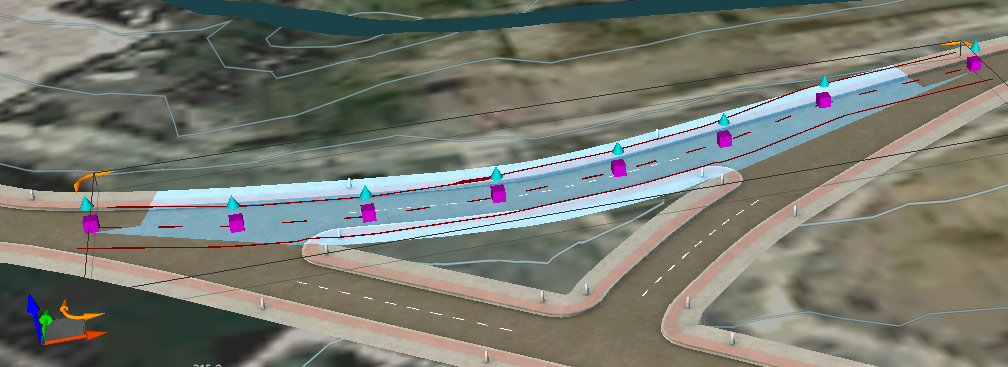

Vertical manipulators
Vertical manipulators are available when the model is pitched at an angle.

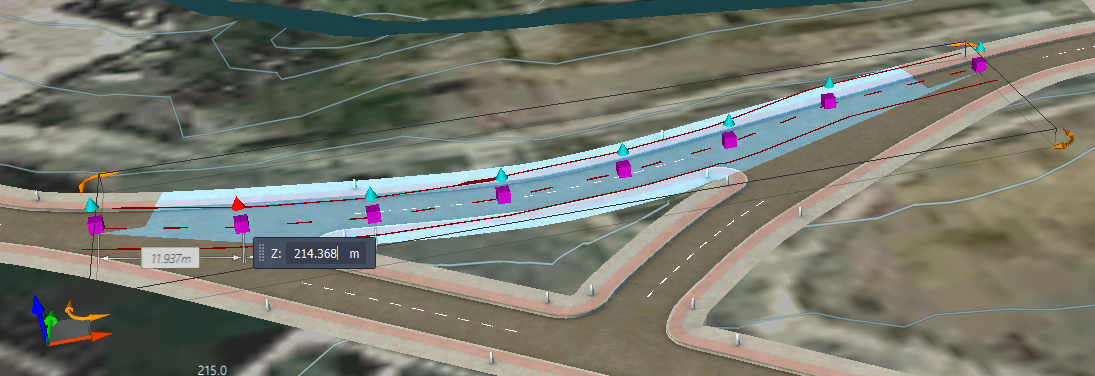

Adjust elevation
Select a vertical manipulator to adjust elevation.
