Browser Nodes

Introduction to Browser Nodes

A significant element of the Autodesk Inventor user interface is the browser. In a part file, this displays the names of features, sketches, work features and so on. In an assembly file, it also shows part or subassembly occurrences and assembly features. It provides a convenient and intuitive means of traversing and selecting objects and features in the model hierarchy. Typically, the status of each object or feature is indicated by a graphical icon at the appropriate tree node. The following figure represents a browser tree view of a model assembly.

The purpose of browser node customization

The Autodesk Inventor API allows customization of the browser pane. This can mean adding a new pane, perhaps containing an ActiveX control. This topic is covered in a separate overview - see the Browser pane overview.

The API also enables iteration of existing browser tree nodes and the addition of browser panes containing custom tree structures representing your own data, complete with your own graphical icons. For example, you can represent a file system, your organization's management hierarchy, or some discipline-specific data such as HVAC throughput.

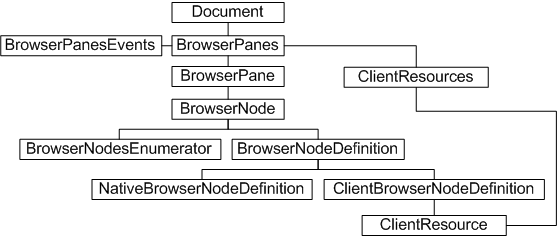

Browser API Object Model diagram

Iterating browser nodes through the API

The following code iterates through the browser model tree of an open part or assembly document, printing the node labels to the VBA debug screen (the "Immediate" window in VBA, if enabled). This code omits error checking for the sake of clarity and brevity. Always check that return values are of the expected type.

This code defines two routines. The first one obtains the top-level objects and then the second routine is called recursively (it repeatedly calls itself) to iterate through the entire browser tree structure. Add this code to an ApplicationProject code module in VBA.

First, obtain the Document object.

Private Sub QueryModelTree()
    Dim Doc As Document

    If (ThisApplication.Documents.Count <> 0) Then
        Set Doc = ThisApplication.ActiveDocument
    Else
        MsgBox "There are no open documents!"
        Exit Sub
    End If

Now obtain the top node for the browser pane of the model tab.

    Dim oTopNode As BrowserNode
    Set oTopNode = Doc.BrowserPanes("Model").TopNode

From the top node, call the routine named "recurse", which prints the node definition label and moves on to the next node, if any.

    Call recurse(oTopNode)
End Sub

The second routine calls itself for each node in the collection of browser nodes, printing the node definition label of each node.

Sub recurse(node As BrowserNode)
    If (node.Visible = True) Then
        Debug.Print node.BrowserNodeDefinition.Label
        Dim bn As BrowserNode
        For Each bn In node.BrowserNodes
            Call recurse(bn)
        Next
    End If
End Sub

For the assembly tree denoted by the first figure, this results in a report similar to the following example.

scissor.iam
Representations
View: None
None
Private...
Position
Origin
YZ Plane
XZ Plane
XY Plane
X Axis
Y Axis
Z Axis
Center Point?

�and so on.

Creating a custom pane and adding browser nodes

The preceding code simply iterated through an existing tree node hierarchy.

The following code adds a new pane tab and then adds several levels of tree nodes. This results in a new tab on the browser pane in the user interface, in addition to the standard model, library and representations tabs. Add this code to the ThisDocument module in VBA.

First, obtain the BrowserPanes collection for the current document. As noted in the object model diagram, new panes are added to this collection, and also this object provides access to the client node resources through which new icons may be added.

Sub AddNodes()

Dim oPanes As BrowserPanes
Set oPanes = ThisDocument.BrowserPanes

Dim oRscs As ClientNodeResources
Set oRscs = oPanes.ClientNodeResources

Create a standard Microsoft Windows IPictureDisp referencing an icon (.bmp) bitmap file. Change the file referenced here as appropriate - here the code references test.bmp. This is the icon that will be displayed at this node. Add the IPictureDisp to the client node resource. (If an invalid icon is supplied, the icon will default to the standard "Notepad" icon.)

Dim oIcon As IPictureDisp
Set oIcon = LoadPicture("c:\temp\test.bmp")

Dim oRsc As ClientNodeResource
Set oRsc = oRscs.Add("Test", 1, oIcon)

Before adding a new pane tab to the panes collection, define the top node the pane will contain. Pass this node when creating the new pane "My Pane" through the AddTreeBrowserPane method.

Dim oDef As BrowserNodeDefinition
Set oDef = oPanes.CreateBrowserNodeDefinition("Top Node", 3, oRsc)

Dim oPane As BrowserPane
Set oPane = oPanes.AddTreeBrowserPane("My Pane", "MyGUID", oDef)

Add two child nodes to the tree, labeled Node 2 and Node 3.

Dim oDef1 As BrowserNodeDefinition
Dim oNode1 As BrowserNode

Set oDef1 = oPanes.CreateBrowserNodeDefinition("Node2", 5, oRsc)
Set oNode1 = oPane.TopNode.AddChild(oDef1)

Dim oDef2 As BrowserNodeDefinition
Dim oNode2 As BrowserNode

Set oDef2 = oPanes.CreateBrowserNodeDefinition("Node3", 6, oRsc)
Set oNode1 = oPane.TopNode.AddChild(oDef2)

End Sub

The preceding routine results in a new pane and tree structure as follows (substituting your icon).

Browser nodes can be reordered. The BrowserPane.Reorder method allows one or more nodes to be repositioned within the tree hierarchy. (Note: this is not possible with the assembly pane.)

If a custom pane has browser nodes that are conceptually connected to objects (sketches, faces, constraints, and so on) in the model, this relationship can be created and maintained through the use of reference keys. The ClientBrowserNodeDefinition object supports the GetReferenceKey method.

By default, the browser pane is saved with the document. This means it is the responsibility of the application to either remove its browser UI, or reconnect and synchronize with the browser when the document is next present.

Events

The BrowserPanesEvents property of the BrowserPanes collection object returns the BrowserPanesEvents object, supporting browser node event notification. This allows applications to emulate Autodesk Inventor's behavior by reacting to user manipulation of the tree nodes. Events supported include node label editing, node activation, and object highlighting. These events are in addition to those supported by the BrowserPane object.

Summary

The browser customization API can be divided into two areas: adding an ActiveX control to a browser pane, or adding a hierarchical tree node structure to a browser pane. The latter allows an application to represent its data or constructs in a graphical manner already familiar to the user, complete with custom icons and labels. Events allow the application to be notified when the user selects a tree node.

Also consider

For complex user interactions, standard or custom ActiveX controls can be added to browser panes. The browser panes collection object acts as an ActiveX container.
