About Pattern plastic parts

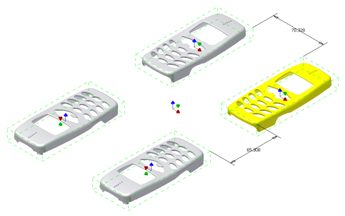

The Pattern feature enables you to design a multi-cavity mold and lay out plastic parts in a rectangular or circular pattern.

Different methods and options are available for you to implement your design:

Rectangular method

Provides a Base Pattern, X Balance, and Y Balance. Expand the dialog box to select Unique files.

Circular method

Provides a Base Pattern and Radial Pattern. Expand the dialog box to select Unique files.

Variable method

Provides the means to place each plastic part separately with the Rotate and Offset options.
