The Grid Selection dialog is displayed when viewing simulation results using the grid selected objects tool
on the
Tools Toolbar. The grid selected objects tool is used to display time varying results for more than one network object on the same grid.

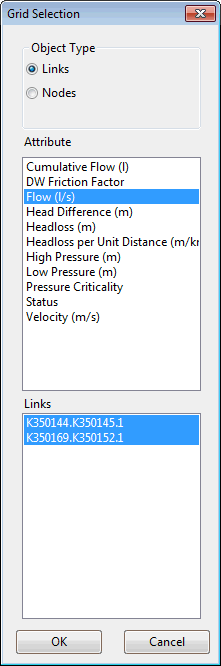

The following options are available on the dialog:
| Object Radio Buttons |
The Links and Nodes radio buttons allow the choice of which type of object is to be included in the grid. |
| Attribute List |
Lists parameters that can be included in the grid in accordance with the object type selected using the Object Radio Buttons above. If only one type of object is currently selected, the attribute list automatically contains the parameters for that type. Only one attribute may be selected for inclusion in the grid. |
| Object List |
Lists the selected objects of the type chosen using the Object Radio Buttons. If only one type of object is currently selected, the object list contains all selected objects. (Selected Customer Points are included in the Object List when Nodes are chosen as the object type.) Within the list the selection can be adjusted by clicking individual entries to deselect or reselect them. Only the objects selected (highlighted) will be included in the results grid. Please note that the object names displayed in the list are configurable from the Configure Display Rules dialog. |
