Minimum and maximum result values

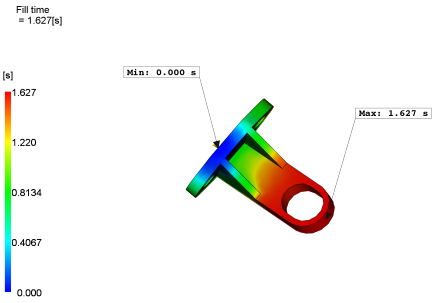

When interpreting the results, it is often valuable to identify the extreme values of the results and their location. The Show Min/Max tool locates the maximum and minimum data points on the geometry, and labels them with the result value.
You can also move the Min and Max labels for flexible usage.
This feature supports the following mesh types:
3D
Note: Show Min/Max does not support some result types. In addition, it is not supported for results that contain 1D beam elements, for example in runner systems. Place the runner system on a separate layer and hide it to enable Show Min/Max.
