Bubblers and Baffles

The construction of bubblers and baffles has been greatly simplified.

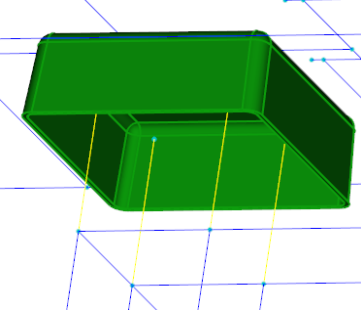

With the new workflow, construct a single channel curve to represent the either the bubbler or the baffle. Assign the appropriate property to the curve, Bubbler or Baffle ( Geometry tab > Properties panel > Change).

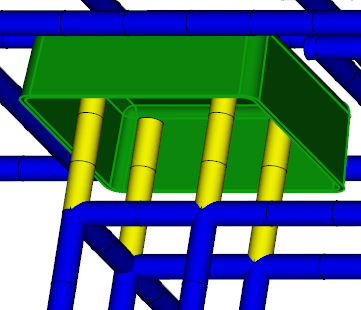

Upon meshing, the appropriate element is modeled with the correct coolant flow simulated.

You are no longer required to create a curve for the upward path and a second curve for the downward path. Even with the bubbler or baffle being modeled as a single element, the analysis can proceed.
