Applies to 2025.1 Update and later




*OSID: STL ID output

Enables writing the STL ID results to mesh preview and transient results files

*OSID

This card has no parameters.

The STL ID has absolute value 1 for the first STL, absolute value 2 for the second STL, and so on. Unsupported regions get negative values. If the result has a substrate, it gets the number 0.

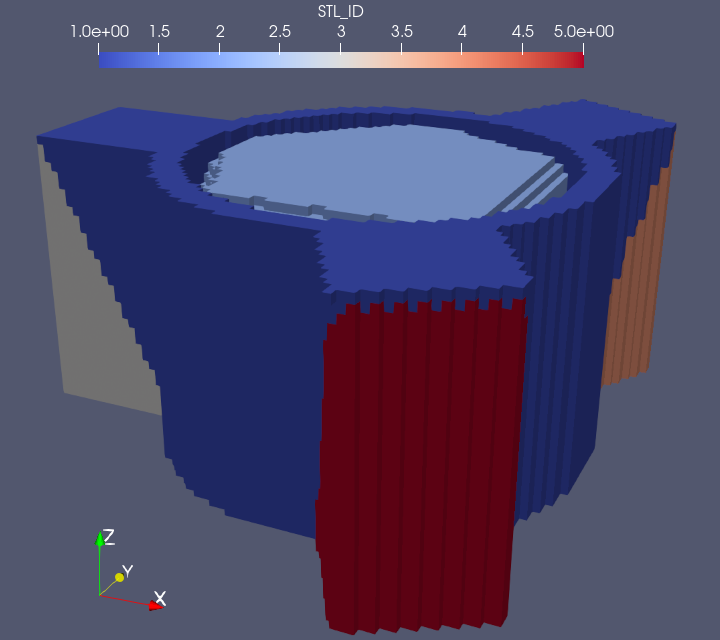

STL ID visualized in ParaView
