Chessboard Hatching - Demonstration Buildstyle

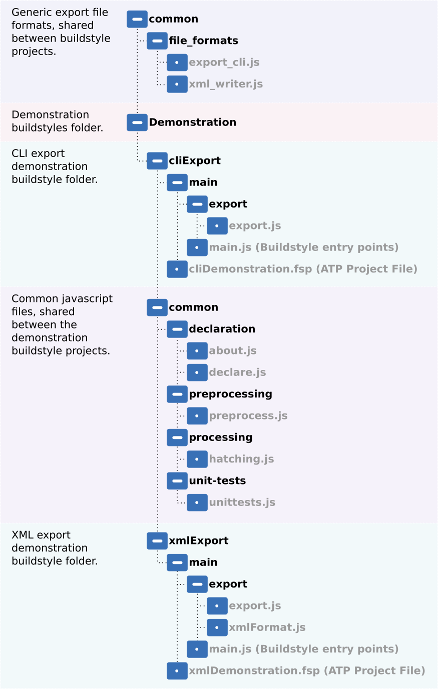

Preprocessing

At the preprocessing step, the buildstyle can change the model data, that was passed by the host application. For example, corrections of the geometry data can be done during preprocessing.

Processing

At this step, each slice of the input geometry will be processed. The processing may include:

• Generation of hatching data (generation of the toolpath)
• Calculating layer specific flags that may be used later by the exporter

Buildstyle Information

The buildstyle information structure is filled at declaration/about.js. This information can be queried by the host application.

exports.about = function(Info, runTests, doLogging)
{
  var buildStyleName = 'Autodesk Demonstration Buildstyle';
  var companyName = 'Autodesk';
  var copyright = 'Copyright (c) 2016';
  var legalNotice = 'All rights reserved.';
  Info.addCommentLine(buildStyleName);
  Info.addCommentLine(companyName);
  Info.addCommentLine(copyright);
  Info.addCommentLine(legalNotice);
}

Machine Definition

Sets the target machine name (declare/declare.js):

exports.declareMachine = function(Machine, runTests, doLogging)
{
  var buildStyleName = 'Autodesk Demonstration Buildstyle';
  var machineName = 'Generic Open Machine';
  Machine.setBuildstyleName(buildStyleName);
  Machine.setMachineName(machineName);
}

Material Definition

Define names for compatible materials (declare/declare.js):

exports.declareMachine = function(Machine, runTests, doLogging)
{
  var buildStyleName = 'Autodesk Demonstration Buildstyle';
  var machineName = 'Generic Open Machine';
  Machine.setBuildstyleName(buildStyleName);
  Machine.setMachineName(machineName);
  var materialName = 'Demonstration Material';
  Machine.addMaterialName(materialName);
  Machine.addLayerThicknessToMaterial(materialName, 10);
  Machine.addLayerThicknessToMaterial(materialName, 15);
  Machine.addLayerThicknessToMaterial(materialName, 20);
  Machine.addLayerThicknessToMaterial(materialName, 25);
  Machine.addLayerThicknessToMaterial(materialName, 30);
  Machine.addLayerThicknessToMaterial(materialName, 35);
  Machine.addLayerThicknessToMaterial(materialName, 40);
  Machine.addLayerThicknessToMaterial(materialName, 45);
  Machine.addLayerThicknessToMaterial(materialName, 50);
  Machine.addLayerThicknessToMaterial(materialName, 55);
  Machine.addLayerThicknessToMaterial(materialName, 60);
  Machine.addLayerThicknessToMaterial(materialName, 65);
  Machine.addLayerThicknessToMaterial(materialName, 70);
  Machine.addLayerThicknessToMaterial(materialName, 75);
  Machine.addLayerThicknessToMaterial(materialName, 80);
  Machine.addLayerThicknessToMaterial(materialName, 85);
  Machine.addLayerThicknessToMaterial(materialName, 90);
  Machine.addLayerThicknessToMaterial(materialName, 95);
  Machine.addLayerThicknessToMaterial(materialName, 100);
}

Export Definition

Depending on buildstyle parameters, one buildstyle may have different export filters (that is, the two demonstration buildstyles could be merged to one buildstyle with two different export filters for XML and CLI files) (main.js).

exports.declareExportFilter = function(exportFilter)
{
  exportFilter.declareFilter('CLI',
                             'Cli Export',
                             'cli',
                             CLI.version.major,
                             CLI.version.minor,
                             EXPORT_FILTER.nExportFilterMultifile);
};

Parameter and Attribute Declaration

The demonstration buildstyle declares buildstyle parameters for the host application, but no internal attributes.

exports.declareParameters = function(buildParamDecl, runTests, doLogging)
{
  buildParamDecl.declareParameterGroup('hatch_attributes', 'Hatch Attributes');
  buildParamDecl.declareParameterReal('hatch_attributes', 'Beam Compensation',
  ˓→'Beam Compensation', 0.001, 2.0, 0.001);
  buildParamDecl.declareParameterReal('hatch_attributes', 'Hatch Desity', 'Hatch
  ˓→Density', 0.001, 2.0, 0.02);
  buildParamDecl.declareParameterReal('hatch_attributes', 'Hatch Border Distance',
  ˓→'Hatch Border Distance', 0.001, 2.0, 0.02);
  buildParamDecl.declareParameterInt('hatch_attributes', 'Hatch Offset Border Count
  ˓→', 'Border Offset Hatch Count', 0, 10, 2);
  buildParamDecl.declareParameterReal('hatch_attributes', 'Hatch Offset Border
  ˓→Distance', 'Border Offset Hatch Distance', 0.001, 2.0, 0.02);
  buildParamDecl.declareParameterReal('hatch_attributes', 'Chess Board Size',
  ˓→'Size of a chess board cell', 0.001, 50.0, 1.0);
  buildParamDecl.declareParameterGroup('machine_attributes', 'Machine Attributes');
  buildParamDecl.declareParameterReal('machine_attributes', 'Recoating Time',
  ˓→'Recoating Time in ms', 0.1, 50000.0, 100.0);
}
/**
 * Build attribute declaration.
 * While calculating the exposure data these attributes can be set in
 * the exposure data. On export these attributes are available for export.
 *
 * @param Attrib bsBuildAttribute instance.
 * @param runTests Unit test flags.
 * @param doLogging Logging flag.
 */
exports.declareBuildAttributes = function(buildAttrib, runTests, doLogging)
{
}

Preprocessing

There’s no preprocessing being done for models at the demonstration buildstyle. The preprocessLayerStack function at preprocessing/preprocess.js just copies the source models without modification to the target models. This is OK for demonstration. The better and faster way would be to comment out the preprocessLayerStack function.

exports.preprocessLayerStack = function(sourceModelData,
                                        targetModelData,
                                        progress,
                                        runTests,
                                        doLogging)
{
  var sourceModelCount = sourceModelData.getModelCount();
  for( var smIdx=0; smIdx < sourceModelCount; smIdx++){
    var curModel = sourceModelData.getModel(smIdx);
				/**
				 * At this place, model data (i.e. islands of model layers) can
     * be changed.
     */
    targetModelData.addModelCopy(curModel);
  }
}

There's also no preprocessing done before hatch creation:

exports.prepareModelExposure = function(model,
                                        attrDefaultPrinterSettings,
                                        runTests,
                                        doLogging)
{
}

Processing

This is the most interesting and complex part of the demonstration buildstyle. The 2D shape data of every layer is used here to create hatch patterns. The density of these hatch patterns is so high, that the final result is a solid area, completely filled with building material.

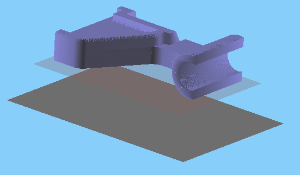

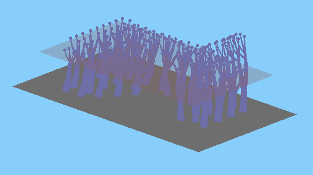

Here's how the processing steps with the following part and fitting support structures will look:

Calculation Start

It starts at processing/hatching.js with makeExposureLayer:

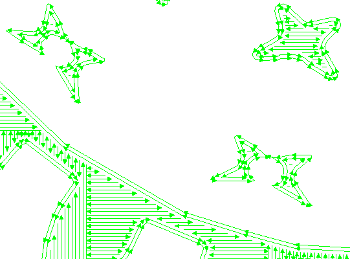

For all layers the makeExposureLayer function iterates over all islands (closed 2D areas) and all polylines (not necessarily closed polygon lines). The polyline hatching is rather simple:

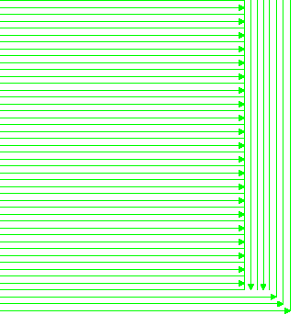

Processing	Result

Calculation Start

It starts at processing/hatching.js with makeExposureLayer:

For all layers the makeExposureLayer function iterates over all islands (closed 2D areas) and all polylines (not necessarily closed polygon lines). The polyline hatching is rather simple:

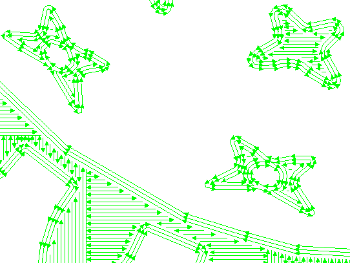

Processing	Result

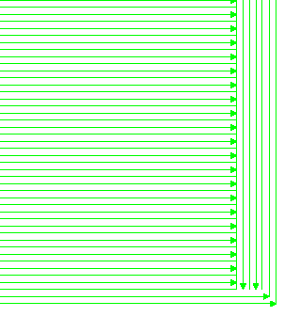

Island Processing

The island processing without creating a beam compensated border:

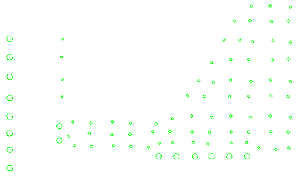

Processing	Result

Full Processing

Processing
Result

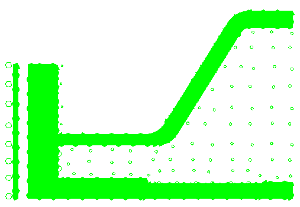

Before/After results on another part
