Edit Buffer Properties

Edit your Buffer's capacity and capacity thresholds.

To access Buffer Properties:

1. Select a Buffer in your process model.
2. Right click and select Show Properties from the context menu.

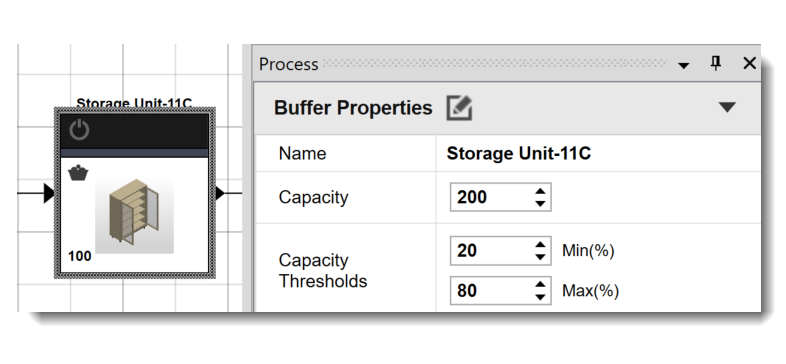

3. Edit properties from the Buffer Properties dialog.

Editing your Buffer Properties

Name: Buffer name.

Capacity: Indicates the number of items the buffer can hold.

Min (%) and Max (%) Capacity Thresholds: Trigger utilization alarms if the buffer is being under used, or is at or near capacity.
