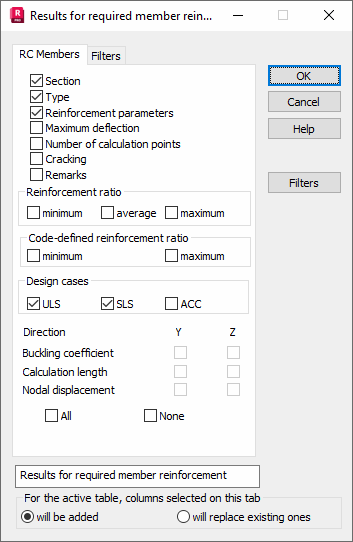

Select the RC members tab in the Columns dialog (Theoretical (required) reinforcement of bars - RC columns, beams). The following dialog displays.
The following quantities can be selected for a table of results of theoretical (required) reinforcement for structure bars.
The following quantities can be selected for a table of results of theoretical (required) reinforcement for structure bars.
- Section - Name of the bar section.
- Type - Bar type.
- Reinforcement parameters - Reinforcement parameters defined for a bar.
- Maximum deflection - Value of the maximum deflection for a bar.
- Number of calculation points - Number of points where the theoretical (required) reinforcement area is calculated.
- Cracking - Information concerning cracking in an RC bar.
- Remarks - An additional column for commentaries concerning calculations of reinforcement area in particular bar cross-sections.
- Reinforcement ratio
- Minimum reinforcement ratio determined during calculations of the required reinforcement area for a bar.
- Average reinforcement ratio determined during calculations of the required reinforcement area for a bar.
- Maximum reinforcement ratio resulting form the assumed real (provided) reinforcement distribution for a bar.
- Code-defined reinforcement ratio
- Minimum reinforcement ratio defined in a given code.
- Maximum reinforcement ratio defined in a given code.
- Design cases
- ULS - in the ultimate limit state.
- SLS - in the serviceability limit state.
- ACC - in the accidental state.
- Buckling coefficient - Buckling coefficient for a bar in Y and Z directions.
- Calculation length - Calculation length for a bar in Y and Z directions.
- Node displacement - Node displacements for a bar in Y and Z directions.
