Element Nodes

Node Name	Notes	Graph Example
Element.AreJoined	Check whether the two elements are joined.

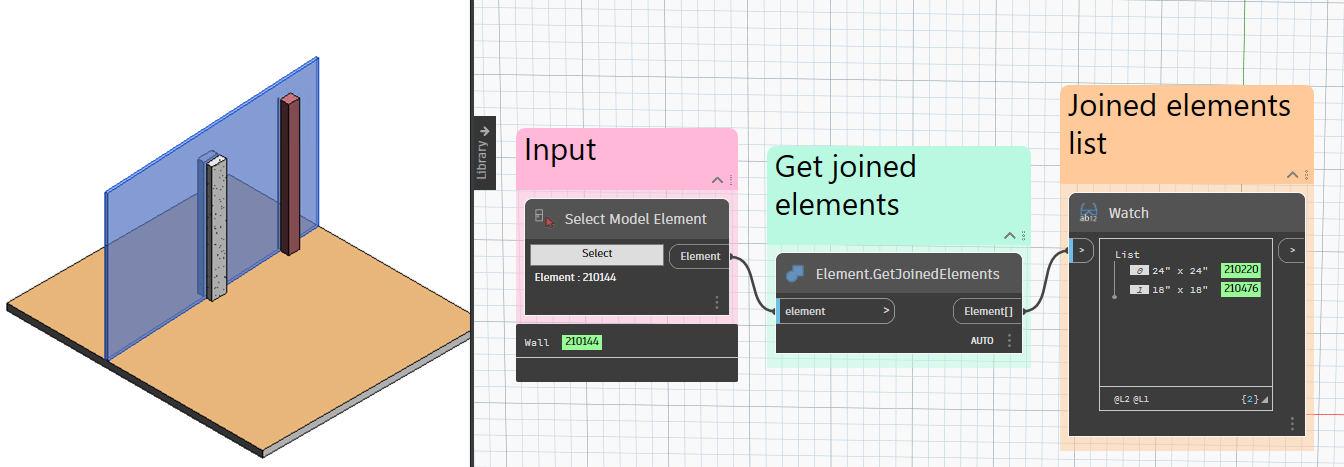

Element.GetJoinedElements	Get joined elements to select them.
Element.GetHostedElements	Collect all the content that is hosted to the element.
IncludeOpenings	Get all hosted elements, such as openings, windows, and doors.

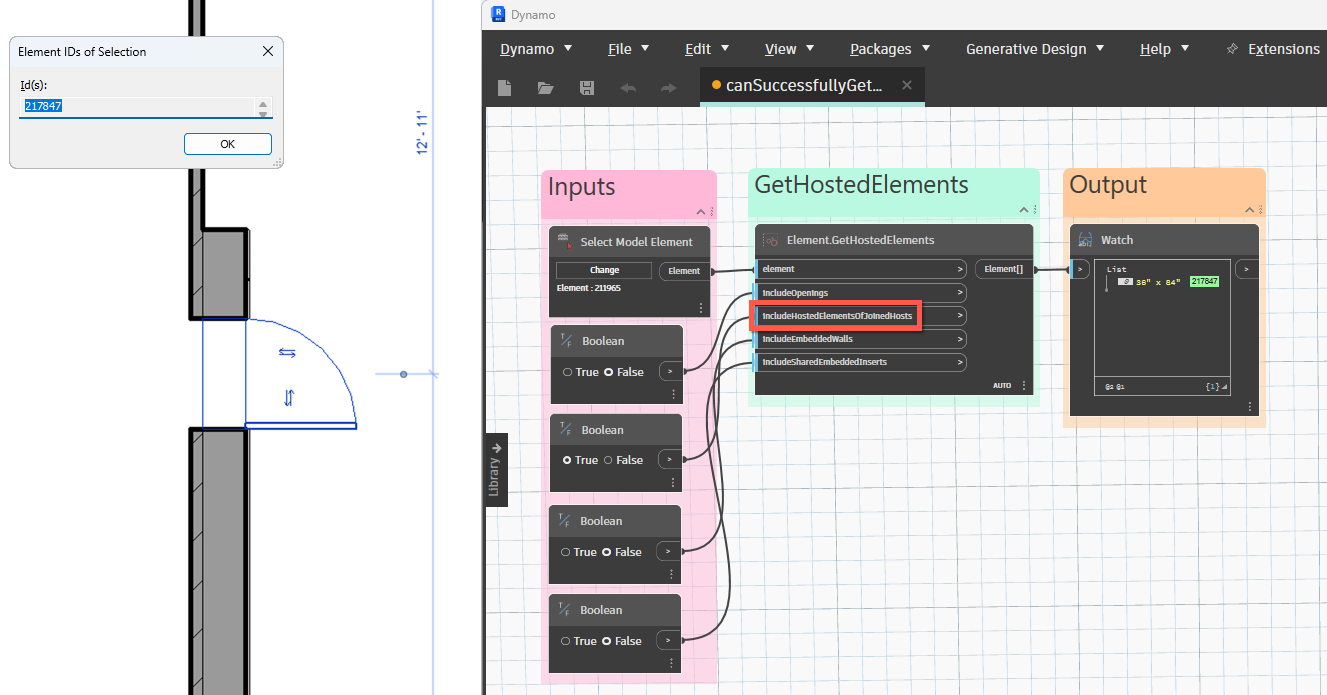

IncludeShadows	Use this node when two walls are joined (by Modify->Geometry->Join), and a door is placed on one of the joined walls. If includeShadow is set to true, then Revit returns the door element ID.

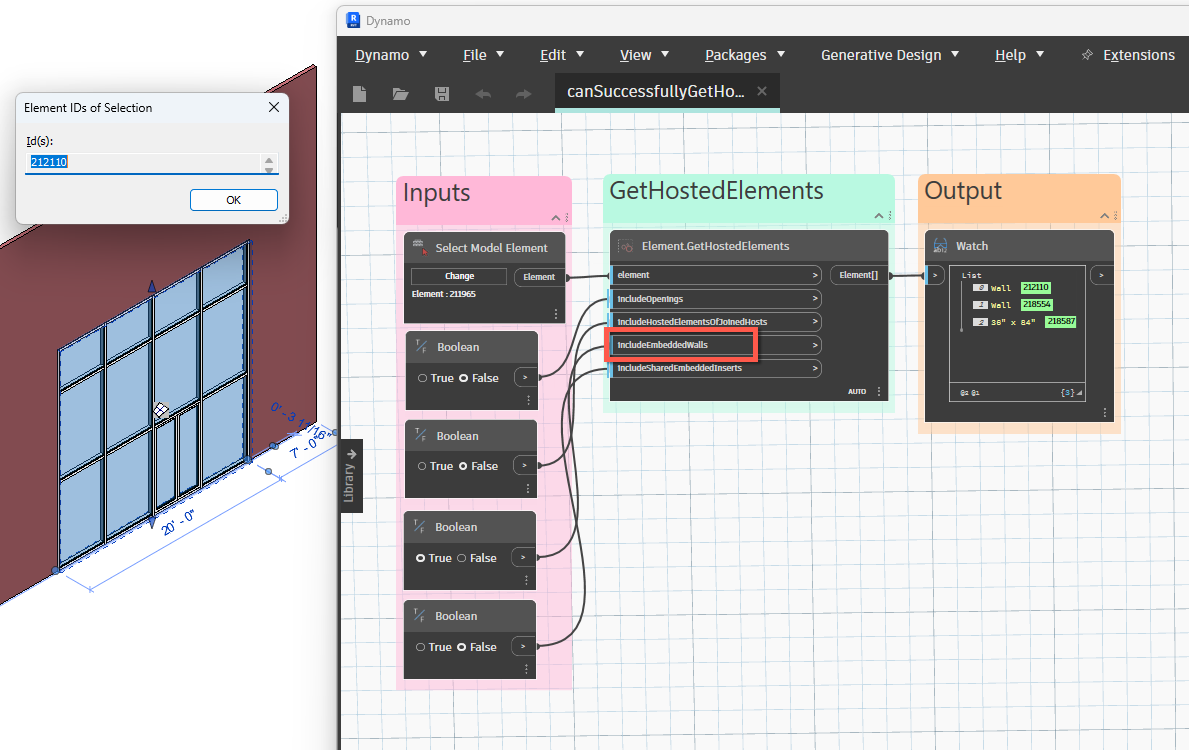

IncludeEmbeddedWalls	Get the entire embedded wall or curtain wall.

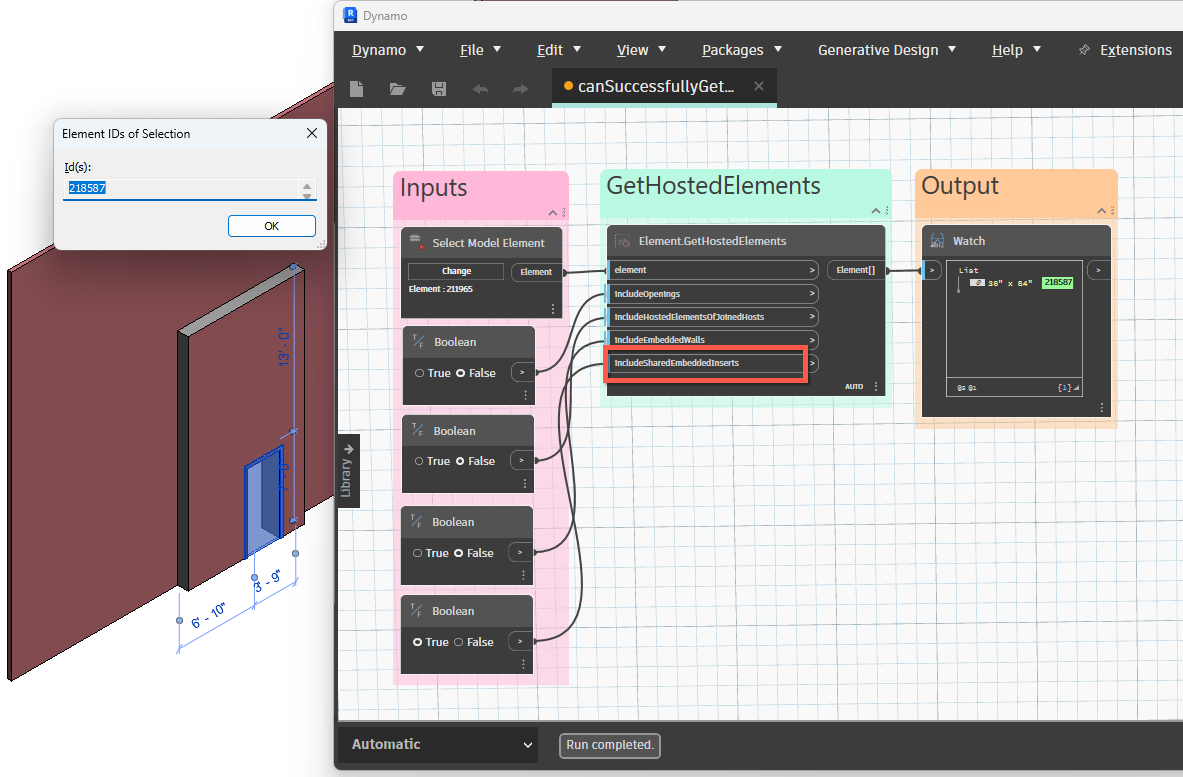

IncludeSharedEmbeddedInserts	Get the door, window, or other inserts that are hosted in the embedded wall.

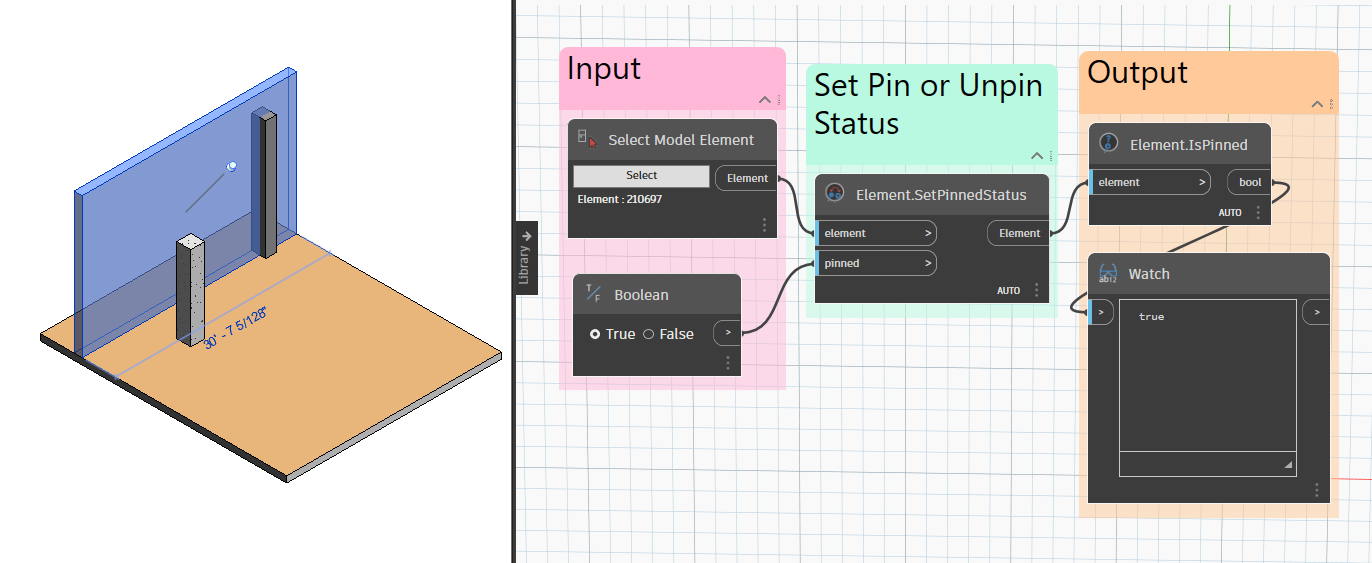

Element.SetPinnedStatus	Set pinned status: True to pin, False to unpin.

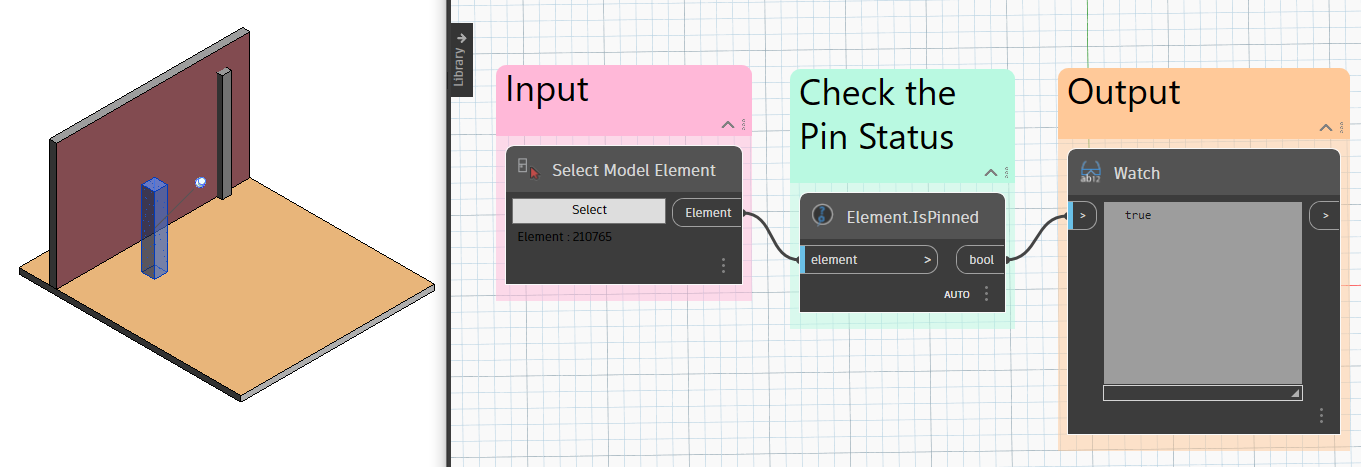

Element.IsPinned	Query whether an element is pinned.

See Details for more information on the following nodes.

Node Name	Notes	Graph Example

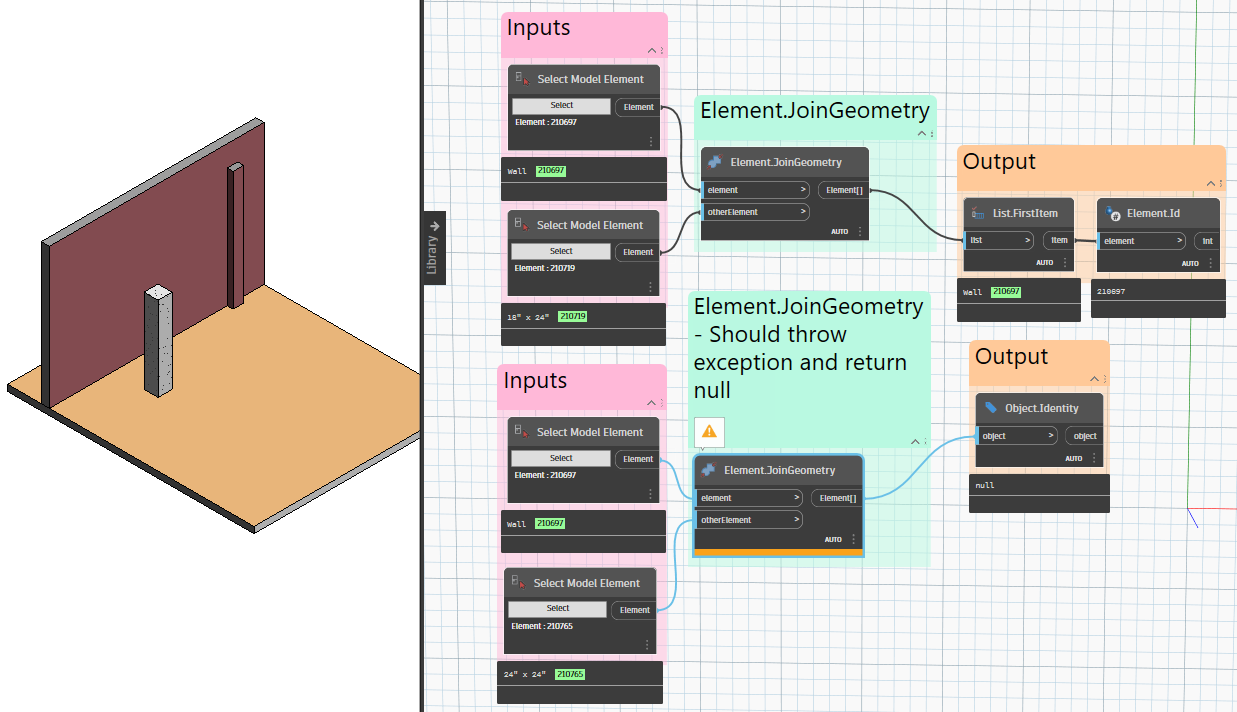

Element.JoinGeometry	Join two intersecting geometrical elements.

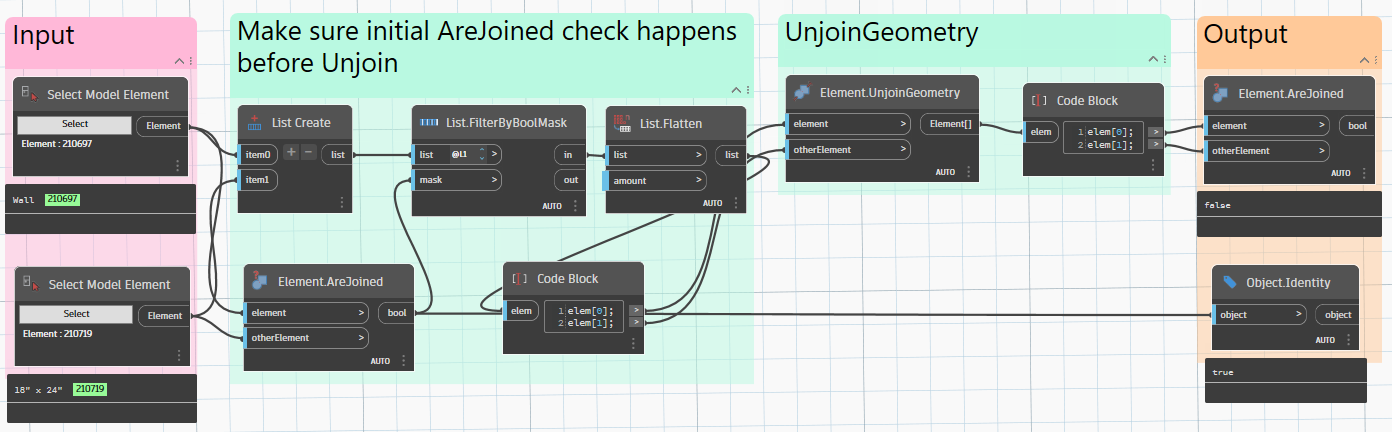

Element.UnjoinGeometry	Unjoin two intersecting geometrical elements. Feed in two elements. If they are joined, then unjoin them.

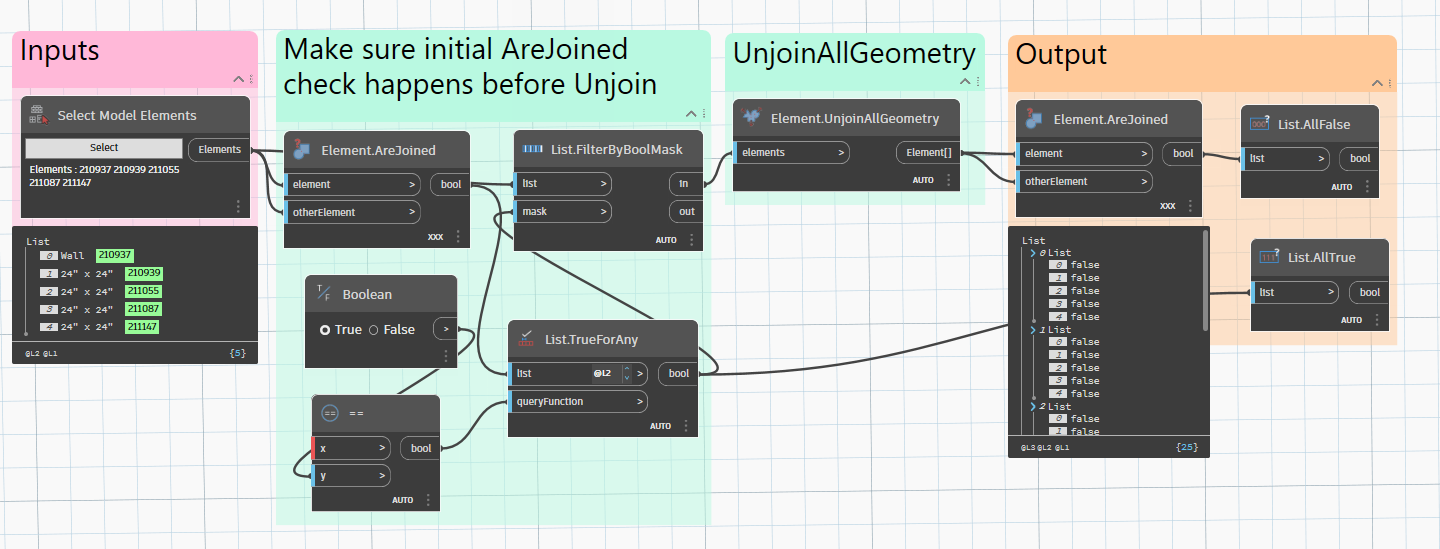

Element.UnjoinAllGeometry	Unjoin a list of intersecting geometrical elements. Feed in a list of elements. If they are joined, then unjoin all of them.

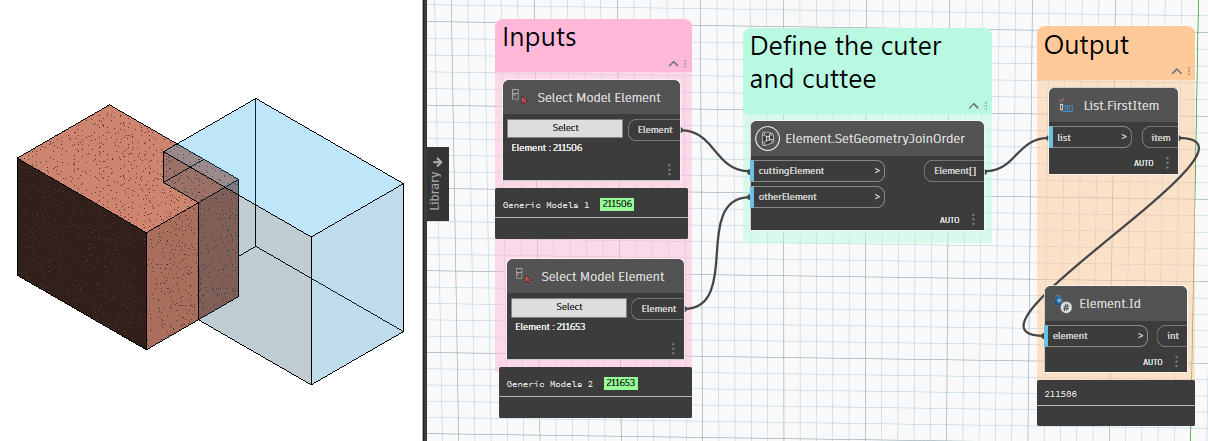

Element.SetGeometryJoinOrder	Switch the join order of geometry. Feed in two elements (or a paired list) and switch their join order. Note: This node does not apply on the multiple wall joining order.

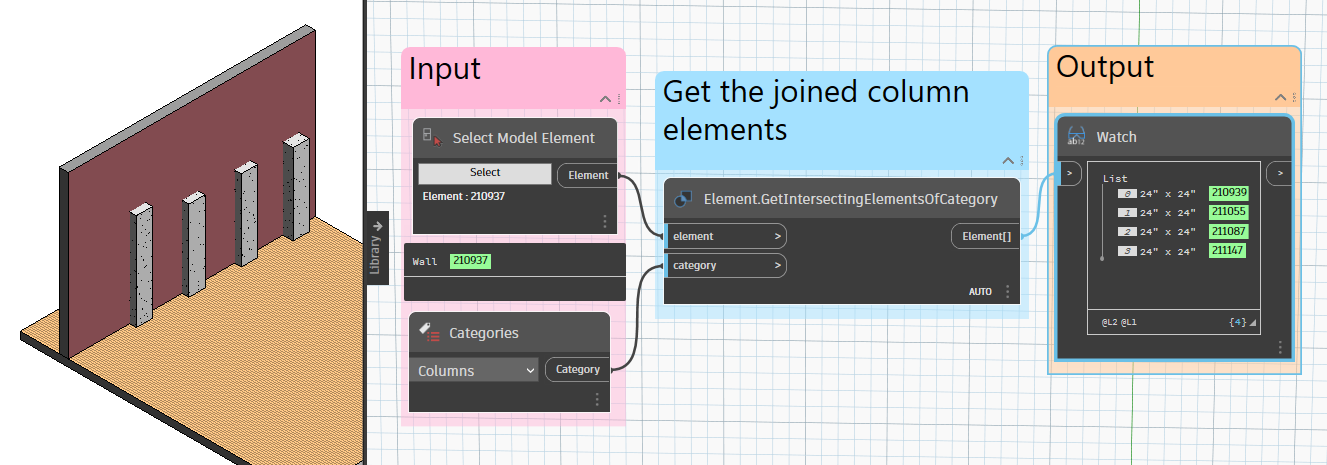

Element.GetIntersectingElementsOfCategory	Take an element and collect all intersecting elements of a chosen category.

See Details for more information on the following nodes.

See Details for more information on the following nodes.
