Structural Analytical to Physical Model Automation (What's New in 2023.1)

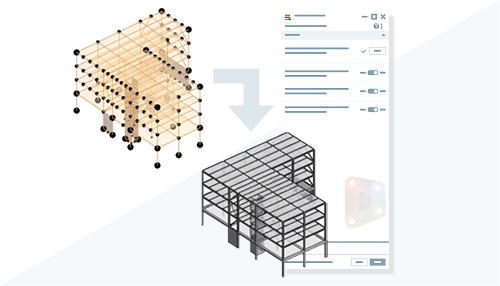

Automatically create a connected physical model from the analytical one, using on-demand, configurable rules.



Automate the creation, element connection, and update of the physical model using the analytical model as context.

In the Analyze tab Structural Analytical Model panel, click (Analytical Automation).

Using the analytical model as context, generate the physical elements and connect them. Once the physical model is built, it can be updated based on analytical model changes.

This feature is described on the product road map.

See Analytical to Physical Automation.
