When attaching columns to roofs, floors, or ceilings, you can specify the Attachment Style as Cut Target with different attachment justifications.
The following examples illustrate the settings in different combinations.

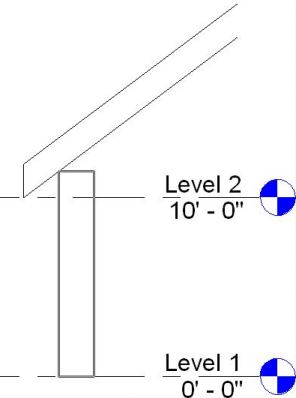

- Attachment Style: Cut Target
Attachment Justification: Minimum Intersection

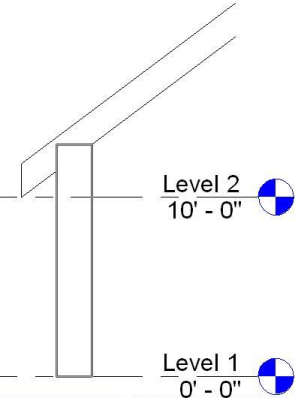

- Attachment Style: Cut Target
Attachment Justification: Maximum Intersection

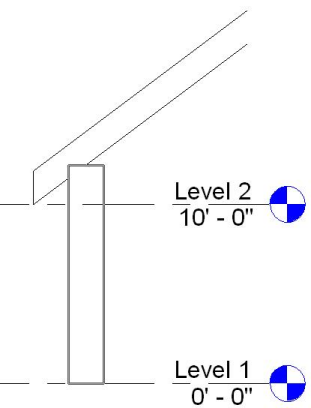

- Attachment Style: Cut Target
Attachment Justification: Minimum Intersection
Offset from Attachment: On

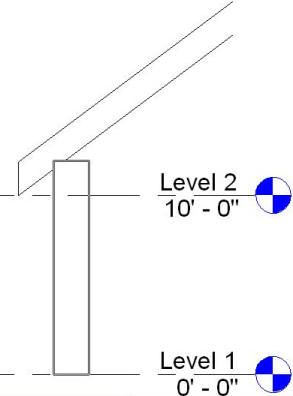

- Attachment Style: Cut Target
Attachment Justification: Intersect Column Midline
