You can modify a wall type to define the structure of vertically compound walls using layers or regions.
Share
Compound Walls
Topics in this section
- About Compound Walls

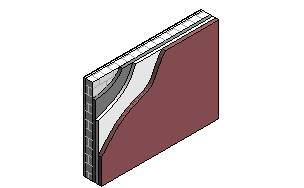

Just as roofs, floors, and ceilings can consist of multiple horizontal layers, walls can consist of more than one vertical layer or region. You can use various tools to modify the structure of vertically compound walls. You can add, delete, or modify individual layers and regions, or add sweeps and reveals to customize the wall type. - Open the Edit Assembly Dialog for Compound Walls
To modify layers and regions in compound walls, open the Edit Assembly dialog by editing the wall type. - Sample Height for a Wall Type
When you edit the structure of a wall type, you can change the sample height. - Modify Compound Walls
When editing the structure of a vertically compound wall, use the Modify tool on the Edit Assembly dialog to perform several functions, including changing the wall thickness, extending layers, and constraining a region. - Video: Modify the Vertical Structure of Walls
Create a complex wall by adding sweeps, reveals, and making modifications to the layers in a wall's structure. - Split Regions for Compound Walls
When editing the structure of a vertically compound wall, use the Split Region tool to divide a wall layer (or region) horizontally or vertically into new regions. When you split a region, the new regions assume the same material as the original. - Merge Regions for Compound Walls
When editing the structure of a vertically compound wall, use the Merge Regions tool to merge wall regions (or layers) together horizontally or vertically into new regions. Highlight a border between regions and click to merge them. - Assign Layers for Compound Walls
When editing the structure of a compound wall, use the Assign Layers tool to assign a row in the Edit Assembly dialog to a layer or region in the preview pane. The layer then assumes the number, material, and function specified for the row. - Rules for Assigning Layers for Compound Walls
When editing the structure of a compound wall, use the Assign Layers tool to assign a row in the Edit Assembly dialog to a layer or region in the preview pane, and follow these guidelines. - Flip the Orientation of Compound Walls
The orientation (inside/outside face) of a wall can be changed as it is placed or after it is placed. The wall will flip around the location line of the wall. - Add a Sweep to a Wall Type
When editing the structure of a vertically compound wall, use the Sweeps tool to control placement and display of sweeps. - Add a Reveal to a Wall Type
When editing the structure of a vertically compound wall, use the Reveal tool to control placement and display of reveals.
