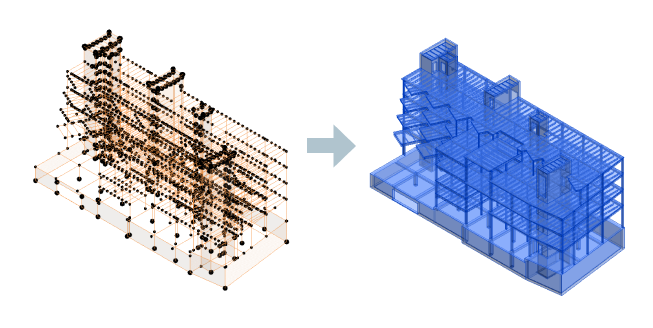

Generate the structural analytical model for selected structural physical elements. The resulting analytical model is better connected and aligned to key horizontal and vertical references generated based on the physical model.
To automate the analytical model creation using the physical model as context:
- In the Analyze tab
Structural Analytical Model panel, click
(Analytical Automation).
- From the drop-down list, select
(Run Physical to Analytical for Buildings).
- Click
(Run).
The analytical model is created.
Note: The automation tool only preselects the supported physical elements without any analytical elements already associated.
- You can adjust the selection.
- You can still use Dynamo Player to run the automation:
- In the Analyze tab Structural Analytical Model panel, click
(Analytical Automation).
- From the drop-down list, select
(Automation Customization).
- In the Analyze tab
