This tool examines the mechanical systems that you create in a project to verify that each system is assigned to a user-defined system, and properly connected.
To verify the connections for duct systems in the model, click Analyze tab
Check Systems panel
Check Duct Systems.
- The system is not well connected.
A system is considered not well connected when elements in the system are not connected into a single physical network. For example, a system with one or more air terminals not connected in a single network of duct is considered not well connected.
- There is a flow/demand configuration mismatch.
- There is a flow direction mismatch.

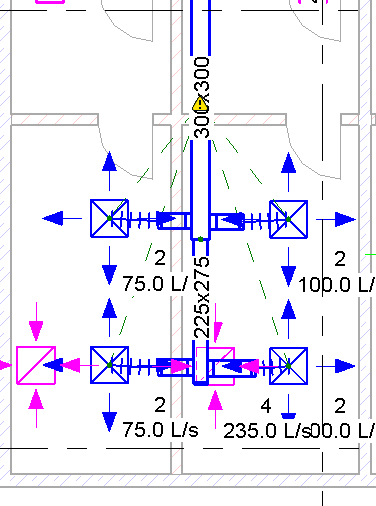

Click a warning marker to display a related warning message. In the related warning message, click the arrow buttons as needed to scroll the list of warning messages. Click
Expand Warning Dialog to view the details of the warning message.
