Thresholds

Users can now create and visualize Thresholds for individual streams in the Streams panel.

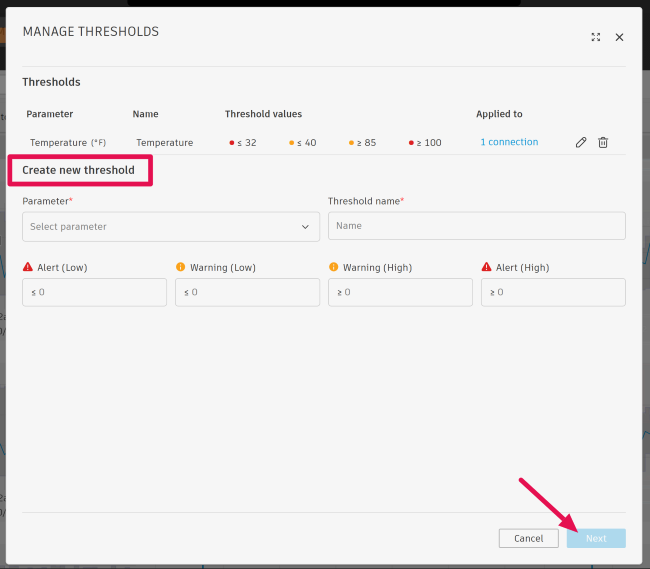

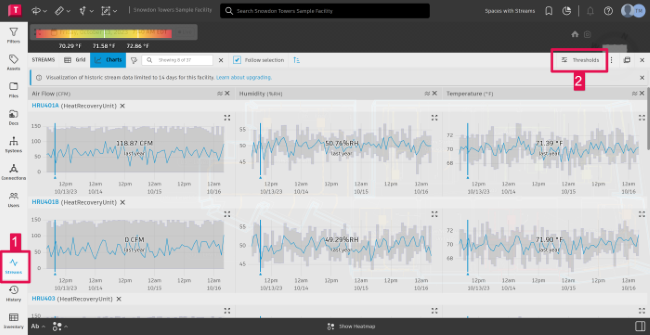

To begin, select the Streams panel. Then click on Thresholds and then Create Thresholds.

Select which Parameter the Threshold should be applied to, then a name for the Threshold and settings for:

• Warning (High)
• Warning (Low)
• Alert (High)
• Alert (Low)

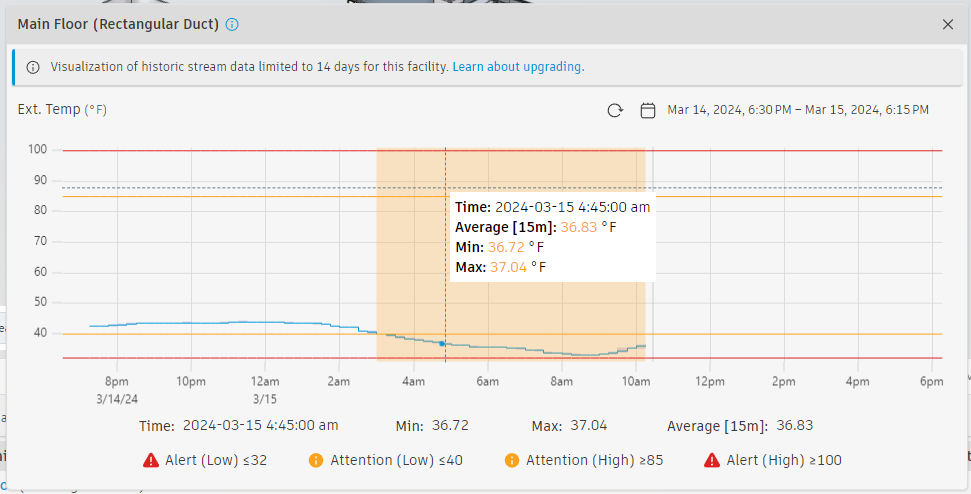

Attention settings will be shown in yellow within the graph, alerts will show in red.

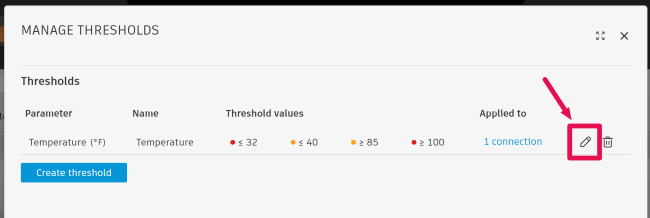

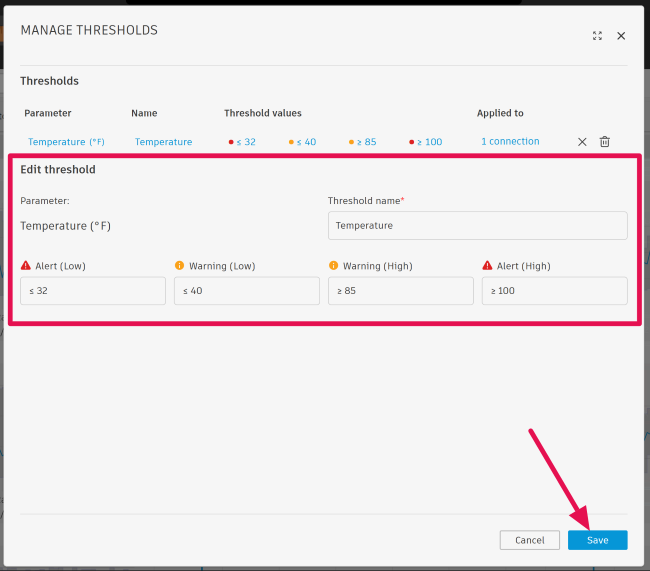

To edit thresholds, select the Edit thresholds icon. Selecting the pencil icon for any existing threshold takes you to edit mode. Make any required changes and then click Save.
