Interpolate Point

Point: Interpolate

Add a point that is located at an interpolated distance between a starting point and a destination point.

Properties

Specify the following parameters in the Properties panel.

Point
Point Number	Specifies the point number. You can change the automatically generated Point Number value.
Point Codes	Specifies the codes assigned to the point.
Point Geometry Type
Type	Specifies the point type: Angle and Delta X Angle and Delta Y Angle and Distance Delta X and Delta Y Delta X on Surface Interpolate Point Slope and Delta X Slope and Delta Y Slope to Surface
Point Geometry Properties
From Point	Specifies the point to which the other geometry property values are relative.
Destination Point	Specifies the destination point.
Interpolate Parameter	Specifies the interpolated distance between the From Point and Destination Point at which to draw the point. Click [...] to open the Expression Editor, where you can enter or calculate a value.
Auto Add Link
Auto Link To From Point	Draws a link from the point specified in the From Point row to the current point.
Name	Specifies the name of the link.
Codes	Specifies the codes assigned to the link.
Miscellaneous
Comment	Indicates notes about the point. Comments can be displayed in the Preview panel.

Examples

To see examples of how this geometry element is used, open the following Sample PKT file:

Point Interpolate Point Example.pkt

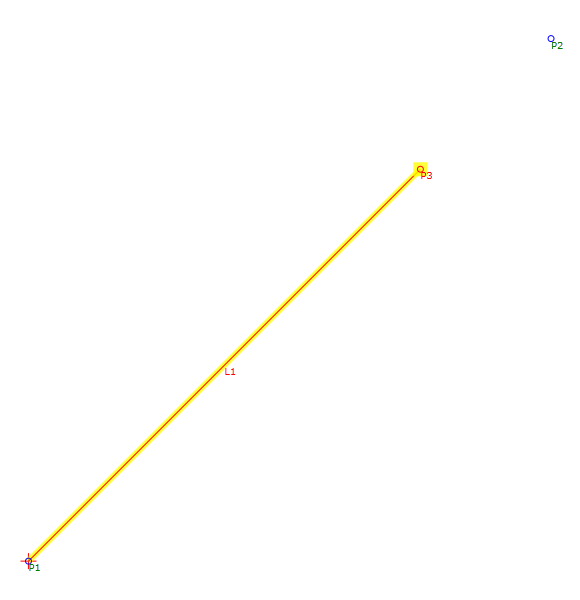

In the example, P3 is 75% of the distance between points P1 and P2.

To review the parameters, select Interpolate Point in the Flowchart, and then see the Point Geometry Properties section of the Properties panel.
