Mesh the CAD model

In this step, you create a Dual Domain mesh on the imported CAD model.

1. Click (Home tab > Create panel > Mesh) to display the mesh tab.



2. Click (Mesh > Mesh > Generate Mesh) to display the generate mesh panel.

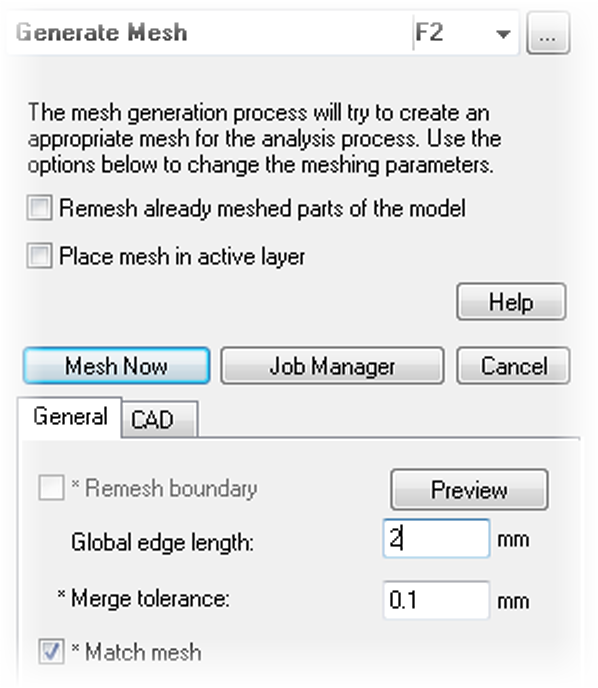

3. Enter 2 (mm) as the Global edge length , then click Mesh Now.

4. When the mesh is finished, click Logs at the bottom of the Synergy window to close the Logs Panel.

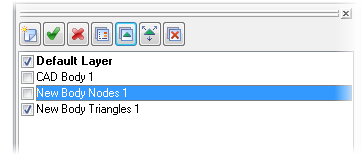

5. Deselect the New Body Nodes 1 layer in the layers panel.
