Repair the mesh

In this step, you use an automated method to clean up the mesh.

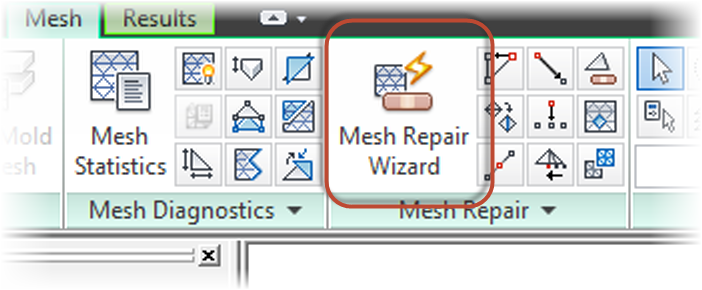

1. Click Mesh > Mesh Repair > Mesh Repair Wizard to open the wizard's dialog box.



2. Click Next seven times to advance through the wizard pages until you get to the Aspect Ratio page.

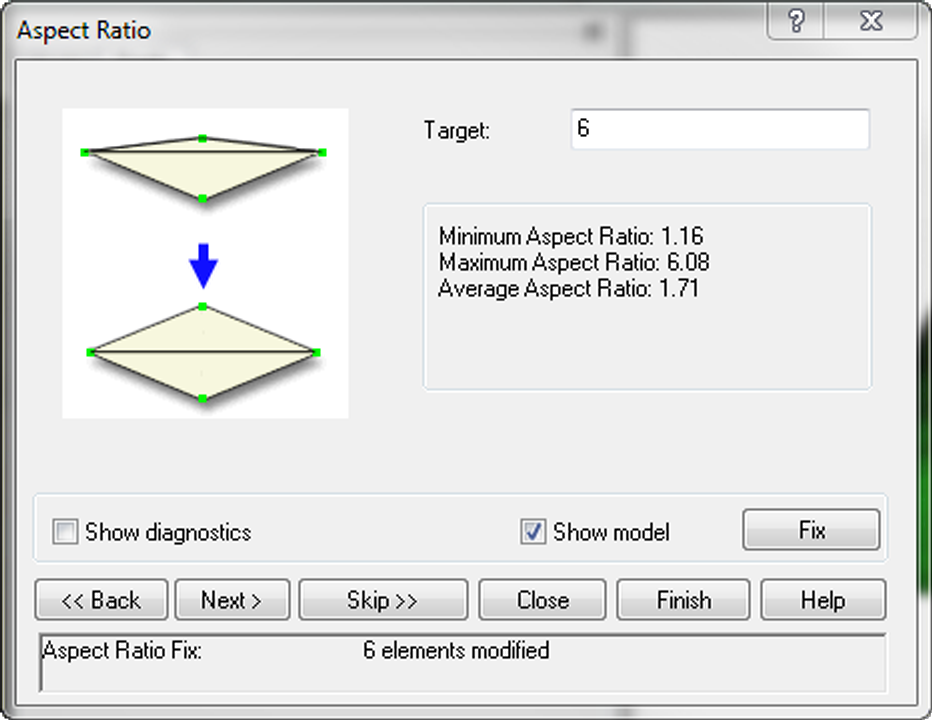

3. Enter a value of 6 for the target and click Fix.



4. Click Finish.

5. Save the study.
