Set Processing Conditions and Run

In this step, the molding process settings are reviewed and the analysis is started.

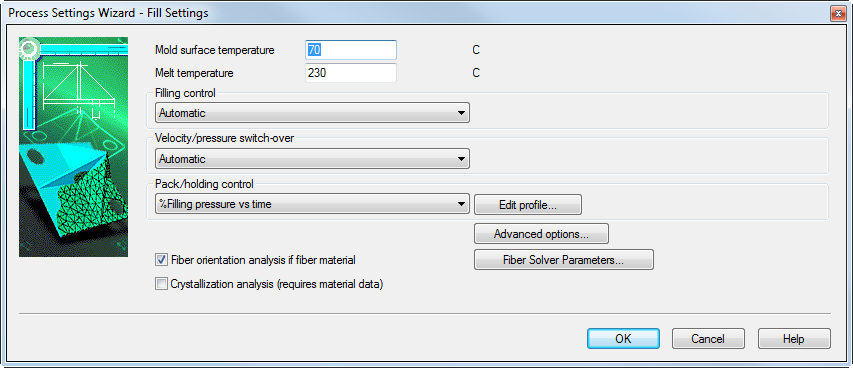

1. Click (Home > Molding Process Setup > Process Settings) to see the process settings wizard. For this analysis, no changes are being made. Review the settings available.

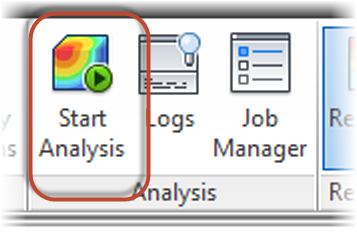

2. Click (Home > Molding Process Setup > Start Analysis) to make the analysis run. The analysis takes 2 - 5 minutes to run.



3. When the analysis is finished, click Logs to close the logs panel.
