Set the Injection Location

In this step, you set the injection location.

1. Click the Right face of the View Cube to rotate the part to 90 -90 0. Zoom up so you can see the center of the part at the parting line.



2. Click Home > Molding Process Setup > Injection Locations

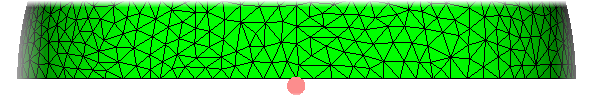

3. Click the part on the back end, in the center, on the parting line as shown.



4. Right click and select Finish Injection locations.
