View Pressure Results

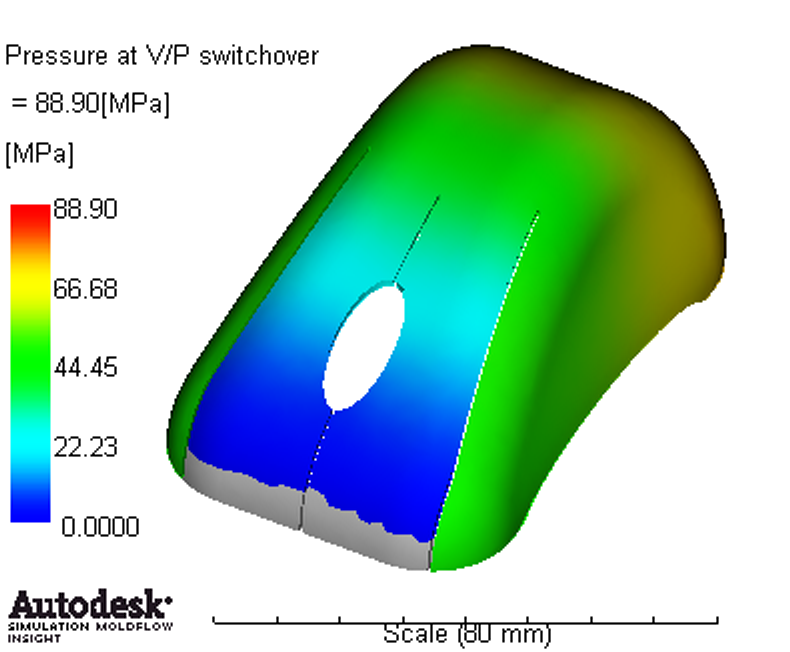

In this step, you review the Pressure at the Velocity / Pressure switch over results.

1. Click Pressure at V/P switchover in the Study Tasks list.

2. Rotate, Pan, and Zoom the model as necessary to inspect the fill time result.

3. Click Results > Animation > Play to animate the result. Use the other animation tools to see what they do.

4. Rotate the part similar to the plot.



5. Click Results > Plots > Examine to show the value at a specific location on the part. Use the CTRL key when clicking the part to select more than one location.
