Using this option, you can specify basic parameters used in Autodesk AutoCAD Structural Detailing.
Access the option from:
- Menu: Formwork Drawings > Job Preferences
- Ribbon: ASD - Model > Settings > Job Preferences
- Toolbar: Tools > Job Preferences
- Command line: RBCX_JOB_PREF.
The Job Preferences dialog consists of 2 main parts:
- On the left is a selection tree from which you can select an option
Elements
Dimension lines
Drawings
- On the right are parameters relevant to the option you selected.
The dialog contains the following buttons:
- Default - click this to save the values you specify for the parameters as default values
- Save - click this to save the current status of preference parameters under a specified name
- Delete - click this to delete a set of job preferences saved under the currently selected name.
You can select a drawing template for Autodesk AutoCAD Structural Detailing modules and workspace names (such as ASD or Classic ASD) in the AutoCAD Options dialog, on the Structural Detailing > General Settings tab.
Templates assigned to individual countries are shown in the following table:
|
Country |
Available Templates - DWT files |
||
|---|---|---|---|
|
REINFORCEMENT |
STEEL |
FORMWORK DRAWINGS |
|
|
Australia |
RBCR-061 |
|
|
|
Austria |
RBCR-043 |
RBCS-043 |
|
|
Belgium |
RBCR-032 |
|
|
|
Denmark |
RBCR-045 |
|
|
|
Finland |
RBCR-058 |
|
|
|
France |
RBCR-033 |
RBCS-033 |
RBCX-033 |
|
Germany |
RBCR-049 |
RBCS-049 |
|
|
Iceland |
RBCR-004 |
|
|
|
India |
RBCR-091 |
|
|
|
Italy |
RBCR-039 |
RBCS-039 |
RBCX-039 |
|
Netherlands |
RBCR-031 |
|
|
|
New Zealand |
RBCR-064 |
|
|
|
Norway |
RBCR-047 |
|
|
|
Poland |
RBCR-048 |
RBCS-048 |
RBCX-048 |
|
Portugal |
RBCR-035 |
|
|
|
Romania |
RBCR-040 |
|
RBCX-040 |
|
Russia |
RBCR-070 |
RBCS-070 |
|
|
Singapore |
RBCR-065 |
||
|
South Africa |
RBCR-027 |
|
|
|
Spain |
RBCR-034 |
|
|
|
Sweden |
RBCR-046 |
|
|
|
Ukraine |
RBCR-079 |
RBCS-079 |
|
|
United Kingdom |
RBCR-044 |
RBCS-044 |
RBCX-044 |
|
United States |
RBCR-001_metric RBCR-001 |
RBCS-001 |
|

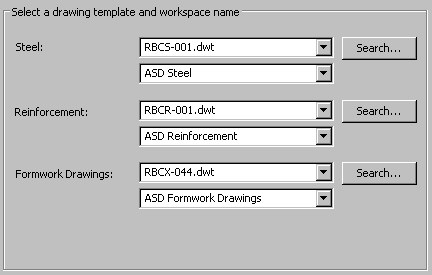

Select the Formwork Drawings tab to choose a drawing template that will be opened when launching Autodesk AutoCAD Structural Detailing - Reinforcement modules (when exporting formwork drawings to Autodesk AutoCAD Structural Detailing - Reinforcement).
