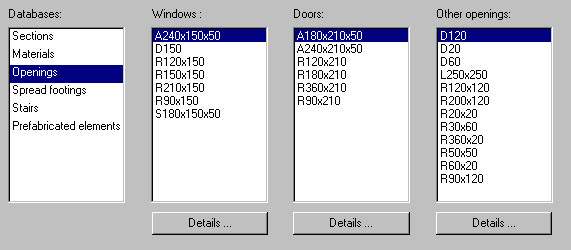

On the the Job Preferences dialog, you can specify databases for structure elements.
Use the databases provided in Autodesk AutoCAD Structural Detailing - Formwork Drawings to:
- Define new structure elements
o Sections
o Materials
o Openings (doors, windows, other openings)
o Spread footings
o Stairs
o Prefabricated elements (such as walls, columns, beams, and slabs)
- Open existing, external databases (for example, Robot databases)
- Save defined elements in databases (*.xml files)
Click Details to open another dialog:
- Section list
- Material list
- Opening list (windows, doors or other openings)
- When material databases are selected, the Prices button is also available. Click Prices to open the Prices of formworks and materials dialog.
