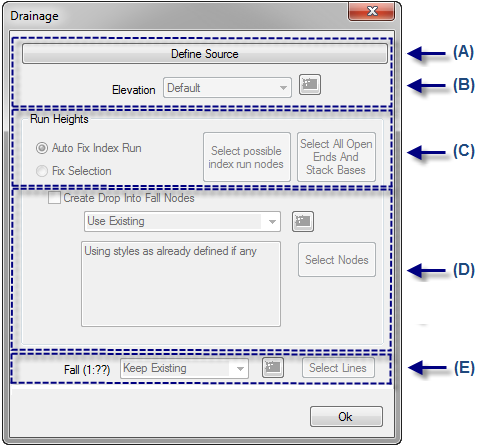

(Design Line) >> Line (Tab) >> (Drainage Tool) Drainage Tool Dialog Menu
(A) Define Source
Prompts for a selection for the Source node location, where the flow of fall will be directed to. A Calculate will automatically update the arrow indicators for the fall of flow direction.
(B) Elevation
Indicates the Elevation level of the drainage system co-ordinated throughout the building. This can be ammended to suit if the system needs re-co-ordinating, New levels can be implemented as required with the Drainage Tool - Add New Elevation. As standard the drainage tool, will always set the Elevation to "Default" indicating that the Design line is utilisng the original level when previously co-ordinating the drainage system throughout the building.
(C) Run Heights
Within a drainage system requirements of fixed items / nodes need to be set to maintain specific run height with a system. Various selection options available, a user can Automatically or manually fix for co-ordination purposes. Within the logic of the tool various design selections can be executed.
(D) Create Drop Into Fall Nodes

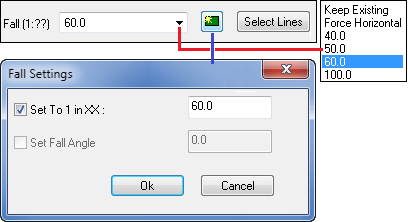

(E) Fall (1:??)
Determines the Fall globally applied within the Public health system run. Alternatively individual design lines contained within the system, can be configured individually with the "Select Line" command.
"Add New Fall" command.
