Define loads - 3D frame

In this tutorial, you learn how to define and apply load cases to a 3D structure.

This tutorial should take about 10 minutes.

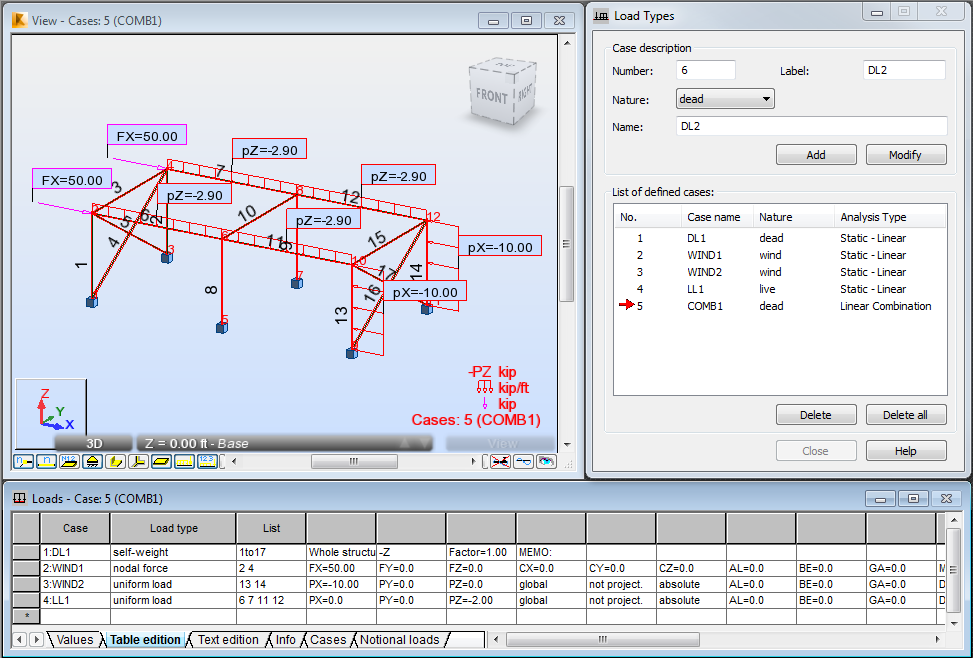

The final layout of the project is shown below.

Click here to start this tutorial.

Tasks list:

  1. Define load cases
    Learn how to define dead, wind and live load cases.
  2. Apply load cases
    Learn how to define types and values of loads for particular load cases.
  3. Generate a manual combination
    Learn how to define a new load combination and how to define load cases for this combination manually.
  4. Summary
    Congratulations! You have completed this tutorial.
Parent topic: Tutorials: Frame 3D Design
