Learn how to use the Autodesk® 360 Structural Analysis website.
The Autodesk® 360 Structural Analysis website consists of the following tabs.

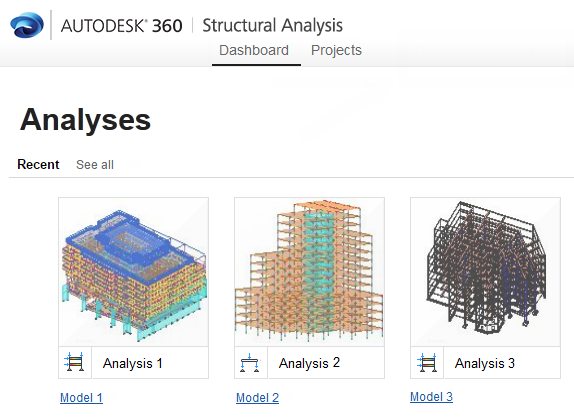

- Dashboard tab
-
The Autodesk® 360 Structural Analysis website opens by default on the Dashboard tab. Here you can view the analyses performed recently and analyses shared with you. The icon next to the analysis name indicates the analysis type:
Static analysis
Gravity analysis.
Position the cursor on the image of an analyzed model to display additional information such as a project name and parameters of the analysis.
- Projects tab
-
The Projects tab lets you manage all projects. Here you can submit new analyses, delete projects, models or analyses and view reports.
You can also download an Robot Structural Analysis model to perform more advanced analysis of it.
For better management of your projects, you can use the following filters:
- With analysis in progress. Displays projects with analyses started and not completed yet.
- With failed analysis. Displays projects with analyses that failed.
- Owned by Me. Displays projects you are the owner of.
- Shared by Me. Displays projects with analyses you shared with collaborators.
- Shared with Me. Displays projects and analyses shared with you by collaborators.
