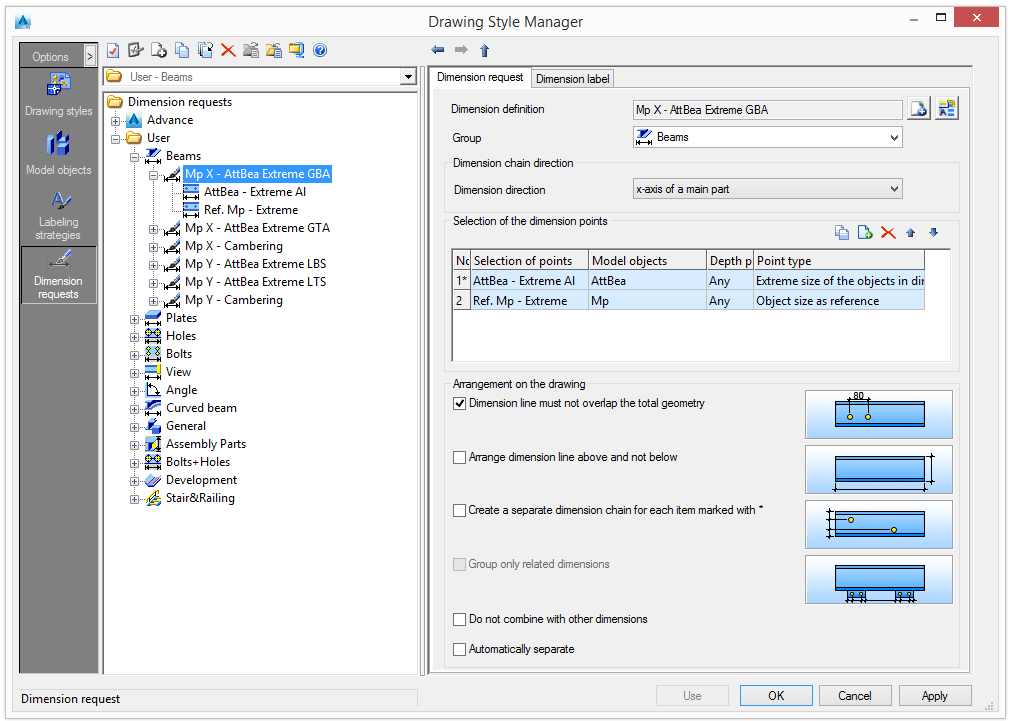

Set different options for the Dimension direction, Selection of dimension points or Dimension chain positron accessing the Dimension Definition Properties.
A dimension definition contains the following settings:
- Dimension direction - defines the dimension chain direction relative to the applied object type.
- Selection of dimension points - A list of sub-styles is available for point selection. The sub-styles specify which points from what objects will be dimensioned.
- Dimension chain position - Several options are available for better positioning relative to the object presentation.
The existing dimension definitions can be renamed and new definitions can be added.
| Button | Function |
|
Define a new dimension definition. A copy of the current settings is created that can be moved to another group using the Group drop-down list. A new item appears in the tree panel under the specified group. |
|
Rename a dimension definition. The current settings are saved under a different name. |
