PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION > Class Template Reference

#include <adskPassShader.h>

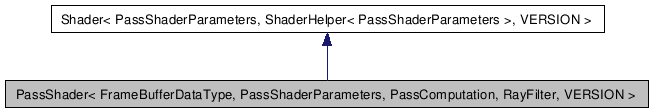

Inheritance diagram for PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >:

[legend]

Collaboration diagram for PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >:

[legend]

List of all members.

---

Detailed Description

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION = DEFAULT_SHADER_VERSION>
class PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >

Pass shader base class.

Template Parameters:

	PassShaderParameters	The type of the pass shader parameters.
	PassComputation	The helper function object which computes a value per sample. This function object will be constucted using using the current state, and the current parameters, and will be called with the state, parameters, and a reference to the current value in the frame buffer for the given sample.
	RayFilter	The helper function object which determines whether a ray should be processed or not. See PassShaderEyeRayFilter for an example implementation.
	VERSION	The version number of this shader.

Public Member Functions
	PassShader (miState *pState, PassShaderParameters *pParameters)
	PassShader constructor. This will be called once per shader instance, and is where data for each shader instance should be initialized.
virtual	~PassShader ()
	PassShader destructor. The member variables mDestructorState and mDestructorParameters will be set correctly when the destructor is called.
miBoolean	operator() (miColor *pResult, miState *pState, PassShaderParameters *pParameters)
	Main shading function.
Public Attributes
miUint	mFrameBufferID
miUint	mEncodingIndex
PassComputation	mPassComputation

---

Constructor & Destructor Documentation

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION>

PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::PassShader	(	miState *	pState,
		PassShaderParameters *	pParameters
	)			[inline]

PassShader constructor. This will be called once per shader instance, and is where data for each shader instance should be initialized.

Parameters:

	pState	A pointer to the mental ray state structure.
	pParameters	A pointer to the shader parameters.

---

Member Function Documentation

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION>

miBoolean PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::operator()	(	miColor *	pResult,
		miState *	pState,
		PassShaderParameters *	pParameters
	)			[inline]

Main shading function.

This is the function which is called for shader samples.

Parameters:

	pResult	A pointer to the mental ray color result.
	pState	A pointer to the mental ray state structure.
	pParameters	A pointer to the shader parameters.

Reimplemented from Shader< PassShaderParameters, ShaderHelper< PassShaderParameters >, VERSION >.

---

Member Data Documentation

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION = DEFAULT_SHADER_VERSION>

miUint PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::mFrameBufferID

The frame buffer IDs

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION = DEFAULT_SHADER_VERSION>

miUint PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::mEncodingIndex

Index associated with the render pass. Used for lookups in the pass contribution encoding strings.

template<typename FrameBufferDataType, typename PassShaderParameters, typename PassComputation, typename RayFilter, int VERSION = DEFAULT_SHADER_VERSION>

PassComputation PassShader< FrameBufferDataType, PassShaderParameters, PassComputation, RayFilter, VERSION >::mPassComputation

Object used for performaing pass-specific computations
