Surface< SurfaceParameters, SurfaceResult, ShaderHelper, AmbientMaterialColorComponent, AmbientComponent, DiffuseMaterialColorComponent, DiffuseComponent, SpecularComponent, ReflectionComponent, RefractionComponent, ScatterComponent, IndirectComponent, IncandescenceComponent, CustomComponent, VERSION > Class Template Reference

#include <adskShader.h>

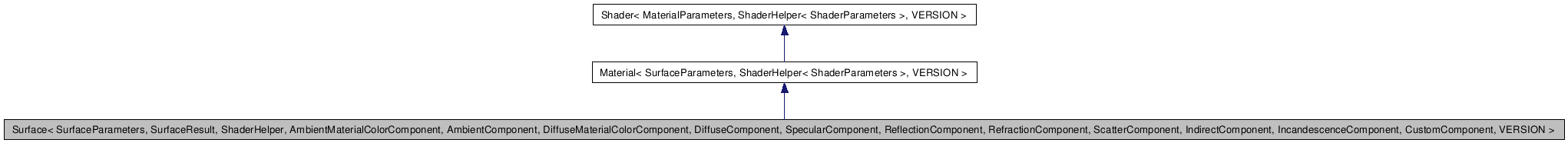

Inheritance diagram for Surface< SurfaceParameters, SurfaceResult, ShaderHelper, AmbientMaterialColorComponent, AmbientComponent, DiffuseMaterialColorComponent, DiffuseComponent, SpecularComponent, ReflectionComponent, RefractionComponent, ScatterComponent, IndirectComponent, IncandescenceComponent, CustomComponent, VERSION >:

[legend]

Collaboration diagram for Surface< SurfaceParameters, SurfaceResult, ShaderHelper, AmbientMaterialColorComponent, AmbientComponent, DiffuseMaterialColorComponent, DiffuseComponent, SpecularComponent, ReflectionComponent, RefractionComponent, ScatterComponent, IndirectComponent, IncandescenceComponent, CustomComponent, VERSION >:

[legend]

List of all members.

---

Detailed Description

template<typename SurfaceParameters, typename SurfaceResult, typename ShaderHelper, typename AmbientMaterialColorComponent = DefaultAmbientMaterialColorComponent<SurfaceParameters, ShaderHelper>, typename AmbientComponent = DefaultAmbientComponent<SurfaceParameters, ShaderHelper>, typename DiffuseMaterialColorComponent = DefaultDiffuseMaterialColorComponent<SurfaceParameters, ShaderHelper>, typename DiffuseComponent = DefaultDiffuseComponent<SurfaceParameters, ShaderHelper>, typename SpecularComponent = DefaultSpecularComponent<SurfaceParameters, ShaderHelper>, typename ReflectionComponent = DefaultReflectionComponent<SurfaceParameters, ShaderHelper>, typename RefractionComponent = DefaultRefractionComponent<SurfaceParameters, ShaderHelper>, typename ScatterComponent = DefaultScatterComponent<SurfaceParameters, ShaderHelper>, typename IndirectComponent = DefaultIndirectComponent<SurfaceParameters, ShaderHelper>, typename IncandescenceComponent = DefaultIncandescenceComponent<SurfaceParameters, ShaderHelper>, typename CustomComponent = DefaultCustomComponent<SurfaceParameters, SurfaceResult, ShaderHelper>, int VERSION = 2>
class Surface< SurfaceParameters, SurfaceResult, ShaderHelper, AmbientMaterialColorComponent, AmbientComponent, DiffuseMaterialColorComponent, DiffuseComponent, SpecularComponent, ReflectionComponent, RefractionComponent, ScatterComponent, IndirectComponent, IncandescenceComponent, CustomComponent, VERSION >

Surface shader class.

This class holds all data and behaviors which are specific to mental ray surface shaders. It is an extention of the Material class.

Template Parameters:

	SurfaceParameters	The surface parameter structure.
	SurfaceResult	The surface result structure.
	ShaderHelper	The shader helper to use with this shader.
	AmbientMaterialColorComponent	The ambient material color component to use with this shader.
	AmbientComponent	The ambient component to use with this shader.
	DiffuseMaterialColorComponent	The diffuse material color component to use with this shader.
	DiffuseComponent	The diffuse component to use with this shader.
	SpecularComponent	The specular component to use with this shader.
	ReflectionComponent	The reflection component to use with this shader.
	RefractionComponent	The refraction component to use with this shader.
	ScatterComponent	The scatter component to use with this shader.
	IndirectComponent	The indirect component to use with this shader.
	IncandescenceComponent	The incandescence component to use with this shader.
	CustomComponent	The custom component to use with this shader.
	VERSION	The version of this shader. Should match the version of the shader declared in the .mi file.

Public Member Functions
	Surface (miState *pState, SurfaceParameters *pParameters)
	Surface shader constructor.
virtual	~Surface ()
	Surface shader destructor.
miBoolean	operator() (SurfaceResult *pResult, miState *pState, SurfaceParameters *pParameters)
	Main shading function.
Public Attributes
void *	mScatterData

---

Constructor & Destructor Documentation

template<typename SurfaceParameters, typename SurfaceResult, typename ShaderHelper, typename AmbientMaterialColorComponent, typename AmbientComponent, typename DiffuseMaterialColorComponent, typename DiffuseComponent, typename SpecularComponent, typename ReflectionComponent, typename RefractionComponent, typename ScatterComponent, typename IndirectComponent, typename IncandescenceComponent, typename CustomComponent, int VERSION>

Surface< SurfaceParameters, SurfaceResult, ShaderHelper, AmbientMaterialColorComponent, AmbientComponent, DiffuseMaterialColorComponent, DiffuseComponent, SpecularComponent, ReflectionComponent, RefractionComponent, ScatterComponent, IndirectComponent, IncandescenceComponent, CustomComponent, VERSION >::Surface	(	miState *	pState,
		SurfaceParameters *	pParameters
	)			[inline]

Surface shader constructor.

This will be called once per shader instance, and is where data for each shader instance should be initialized.

Parameters:

[in,out]	pState	A pointer to the mental ray state structure.
[in]	pParameters	A pointer to the shader parameters.

template<typename SurfaceParameters, typename SurfaceResult, typename ShaderHelper, typename AmbientMaterialColorComponent, typename AmbientComponent, typename DiffuseMaterialColorComponent, typename DiffuseComponent, typename SpecularComponent, typename ReflectionComponent, typename RefractionComponent, typename ScatterComponent, typename IndirectComponent, typename IncandescenceComponent, typename CustomComponent, int VERSION>

Surface< SurfaceParameters, SurfaceResult, ShaderHelper, AmbientMaterialColorComponent, AmbientComponent, DiffuseMaterialColorComponent, DiffuseComponent, SpecularComponent, ReflectionComponent, RefractionComponent, ScatterComponent, IndirectComponent, IncandescenceComponent, CustomComponent, VERSION >::~Surface

(

)

[inline, virtual]

Surface shader destructor.

The member variables mDestructorState and mDestructorParameters will be set correctly when the destructor is called.

---

Member Function Documentation

template<typename SurfaceParameters, typename SurfaceResult, typename ShaderHelper, typename AmbientMaterialColorComponent, typename AmbientComponent, typename DiffuseMaterialColorComponent, typename DiffuseComponent, typename SpecularComponent, typename ReflectionComponent, typename RefractionComponent, typename ScatterComponent, typename IndirectComponent, typename IncandescenceComponent, typename CustomComponent, int VERSION>

miBoolean Surface< SurfaceParameters, SurfaceResult, ShaderHelper, AmbientMaterialColorComponent, AmbientComponent, DiffuseMaterialColorComponent, DiffuseComponent, SpecularComponent, ReflectionComponent, RefractionComponent, ScatterComponent, IndirectComponent, IncandescenceComponent, CustomComponent, VERSION >::operator()	(	SurfaceResult *	pResult,
		miState *	pState,
		SurfaceParameters *	pParameters
	)			[inline]

Main shading function.

This is the function which is called for shader samples.

Parameters:

[out]	pResult	A pointer to the mental ray surface shader result struct.
[in,out]	pState	A pointer to the mental ray state structure.
[in]	pParameters	A pointer to the shader parameters.

---

Member Data Documentation

template<typename SurfaceParameters, typename SurfaceResult, typename ShaderHelper, typename AmbientMaterialColorComponent = DefaultAmbientMaterialColorComponent<SurfaceParameters, ShaderHelper>, typename AmbientComponent = DefaultAmbientComponent<SurfaceParameters, ShaderHelper>, typename DiffuseMaterialColorComponent = DefaultDiffuseMaterialColorComponent<SurfaceParameters, ShaderHelper>, typename DiffuseComponent = DefaultDiffuseComponent<SurfaceParameters, ShaderHelper>, typename SpecularComponent = DefaultSpecularComponent<SurfaceParameters, ShaderHelper>, typename ReflectionComponent = DefaultReflectionComponent<SurfaceParameters, ShaderHelper>, typename RefractionComponent = DefaultRefractionComponent<SurfaceParameters, ShaderHelper>, typename ScatterComponent = DefaultScatterComponent<SurfaceParameters, ShaderHelper>, typename IndirectComponent = DefaultIndirectComponent<SurfaceParameters, ShaderHelper>, typename IncandescenceComponent = DefaultIncandescenceComponent<SurfaceParameters, ShaderHelper>, typename CustomComponent = DefaultCustomComponent<SurfaceParameters, SurfaceResult, ShaderHelper>, int VERSION = 2>

void* Surface< SurfaceParameters, SurfaceResult, ShaderHelper, AmbientMaterialColorComponent, AmbientComponent, DiffuseMaterialColorComponent, DiffuseComponent, SpecularComponent, ReflectionComponent, RefractionComponent, ScatterComponent, IndirectComponent, IncandescenceComponent, CustomComponent, VERSION >::mScatterData

Scatter user data pointer
