Browser Functions

This page describes browser (tree view) functions that are available in the Results environment. A couple of these functions are also available from the command ribbon.

Highlight Items from the Browser

When you click a part in the browser, all of the items associated with the part, based on the current Selection Select option, are highlighted in the display area. For example, if the selection method is set to elements, clicking a part in the browser will select all of the elements within that part. Then, any operation associated with the selection can be performed, such as Results Inquire Inquire Element Information.

Tip: If the part has a large number of nodes and elements, there can be a delay when a part is selected in the browser while the associated items are selected. If you are clicking the part to perform an operation (such as to hide the part or make it transparent) then it is not necessary to select the nodes or elements. The clicking process will be faster if the Selection Select option is set to Loads and Constraints.

When a contact entry is selected in the browser (either the Default or a particular pair) what is highlighted in the model depends on the analysis type and contact type. See Table 1 for details.

Table 1: Selecting a Contact Entry in the Browser
Analysis Type Contact Type
  Bonded or Welded Surface or Edge Contact
Linear See Note 1. Nodes connected with contact elements are selected.
Nonlinear See Note 2. Nothing is selected.
Thermal See Note 1. Nothing is selected.
Electrostatic See Note 1. Not applicable.
Note:
  1. Nodes are selected when any of the following conditions are true:
    • Nodes that are smart bonded are selected when the Default or any contact pair is clicked.
    • Nodes that are connected together (not smart bonded) are selected if a contact pair other than Default is clicked.
    • Nodes that are connected together (not smart bonded) are selected when Default is clicked if smart bonding is also present in the model.
  2. Nodes that are connected together (not smart bonded) are selected if a contact pair other than Default is clicked.

3D Visualization of Elements

When beam, plate/shell, or 2D elements are included in the analysis, the parts can be displayed or rendered as the 3D geometry instead of the line or planar geometry. This can be done by right-clicking on the heading for that part in the browser and selecting the 3D Visualization command. Table 2 and Figure 1 provide additional details. In all cases, only the nodes and elements on the original mesh can be selected; the fictitious nodes and elements created to show the 3D shape cannot be selected. Loads and boundary conditions are shown at the original mesh.

Table 2: 3D Visualization
Element Type Applicable Analysis Type Notes
Beam Linear and Nonlinear

Beam elements are rendered as virtual 3-D solid objects. 3D visualization is supported for shapes from all beam cross section libraries except for the three oldest AISC libraries (Rev 7, 8, and 9). 3D visualization is also supported for User Defined shapes (wide flange beam, channel, angle, and so on), that are defined by specifying the applicable dimensions.

Certain shapes within non-AISC (non-US) libraries may not be visualized in 3D (specifically, if the shape is not analogous to one of the standard AISC shape types). Additionally, beams specified by their non-dimensional cross section properties (moments of inertia, section moduli, area, and so on; as opposed to height, width, thickness, and such) cannot be visualized in 3D. These cross section properties give no indication of the beam shape.

See the Beam Cross-Section Libraries page for more information.

Plate or Shell Linear and Nonlinear Thickness shown with 3-D visualization.
2-D axisymmetric all Cross section shown revolved around the Z axis with 3-D visualization.
2-D planar all Thickness in -X direction shown with 3-D visualization.

(a) Beam element with loads. A beam element mesh is simply a straight line; the cross sectional properties are treated analytically.

(b) With 3D Visualization active, the actual cross sectional shape is shown. Note how the loads are still shown on the original elements.

(c) 2D axisymmetric model. Analytically, the analysis treats the model as if revolved around the Z axis.

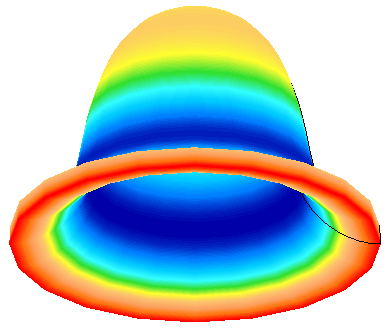

(d) With 3D Visualization active, the 2D mesh and results are shown in their 3D form. The results are the same around the perimeter, so vector results are interpreted as being relative to the Z axis. For example, a true representation of the Y displacement would show a positive value on one side of the model and a negative value on the opposite side. Instead, the Y displacement should be interpreted as the displacement component away from the rotation axis. (A better suggestion is for you to create a cylindrical coordinate system and view the results in terms of radial, tangential, and axial. See the Local Coordinate Systems page.)

Figure 1: Examples of 3D Visualization
Tip: Use Options Results 3D Element Visualization to control what rendering is performed when the Results environment is launched. See the page Results for details.
Note: The visualization of beam cross section may not follow the beams properly when the beams experience axial rotations in a Mechanical Event Simulation (MES) and nonlinear analyses unless the Large rigid body rotation option is used. (This option is activated on the beam element's Element Definition dialog box.). This limitation is just a visualization issue; the calculated results are not affected.

Presentations

The Presentations branch of the browser contains the different views for the current model. The thing to keep in mind is that each presentation is a separate window. To switch between the different presentations/windows, either click the presentation's name in the browser or use the Window pull-down menu and choose the appropriate window. To close a presentation, switch to it and click the X to close the window.

A presentation/window can be either a contour presentation which shows a result by colorizing the model, or a graph/curve which plots the result of selected nodes over time or load cases.

The name of the presentation (shown in the browser and in the window's title bar) only represents the name when the window was created. By using the pull-down menus, the displayed result can be set to anything. Thus, the default Stress presentation may actually be showing a displacement result when changed.

Once a presentation/window is set up with special settings that you want to save for future use, right-click the presentation name in the browser and choose either Save with Model or Save with System.

Mirror Planes

Any model can be mirrored about a maximum of three planes. This is most often used in a symmetry analysis to create a display of the full model. For example, Figure 2 shows the analysis of a symmetric frame. A full display is created in the Results environment to show the complete frame for the report.

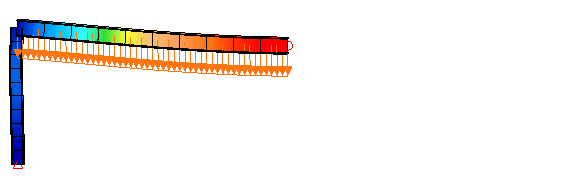

(a) This is the complete model that was analyzed. The analyst took advantage of symmetry and analyzed half of the model.

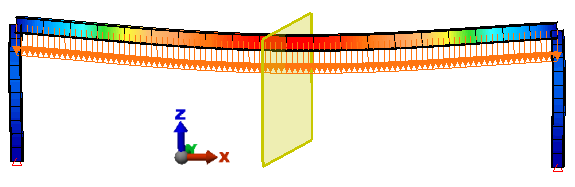

(b) The results are reflected about the mirror plane (the yellow rectangle) to create an image of the full model. The mirror plane can be optionally shown or hidden.

Figure 2: Mirror Planes

The model can be mirrored by right-clicking on the appropriate entry in the Mirror Planes branch of the browser for the current presentation and choosing Activate. To remove the mirror operation, right-click the appropriate plane and clear Activate. To position the mirror plane along the normal direction, right-click and choose Edit Offset. The Offset Distance is the coordinate of the mirror plane, where a positive value is along the positive X, Y, or Z axis normal to the plane. Activating multiple mirror planes will mirror the original model and all the reflections created by other mirrors. For example, a one-eighth symmetry model can be mirrored about the XZ plane to represent a 1/4 symmetry model, which can be mirrored about the YZ plane to represent a 1/2 symmetry model, which can be mirrored about the XY plane to represent the full model. The order of activating the mirror planes is not important.

To show or hide the yellow mirror plane rectangle, right-click the appropriate plane and select or clear Visibility.

The transparency of the mirror plane can be adjusted by using Results Options View Settings Transparency Level, or by right-clicking on any mirror plane entry in the browser and choosing Transparency Level. All mirror planes use the same transparency.

Tip: In some cases, it may be desirable to display the partial model instead of the full model. To represent to the viewer where the symmetry plane is located, show the appropriate mirror plane, label it as the symmetry plane, but do not activate it.

Note: The Mirror Planes simply mirror the graphical display. It does not create additional nodes and elements, nor does it create additional results. Thus, some operations may not behave quite as expected. For example,
  • Only nodes and elements in the original model can be selected. They cannot be selected on the mirrored sections.
  • Hiding elements in the model will update all the reflections.
  • When a model is sliced and mirrored, the slicing operation is performed first. Thus, all mirrored reflections receive the same slice.
  • The results are the same on each side of the mirror plane. This affects vector results the most, such as X, Y, Z displacements. For example, if Figure 2 is showing the X displacement, then the value on one side of the mirror plane would be negative and positive on the other side of the mirror plane. Instead, the same negative displacements are shown on both sides of the mirror plane. Such results should be interpreted as being relative to the mirror plane.

Slice Planes

See the paragraph Slice Planes on the Display Options page for working with slice planes.

Annotations and Labels

The text that appears in the display area is an annotation. You can Add new annotations to the current presentation, and Edit or Move existing annotations. Right-click on the Annotations branch in the browser (or on one of the existing annotations) to access a context menu. When using Add or Edit, the Annotation dialog box appears. The sections are as follows:

Tip: Selecting an annotation in the browser will highlight the corresponding annotation in the display area. After modifying or moving an annotation, click a different entry in the browser or click in the display area to un-select the annotation.

Saved Presentations

The Saved Presentations branch of the browser accesses the default presentations and your saved presentations. Right-click and choose Activate to open the corresponding presentation. Note how this loads the window into the Presentations branch of the browser.

Tip: Presentations that are only saved with a model can also be opened from another model. Use Results Options Other Tools Import Presentations.

Filter Modules

The Filter Modules branch of the browser is used to set selection filters. A selection filter is used to make it easier to select results of interest while not selecting other items. For example, to sum the heat flow through all the convection faces, use a filter as follows:

  1. Change the display to show the convection loads on the model (Results Contours Other Results Applied Loads Convection Coefficient).
  2. Right-click the Filter Modules entry in the browser and choose Add Selection Filter: Current Result. This will give a pop-up dialog.
  3. Set the Minimum Value and Maximum Value as needed for the filter. If only one value is set, then the filter will be all values up to the maximum or all values above the minimum.
  4. Change the display to the heat rate (Results Contours Heat Flow Heat Rate Through Face).
  5. Since heat flow rate needs to be selected by selecting the faces, set Selection Select Faces. Also, use Selection Shape Rectangle to make choosing the faces easier.
  6. Since the heat out of one face is equal and opposite to the heat flow into the adjacent face, turn the smoothing off (Results Contours Settings Smooth Results should be unchecked).
  7. Drag a box around the entire model. Only the faces that fit the filter will be selected. From this step, use Results Inquire Inquire Current Results and set the Summary pull-down to Sum. The total heat flow will be display.

Contact Diagnostic Probes

The Contact Diagnostic Probe is used in a nonlinear stress analysis with surface to surface contact to track down areas of contact difficulties. When activated and when a contact problem occurs, the diagnostic probe will appear on the model, and the contact pair is identified in the tree. Two probes per contact pair can appear on the model, one for each diagnostic described below.

The following types of problems will appear in the probe. These are results, so the probe will only appear when the step converges and writes the results.

  1. Penetration indicates that the contact elements have fully compressed and the two surfaces are now passing through each other (separation less than zero). If this behavior is undesirable, try increasing the contact stiffness, the contact distance (to give a larger cushion), or both values. Remember that the contact elements are essentially springs; they must compress some finite distance to develop a contact force. Thus, a contact distance of zero will require penetration to develop a force.
  2. Chatter indicates the status of the contact elements (opened or closed) is changing from iteration to iteration. Chatter requires more iterations or reduced time steps to converge, both of which will add to the analysis runtime. Thus, reducing the chatter will be beneficial. At high chatter levels, remeshing the model to have a more uniform mesh is the best solution. Another solution to chattering is to reduce the contact stiffness (softer impact). Also, if the chattering is occurring because the point of contact is shifting from one element to an adjacent element and back, then extending the contact sides can be beneficial. The following levels are shown in the Results environment:
    • Level 3: The contact element is oscillating between states.
    • Level 4: The contact element status is diverging monotonically. Instead of fewer elements changing status on each iteration, more elements are changing status. If the status continues to diverge, the analysis is not likely to continue.
    • Level 5: The contact element status is diverging quadratically. If the status continues to diverge, the analysis is highly unlikely to find a solution.
Tip:
