3-D Hopper Model

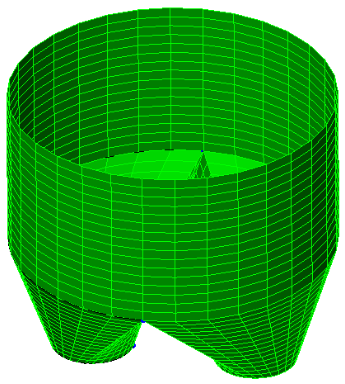

In this tutorial, we step through the creation of a 3-D hopper using structured meshing techniques in Autodesk Simulation Mechanical.



Features Illustrated:

• Create construction objects.
• Divide construction objects.
• Create structured meshes.
• Use the Rotate or Copy command on line geometry.
• Use the Move or Copy command and the Join option to extrude meshes.
• Use the Mirror command.
