Controls tab

This tab displays the character with Control rig and HumanIK controls.

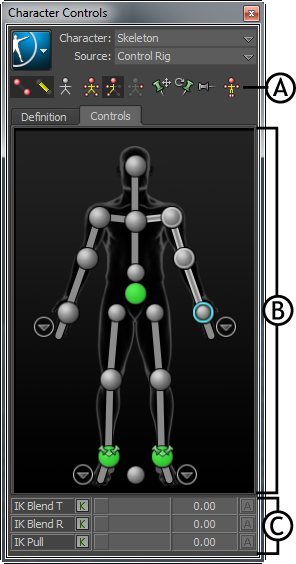

Controls tab A. Toolbar B. Character representation C. Blend and Pull controls

The following table provides a brief overview of tasks that you can perform using the Controls tab:

To...		Do this
Create a Control rig		Select Control Rig from the Source menu or Select > Create > Control Rig.
Change the appearance of rig effectors		Select > Edit > Controls > Rig Look, then select an effector style.
Change to Full Body keying and manipulation mode		Click .
Change to Full Body - No Pull Manipulation mode		Click .
Change to Body Part keying and manipulation mode		Click .
Display the skeleton of the character		Click .
Set the animation source for the current character		Select another HumanIK defined character by name from the Source menu.
Create an auxiliary or pivot effector		Right-click an IK effector cell and select Create Aux Effector or Create Aux Pivot.
Remove an auxiliary or pivot effector		Select the effector in the scene and press the Delete key.
Pin an effector in Translation		Select the corresponding IK effector cell, then click .
Pin an effector in Rotation		Select the corresponding IK effector cell, then click .
Temporarily release all pinning		Click .
Bake the active Source onto the current Character		Select > Bake > Bake To Skeleton (or) Select > Bake > Bake To Control Rig
Edit retargeting parameters in the Attribute Editor		Select > Edit > Definition > Edit Properties.
