What's New in Revit LT 2024

Learn about new features in the latest release of Autodesk Revit LT. For technical details, see the release notes.

2024.3 Release

The 2024.3 release of Revit LT includes a number of security, stability and user interface improvements. For a full list of resolved issues see the release notes.

2024.2 Release

Features

The New Revit Home: Tech Preview

Use the New Revit Home toggle button to try the new home page with more features.

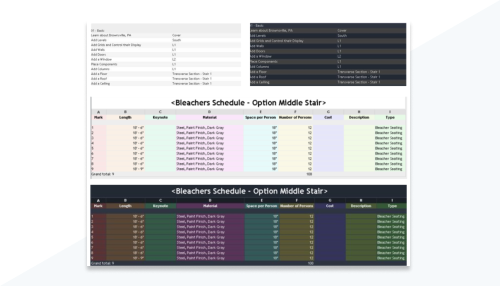

Dark Theme for Schedules and Panel Schedules

You can now enable Dark Theme for Schedules, Panel Schedules and Panel Schedule Template edit mode to keep consistent with the other views.

Elevation Base Option Enhancement

Top Plane was added as an elevation base option when shape editing.

Sorting Parameters Alphanumerically

You can sort the project parameters alphanumerically both from the Property Palette and Type properties dialog.

Automatic Color Conversion for All Views in Dark Theme

When switching theme from Light to Dark, the color conversion is automatically enabled for all views to improve the existing readability in dark mode and reduce the eye strain.

Add Area Boundary Line in Model Group Editor

The Add Area Boundary Line tool was enabled in the model group editor to modify the area boundary.

Remember Type Properties Divider Setting

The column width set in the Type Properties dialog will be preserved per machine.

Create Similar Uses Correct Draw Tool

When you click Create Similar, the correct tool is launched from the draw gallery.

2024.1 Release

Highlights

Export Fill Patterns

Export drafting and model patterns from your model to a PAT file.

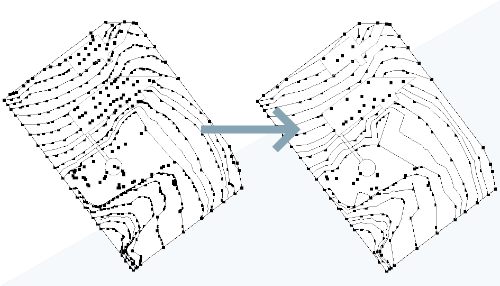

Simplify Topography

Community idea: Reduce the number of points used to generate toposolid elements.

Shape Editing: Split Line Enhancement

Community idea: Use the placement controls on the contextual tab to control the elevation of split lines when shape editing elements.

Visual Styles in Type Preview

To better visualize how an element is displayed in your model, apply a visual style to the element in the Type Properties dialog.

More features

Project Browser Navigation Enhancements

Use Ctrl+Scroll to zoom the contents of the Project Browser. Following a search, use the arrow keys to move up/down in the search results.

2024 Release

Highlights

Toposolids

Community idea: Create topographic elements as solid geometry.

Revit Dark Theme

Community idea: Revit supports the dark theme for first level user interface, including the Properties Palette, Project Browser, Option Bar, View Control Bar, and status bar. You can also set the drawing area (canvas) theme to Dark or Light both from the ribbon and the Options dialog.

Align Surface Patterns

Community idea: Use the Align tool to align surface patterns on shape-edited elements. Patterns can be aligned across the entire surface, or triangulated faces can be individually aligned.

Cut Geometry Enhancements

Community idea: Additional categories have been enabled to allow cutting in the project environment.

Search in Project Browser

Community idea: A search function is now available at the top of the Project Browser.

Shape Editing

Slab shape editing tools previously available only in Revit are now available in Revit LT.

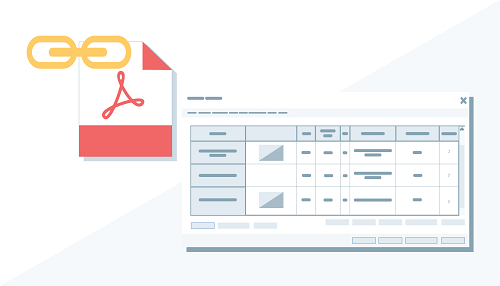

Link/Import PDF Files

Link or import a 2D PDF file into a 2D view for reference without increasing the size of the model or affecting performance. Then remove the file when it's no longer needed.

Schedule Revision Clouds

Community idea: Quickly manage your revision cloud parameter information using revision cloud schedules.

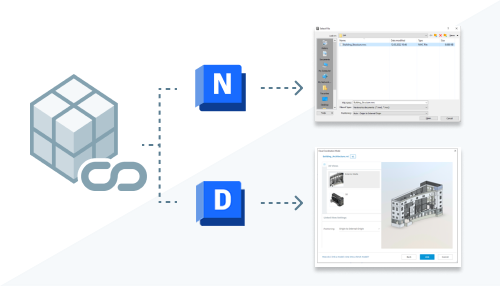

Link Coordination Models

Community idea: Visually cross-check between models of various disciplines and phases of a project. In 3D views, visually compare collaboration models created in Revit LT or other modeling tools for coordination purposes.

Snap Points for Coordination Models

Community idea: Use snap points to easily model in context, to measure between two references based on the coordination model points, or to better position the coordination model.

More features

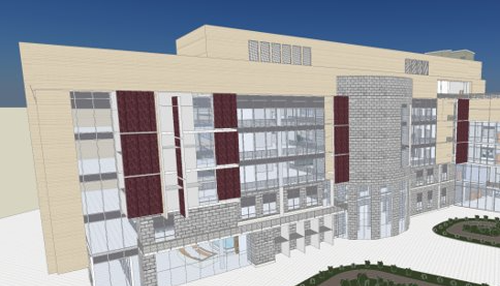

Textures Visual Style

Use the new Textures visual style to apply the texture of render materials without lighting effects.

Draw Order Improvements

Community idea: Draw order of 2D elements in families is visually the same in the family editor, in a project, and when output to PDF/print.

Access Coordination Model Object Properties

Select individual coordination objects and access their properties.

Color Books Dialog

Specify colors using third-party color books or user-defined color books.

My Insights on Revit Home

My Insights are delivered to Revit Home giving you insights on your software use and suggestions to improve your experience.

User Interface Modernization

Community idea: Over 2000 icons were replaced with new modernized versions.

Resize All Rows in Schedules Placed on Sheets

You can now resize all the rows in a schedule placed on a sheet to clearly represent its contents including text, images, or graphics.

Open Sheet Directly from Drawing Area

You can now open sheets directly from the right-click menu of the view drawing area.

Place Multiple Views and Schedules

Multiple views and schedules can be placed on a sheet at the same time by either dragging them from the Project Browser, or selecting multiple items from the Select View dialog.

Additional Resizable Dialogs

Twenty one dialogs have been enhanced so they can be resized as you work with them.

Sort Project Parameters

Project parameters are sorted alphabetically in type and instance properties dialogs.

Scope Box Height Parameter

Set the height of a scope box after it is placed.
