To manage CAD levels

To specify which CAD levels and surfaces are displayed in the CAD view:

  1. Select Home tab > Mouse Context panel > Surface Selector.

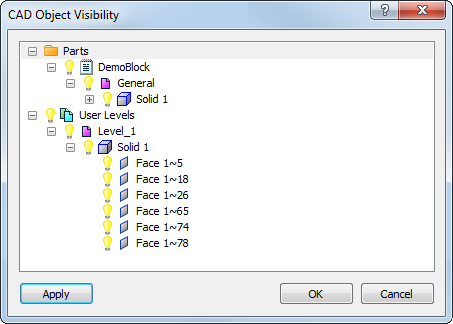

  2. Right-click the CAD view, and select Levels from the context menu. The CAD Object Visibility dialog is displayed, for example:

  3. Click to expand the folders and display the levels and objects you want to work with.
  4. By default, all the levels and objects of a model are displayed. Click next to the entry you do not want to display in the CAD view; the icon changes to and the icon of any parent level or object changes to to indicate one or more sub-entries are hidden.

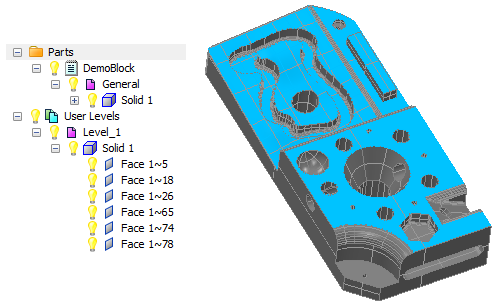

    In this example, the whole CAD model is displayed because all the level and object entries are selected:

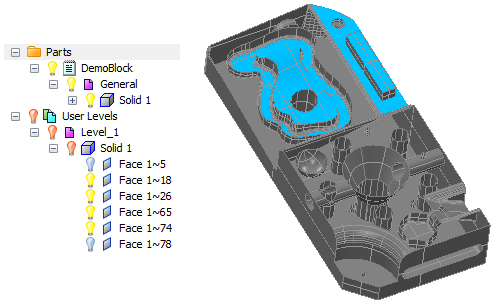

    with these selections, Face 1~5 and Face 1~78 in Level_1 are hidden:

    To redisplay an entry in the CAD view, click the icon again.

  5. Click OK to save your changes and close the dialog.
    6. Tip: You can also show and hide CAD levels using the CAD tab.
Parent topic: To work with surfaces
