To specify angles for indexable heads

Specify a probe position for the probe tool assembly.

Note: The Probe head angles area is available only when creating inspections for CNC and Manual machines.

1. In the Machine tab, click the Probe head angles area.

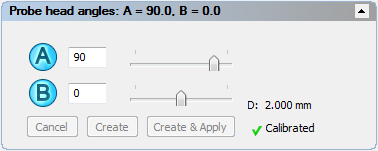

2. Enter the A and B angles of the new position by typing the values in the boxes, or by moving the slider controls.
3. Click Create to add the position to the active probe. The new position is displayed in the Probe view.

   You can also click Create & Apply to set the active position.
