FBDeckLayout Class Reference

Deck layout class. More...

#include <fbdecklayout.h>

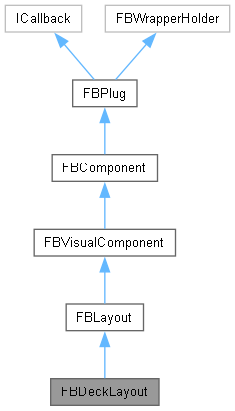

Inheritance diagram for FBDeckLayout:

Public Member Functions
	FBDeckLayout (FBDeck *pDeck=NULL)
	Constructor.
Public Member Functions inherited from FBLayout
	FBLayout (HIObject pObject=NULL)
	Constructor.
virtual bool	AddRegion (const char *pName, const char *pTitle, int pX, FBAttachType pXType, const char *pXRelative, float pMultX, int pY, FBAttachType pYType, const char *pYRelative, float pMultY, int pW, FBAttachType pWType, const char *pWRelative, float pMultW, int pH, FBAttachType pHType, const char *pHRelative, float pMultH)
	Add a region to the layout.
virtual bool	MoveRegion (const char *pName, int pX, int pY)
	Move a region.
virtual bool	SizeRegion (const char *pName, int pW, int pH)
	Change a region's size.
virtual bool	RemoveRegion (const char *pName)
	Remove a region.
virtual bool	RenameRegion (const char *pOldName, const char *pNewName)
	Rename a region.
virtual bool	GetRegion (const char *pName)
	Verify if a region with pName exists.
virtual bool	GetRegionPositions (const char *pName, bool pComputed, int *pX, int *pY, int *pW=NULL, int *pH=NULL)
	Get region pName information (position and size)
virtual bool	SetControl (const char *pName, FBVisualComponent *pComponent)
	Set control of a region to a visual component.
virtual bool	SetControl (const char *pName, FBVisualComponent &pComponent)
virtual void	ClearControl (const char *pName)
	Remove a control from a region in a visual component.
virtual FBVisualComponent *	GetControl (const char *pName)
	Get control of a region in a visual component.
virtual HIKtObject	GetHIKtObject (const char *pName)
	Set or Get internal toolkit: object.
virtual bool	SetHIKtView (const char *pName, HIKtView pView)
	Set internal toolkit view.
virtual HIKtView	GetHIKtView (const char *pName)
	Get internal toolkit view.
virtual bool	SetView (const char *pName, FBVisualComponent *pComponent)
	Set view.
virtual bool	SetView (const char *pName, FBVisualComponent &pComponent)
virtual bool	SetBorder (const char *pName, FBBorderStyle pType, bool pShowTitle, bool pInSet, int pWidth, int pSpacing, float pMaxAngle, int pCornerRadius)
	Set border properties for a region.
virtual bool	SetSplitStyle (const char *pName, FBSplitStyle pRegionType)
	Set a region's splitstyle.
virtual FBSplitStyle	GetSplitStyle (const char *pName)
	Get a region's splitstyle.
virtual bool	SetRegionTitle (const char *pName, const char *pTitle)
	Set a region's title.
void	SetAutoRestructure (bool pAutoRestructure)
	Suspend all automatic layout recomputation.
void	Restructure (bool pNoMove)
	Force a recomputation of all region placements in the layout.
	IObject_Declare (override)
Public Member Functions inherited from FBVisualComponent
	FBVisualComponent (HIObject pObject)
	Constructor.
	IObject_Declare (override)
	ICallback_Declare (override)
virtual HIKtView	GetKtView ()
	Get internal toolkit object.
QWidget *	GetQWidgetAddress ()
	Get internal QWidget.
virtual bool	AddChild (FBVisualComponent *pChild, int pId=0)
	Add a child component.
virtual FBVisualComponent *	GetChild (int pId=0)
	Get a child component.
virtual void	Refresh (bool pNow=false)
	Refresh component.
virtual void	ViewExpose ()
	Exposed view callback function.
virtual void	ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
	Input callback function.
virtual bool	IsView ()
	Is component a view?
Public Member Functions inherited from FBComponent
	FBComponent (HIObject pObject)
	Constructor.
virtual	~FBComponent ()
	Destructor.
virtual bool	FBCreate ()
	Open Reality Creation function.
virtual void	FBDestroy ()
	Open Reality destruction function.
virtual void	FBDelete () override
	Open Reality deletion function.
virtual bool	SetHIObject (HIObject pObject, bool pSDKComponent) override
	Assign component to an internal pointer.
virtual int	PropertyAdd (FBProperty *pProperty)
	Add a property to the component's property manager.
bool	PropertyAddReferenceProperty (FBProperty *pReferenceProperty)
	Add a reference property to the component's property manager.
void	PropertyRemove (FBProperty *pProperty)
	Remove a Property from the component's Property manager.
void	PropertyGetModifiedList (FBArrayTemplate< FBProperty * > &pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.
FBProperty *	PropertyCreate (const char *pName, FBPropertyType pType, const char *pDataType, bool pAnimatable, bool pIsUser=false, FBProperty *pReferenceSource=NULL)
	Create user or dynamic property.
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).
void	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.
void	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.
void	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.
void	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, const char *pNamespaceName, const char *pReplaceTo=NULL, bool pAddRight=true)
	ProcessNamespaceHierarchy.
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, const char *pNamespaceName, const char *pReplaceTo=NULL, bool pAddRight=true)
	ProcessObjectNamespace.
virtual const char *	ClassName () override
	Get the class name.
virtual bool	UseCustomPropertyViewSet () const
	Use the custom property viewSet or not.
const char *	GetFullName (void)
	Get the full name.
void	SetOwnerNamespace (FBNamespace *pOwnerNSObj)
	Set the owner Namespace object.
FBNamespace *	GetOwnerNamespace (void)
	Get the owner Namespace object.
FBFileReference *	GetOwnerFileReference (void)
	Get the owner FileReference object.
void	HardSelect ()
	HardSelect.
virtual bool	Is (int pTypeId) override
	Returns true if object is of type TypeId.
virtual int	GetTypeId () override
	GetTypeId( int pTypeId )
Public Member Functions inherited from FBWrapperHolder
FBScriptWrapper *	GetWrapper ()
	Return the wrapper interface of this FBObject.
void	AddWrapper (FBScriptWrapper *)
void	RemoveWrapper (FBScriptWrapper *)

Public Attributes
FBPropertyDeck	Deck
	Property: Deck.
Public Attributes inherited from FBLayout
FBPropertyEvent	OnInput
	Event: Input.
FBPropertyEvent	OnPaint
	Event: Paint layout.
FBPropertyEvent	OnIdle
	Event: Idle.
FBPropertyEvent	OnPreShow
	Event: PreShow layout.
FBPropertyEvent	OnShow
	Event: Show layout.
FBPropertyEvent	OnResize
	Event: Resize layout.
Public Attributes inherited from FBVisualComponent
struct FBVisualComponent::__Region	Region
struct K_DLLEXPORT FBVisualComponent::__Border	Border
FBPropertyString	Caption
	Property: Widget caption.
FBPropertyBool	Visible
	Read Write Property: Is visual component visible?
FBPropertyBool	ReadOnly
	Read Write Property: Is visual component read only?
FBPropertyBool	Enabled
	Read Write Property: Is visual enabled?
FBPropertyString	Hint
	Read Write Property: Hint to show.
FBPropertyInt	Left
	Read Write Property: Left coordinate.
FBPropertyInt	Top
	Read Write Property: Top coordinate.
FBPropertyInt	Width
	Read Write Property: Width.
FBPropertyInt	Height
	Read Write Property: Height.
FBPropertyEvent	OnEnter
	Event: On mouse enter.
FBPropertyEvent	OnExit
	Event: On mouse exit.
Public Attributes inherited from FBComponent
FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component.
FBPropertyListComponent	Components
	List: List of components.
FBPropertyListComponent	Parents
	List: Parents.
FBPropertyBool	Selected
	Read Write Property: Selected property.
FBPropertyString	Name
	Read Write Property: Unique name of object.
FBPropertyString	LongName
	Read Write Property: Name and namespace for object.
FBPropertyFolder	Folder
	Read Write Property: The folder that contain this component.

Additional Inherited Members
Public Types inherited from FBLayout
enum	FBSplitStyle {   kFBNoSplit = 0 ,   kFBHSplit = 1 ,   kFBVSplit = 2 ,   kFBHVSplit = 3 }
	Type of split style (sub-division) for layout. More...
Static Public Member Functions inherited from FBComponent
static int	GetInternalClassId ()
static void	FBComponentSetName (FBComponent *pObject, const char *pName)
static const char *	FBComponentGetName (FBComponent *pObject)
static void	FBComponentSetLongName (FBComponent *pObject, const char *pName)
static const char *	FBComponentGetLongName (FBComponent *pObject)
Static Public Attributes inherited from FBComponent
static int	TypeInfo
	Contains the Type information of the object.
Protected Member Functions inherited from FBVisualComponent
virtual HIKtObject	GetHIKtObject ()
	Get internal toolkit object.
Protected Member Functions inherited from FBPlug
bool	IsSDKComponent ()
	Return whether or not item is an SDK component.
bool	ConnectSrc (FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.
bool	ConnectDst (FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.
bool	ConnectSrcAt (int pDst_SrcIndex, FBPlug *pSrc, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a source connection.
bool	ConnectDstAt (int pSrc_DstIndex, FBPlug *pDst, FBConnectionType pConnectionType=kFBConnectionTypeNone)
	Add a destination connection.
bool	DisconnectDst (FBPlug *pDst)
	Remove a destination connection.
bool	DisconnectSrc (FBPlug *pSrc)
	Remove a source connection.
void	DisconnectAllSrc ()
	Remove all source connections.
void	DisconnectAllDst ()
	Remove all destination connections.
bool	DisconnectDstAt (int pIndex)
	Remove a destination connection at a specified index.
bool	DisconnectSrcAt (int pIndex)
	Remove a source connection at a specified index.
bool	ReplaceDstAt (int pIndex, FBPlug *pDst)
	Replace a destination connection at a specified index.
bool	ReplaceSrcAt (int pIndex, FBPlug *pSrc)
	Replace a source connection at a specified index.
bool	SwapSrc (int pIndexA, int pIndexB)
	Swap source connection at index A with source connection at index B.
bool	MoveSrcAt (int pIndex, int pAtIndex)
	Move source connection at pIndex to pAtIndex.
bool	MoveSrcAt (FBPlug *pSrc, FBPlug *pAtSrc)
	Move source connection pSrc to the position of pAtSrc.
int	GetSrcCount ()
	Get source connection count.
FBPlug *	GetSrc (int pIndex)
	Get a source connection's plug at specified index.
FBConnectionType	GetSrcType (int pIndex)
	Get a source connection's type at specified index.
int	GetDstCount ()
	Get destination connection count.
FBPlug *	GetDst (int pIndex)
	Get a destination connection's plug at specified index.
FBConnectionType	GetDstType (int pIndex)
	Get a destination connection's type at specified index.
bool	BeginChange ()
	Begins a change on multiple plugs.
void	EndChange ()
	Ends a change on multiple plugs.
void	SetSelfModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's self modification flag.
bool	GetSelfModified (FBPlugModificationFlag pFlag)
	Tell if the plug's self has changed.
void	SetContentModified (FBPlugModificationFlag pFlag, bool pBool)
	Set the plug's owned property/object's modification flag.
bool	GetContentModified (FBPlugModificationFlag pFlag)
	Tell if the plug's content has changed.
int	GetPlugConnectionModifiedList (FBPlugList &pPlugList, FBPlugModificationFlag pConnectionModificatonFlag, bool pAddRemove)
	Get plug's modified src/dst property/object connection added/removed List.
bool	RevertModification (FBPlugModificationFlag pFlag=kFBAllModifiedMask)
	Revert the plug's modification to original status.
void	SetStatusFlag (FBPlugStatusFlag pStatus, bool pValue)
	Set the plug's status flag.
bool	GetStatusFlag (FBPlugStatusFlag pStatus) const
	Tell if the plug's status has changed.
FBPlug *	GetOwner ()
	Get the owner of this plug.
FBPlug *	GetOwned (int pIndex)
	Get the owned plug at specified index.
int	GetOwnedCount ()
	Get the owned plug count.
virtual const char *	ClassName ()
	internal System vars.
virtual bool	Is (int pTypeId)
	Is( int pTypeId )
virtual int	GetTypeId ()
	GetTypeId( int pTypeId )
virtual bool	PlugDataNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugDataNotify when overloaded is equivalent of FBSystem.OnConnectionDataNotify but in the context of the derived object only.
virtual bool	PlugStateNotify (FBConnectionAction pAction, FBPlug *pThis, void *pData=NULL, void *pDataOld=NULL, int pDataSize=0)
	PlugStateNotify when overloaded is equivalent of FBSystem.OnConnectionStateNotify but in the context of the derived object only.
virtual bool	PlugNotify (FBConnectionAction pAction, FBPlug *pThis, int pIndex, FBPlug *pPlug=NULL, FBConnectionType pConnectionType=kFBConnectionTypeNone, FBPlug *pNewPlug=NULL)
	PlugNotify when overloaded is equivalent of FBSystem.OnConnectionNotify but in the context of the derived object only.
virtual void	FBDelete ()
	Actual destructor for a FBPlug.
Static Protected Member Functions inherited from FBPlug
static int	GetInternalClassId ()
	Internal class Id.
Protected Attributes inherited from FBPlug
bool	mAllocated
	Contain the Allocation State of the Component.
HIObject	mObject
	Handle on the Plug.
bool	mSDKComponent
	bool Plug is an SDK component.
Static Protected Attributes inherited from FBPlug
static const char *	ClassGroupName
	ClassGroupName of the object.
static int	TypeInfo
	TypeInfo.
static int	mGlobalTypeInfo
	Represente the Type Index.

Detailed Description

Deck layout class.

Definition at line 106 of file fbdecklayout.h.

Constructor & Destructor Documentation

FBDeckLayout()

FBDeckLayout

(

FBDeck *

pDeck = NULL

)

Constructor.

Parameters

pDeck

Deck to association with Deck layout.

Member Data Documentation

Deck

FBPropertyDeck Deck

Property: Deck.

Definition at line 116 of file fbdecklayout.h.

---

The documentation for this class was generated from the following file:

• fbdecklayout.h
