FBDevice Class Reference

Base Device class. More...

#include <pyfbsdk.h>

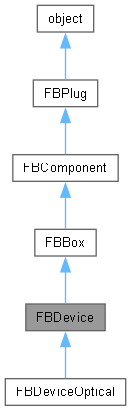

Inheritance diagram for FBDevice:

Public Member Functions
	FBDevice (str pName)
	Constructor.
	AckOneBadSampleReceived ()
	Acknowlege that one bad sample was received (for statistical purposes).
	AckOneSampleReceived ()
	Acknowlege that one sample was received (for statistical purposes).
	AckOneSampleSent ()
	Acknowlege that one sample was sent (for statistical purposes).
bool	DeviceOperation (kDeviceOperations pOperation)
	Operate device.
	DeviceSendCommand (kDeviceOperations pOperation)
	Send a command to the device.
bool	FBCreate ()
	Open Reality Creation function.
	FBDestroy ()
	Open Reality destruction function.
FBModel	ModelBindingCreate ()
	Create a new model binding.
	ModelBindingRootsList (FBModelList pList)
	Get the list of all the possible root models for binding.
	RecordingDoneAnimation (FBAnimationNode pAnimationNode)
	When recording, finish animation.
	RecordingInitAnimation (FBAnimationNode pAnimationNode)
	When recording, initialize animation.
Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor.
bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node.
FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.
bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data?
FBAnimationNode	AnimationNodeOutGet ()
str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.
str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.
FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index.
int	GetInConnectorCount ()
	Get the number of animation node inputs for this box.
FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index.
int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box.
Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.
str	ClassName ()
	Get the class name.
	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.
	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.
bool	FBCreate ()
	Open Reality Creation function.
	FBDelete ()
	Open Reality deletion function.
	FBDestroy ()
	Open Reality destruction function.
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.
FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.
	HardSelect ()
	HardSelect.
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.
bool	Is (int pTypeId)
	Returns true if object is of type TypeId.
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.
int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.
bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.
FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.
	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.
	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.
	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.
	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
int	CommType
	Read Write Property: Type of communications.
str	HardwareVersionInfo
	Read Write Property: Device information: hardware version.
str	Information
	Read Write Property: Device information: information.
FBModel	ModelBindingRoot
	Component: Root of model currently binded model hierarchy.
FBModelTemplate	ModelTemplate
	Component: Root of model template structure.
bool	Online
	Read Write Property: Is online?
FBTime	RecordingStartTime
	Read Only Property: The time at which the recording started.
FBTime	RecordingStopTime
	Read Only Property: The time at which the recording stopped.
FBDeviceSamplingMode	SamplingMode
	Read Write Property: Mode to use to record device.
FBTime	SamplingPeriod
	Read Write Property: Set this to how many times a device is to be evaluated in one second. There is no theoretical maximum value but practically you should consider scene complexity, system resources, network speed, etc. If set to 0: the device is evaluated on the sync signal. When the sync occurs; the device is scheduled to be evaluated. If you do not set, the sampling period is based on the internal variable from the [Sync] section of the .Application.txt file (NTSC, PAL, CINEMA).
str	Status
	Read Write Property: Device information: status.
Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable.
bool	Live
	Read Write Property: Is live?
bool	RecordMode
	Read Write Property: Is recording?
str	UniqueName
	internal Unique name.
Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.
str	LongName
	Read Write Property: Name and namespace for object.
str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.
FBListComponent	Parents
	List: Parents.
FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.
bool	Selected
	Read Write Property: Selected property.
int	TypeInfo
	Contains the Type information of the object.
Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.
int	TypeInfo
	TypeInfo.

Detailed Description

Base Device class.

Cannot be instantiated from Python.

# This example shows how to create a Vicon Stream Device (a third-party device), initialize it and add it to the scene:

# Create the Vicon Stream Device
viconStreamDevice = FBCreateObject( 'Browsing/Templates/Devices', 'Vicon Stream Device', 'Vicon Stream Device' )

if viconStreamDevice:
    # Initialize the device
    viconStreamDevice.DeviceOperation( kDeviceOperations.kOpInit )

    # Import the device to the current file
    FBSystem().Scene.Devices.append( viconStreamDevice )

    print( 'Vicon Stream Device initialized and added to the scene' )
else:
    print( 'Vicon Stream Device not found' )

See samples: StartDevice.py, StopDevice.py.

Constructor & Destructor Documentation

FBDevice()

FBDevice

(

str

pName

)

Constructor.

Parameters

pName

Name of device.

Member Function Documentation

AckOneBadSampleReceived()

AckOneBadSampleReceived

(

)

Acknowlege that one bad sample was received (for statistical purposes).

AckOneSampleReceived()

AckOneSampleReceived

(

)

Acknowlege that one sample was received (for statistical purposes).

AckOneSampleSent()

AckOneSampleSent

(

)

Acknowlege that one sample was sent (for statistical purposes).

DeviceOperation()

bool DeviceOperation

(

kDeviceOperations

pOperation

)

Operate device.

This is an operation such as Init, Start, Done, Reset, etc.

Parameters

pOperation

Operation to have device perform.

Returns

Current state : <b true if online.

DeviceSendCommand()

DeviceSendCommand

(

kDeviceOperations

pOperation

)

Send a command to the device.

This function will send the Init, Start, etc. commands to the device.

Parameters

pOperation

Operation for device to perform.

FBCreate()

bool FBCreate

(

)

Open Reality Creation function.

Returns

Outcome of creation (true/false).

FBDestroy()

FBDestroy

(

)

Open Reality destruction function.

ModelBindingCreate()

FBModel ModelBindingCreate

(

)

Create a new model binding.

Returns

The model root that has been created or NULL is an error occured.

ModelBindingRootsList()

ModelBindingRootsList

(

FBModelList

pList

)

Get the list of all the possible root models for binding.

Parameters

pList

List to add found models to.

RecordingDoneAnimation()

RecordingDoneAnimation

(

FBAnimationNode

pAnimationNode

)

When recording, finish animation.

Parameters

pAnimationNode

Animation node to write information to.

RecordingInitAnimation()

RecordingInitAnimation

(

FBAnimationNode

pAnimationNode

)

When recording, initialize animation.

Parameters

pAnimationNode

Animation node to read information from.

Member Data Documentation

CommType

int CommType

Read Write Property: Type of communications.

HardwareVersionInfo

str HardwareVersionInfo

Read Write Property: Device information: hardware version.

Information

str Information

Read Write Property: Device information: information.

ModelBindingRoot

FBModel ModelBindingRoot

Component: Root of model currently binded model hierarchy.

ModelTemplate

FBModelTemplate ModelTemplate

Component: Root of model template structure.

Online

bool Online

Read Write Property: Is online?

RecordingStartTime

FBTime RecordingStartTime

Read Only Property: The time at which the recording started.

RecordingStopTime

FBTime RecordingStopTime

Read Only Property: The time at which the recording stopped.

SamplingMode

FBDeviceSamplingMode SamplingMode

Read Write Property: Mode to use to record device.

SamplingPeriod

FBTime SamplingPeriod

Read Write Property: Set this to how many times a device is to be evaluated in one second. There is no theoretical maximum value but practically you should consider scene complexity, system resources, network speed, etc. If set to 0: the device is evaluated on the sync signal. When the sync occurs; the device is scheduled to be evaluated. If you do not set, the sampling period is based on the internal variable from the [Sync] section of the .Application.txt file (NTSC, PAL, CINEMA).

Status

str Status

Read Write Property: Device information: status.
