FBHUDElement Class Reference

Heads Up display. More...

#include <pyfbsdk.h>

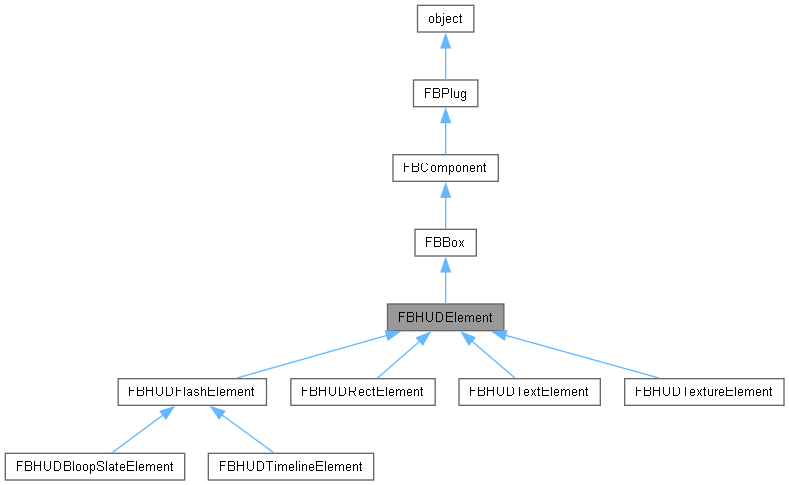

Inheritance diagram for FBHUDElement:

Public Attributes

float Height
 Read Write Property: Specifies the height of HUD element on the screen. It's in pixel when ScaleByPercent is false and percentage when ScaleByPercent is true.


FBHUDElementHAlignment HorizontalDock
 Read Write Property: Specifies if the HUD element will be horizontally docked to the Left, Right, or Center.


FBHUDElementHAlignment Justification
 Read Write Property: Specifies if the justification of the HUD element is Left, Right, or Center.


bool PositionByPercent
 Read Write Property: When set to true, X and Y position values are in percentage, relative to the corresponding camera view dimension. Otherwise, they are absolute pixel values.


bool ScaleByPercent
 Read Write Property: When set to true, Scale is in percentage, relative to the corresponding camera view dimension. Otherwise, it is an absolute value.


bool ScaleUniformly
 Read Write Property: Specifies whether the width and height of HUD element will be scaled uniformly according to the initial aspect ratio.


bool Show
 Read Write Property: Specifies if the HUD element will be displayed or not.


FBHUDElementVAlignment VerticalDock
 Read Write Property: Specifies if the HUD element will be vertically docked to the Bottom, Top, or Center.


float Width
 Read Write Property: Specifies the width of HUD element on the screen. It's in pixel when ScaleByPercent is false and percentage when ScaleByPercent is true.


float X
 Read Write Property: Specifies the horizontal position of the HUD element, relative to dock position and justification.


float Y
 Read Write Property: Specifies the vertical position of the HUD element, relative to dock position and justification.


- Public Attributes inherited from FBBox
bool Animatable
 Read Write Property: Is the box animatable.


bool Live
 Read Write Property: Is live?


bool RecordMode
 Read Write Property: Is recording?


str UniqueName
 internal Unique name.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Additional Inherited Members

- Public Member Functions inherited from FBBox
 FBBox (str pName)
 Constructor.

bool AnimationNodeDestroy (FBAnimationNode pAnimationNode)
 Destroy an animation node.

FBAnimationNode AnimationNodeInGet ()
 Get the (IN/OUT) animation node for this box.

bool AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
 Is the animation node user data?

FBAnimationNode AnimationNodeOutGet ()

str FbxGetObjectSubType ()
 Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str FbxGetObjectType ()
 Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode GetInConnector (int pIndex)
 Get the animation node input associated with the given index.

int GetInConnectorCount ()
 Get the number of animation node inputs for this box.

FBAnimationNode GetOutConnector (int pIndex)
 Get the animation node output associated with the given index.

int GetOutConnectorCount ()
 Get the number of animation node outputs for this box.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Detailed Description

Heads Up display.


Display scene related information on a camera output. Rendered on video out, output renderings.

Member Data Documentation

◆ Height

float Height

Read Write Property: Specifies the height of HUD element on the screen. It's in pixel when ScaleByPercent is false and percentage when ScaleByPercent is true.

◆ HorizontalDock

FBHUDElementHAlignment HorizontalDock

Read Write Property: Specifies if the HUD element will be horizontally docked to the Left, Right, or Center.

◆ Justification

FBHUDElementHAlignment Justification

Read Write Property: Specifies if the justification of the HUD element is Left, Right, or Center.

◆ PositionByPercent

bool PositionByPercent

Read Write Property: When set to true, X and Y position values are in percentage, relative to the corresponding camera view dimension. Otherwise, they are absolute pixel values.

◆ ScaleByPercent

bool ScaleByPercent

Read Write Property: When set to true, Scale is in percentage, relative to the corresponding camera view dimension. Otherwise, it is an absolute value.

◆ ScaleUniformly

bool ScaleUniformly

Read Write Property: Specifies whether the width and height of HUD element will be scaled uniformly according to the initial aspect ratio.

◆ Show

bool Show

Read Write Property: Specifies if the HUD element will be displayed or not.

◆ VerticalDock

FBHUDElementVAlignment VerticalDock

Read Write Property: Specifies if the HUD element will be vertically docked to the Bottom, Top, or Center.

◆ Width

float Width

Read Write Property: Specifies the width of HUD element on the screen. It's in pixel when ScaleByPercent is false and percentage when ScaleByPercent is true.

◆ X

float X

Read Write Property: Specifies the horizontal position of the HUD element, relative to dock position and justification.

◆ Y

float Y

Read Write Property: Specifies the vertical position of the HUD element, relative to dock position and justification.
