FBTree Class Reference

Tree list view. More...

#include <pyfbsdk.h>

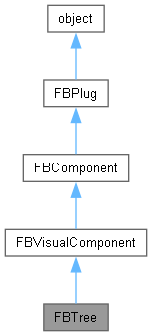

Inheritance diagram for FBTree:

Public Member Functions

 FBTree ()
 Constructor.

 Clear ()
 Clear the tree (remove all nodes).

FBTreeNode GetRoot ()
 Get the root node.

FBTreeNode InsertLast (FBTreeNode pNode, str pName)
 Insert node at the end.

- Public Member Functions inherited from FBVisualComponent
 FBVisualComponent ()
 Constructor.

bool AddChild (FBVisualComponent pChild, int pId=0)
 Add a child component.

FBVisualComponent GetChild (int pId=0)
 Get a child component.

QWidget GetQWidgetAddress ()
 Get internal QWidget.

bool IsView ()
 Is component a view?

 Refresh (bool pNow=False)
 Refresh component.

 ViewExpose ()
 Exposed view callback function.

 ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
 Input callback function.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

bool AllowCollapse
 Read Write Property: When OnCollapsing occurs, set this to true to allow collapse.


bool AllowExpansion
 Read Write Property: When OnExpanding occurs, set this to true to allow expansion.


bool AutoExpandOnDblClick
 Read Write Property: Allow automatic expand on double click, default is false.


bool AutoExpandOnDragOver
 Read Write Property: Allow automatic expand on drag over, default is false.


bool AutoScroll
 Read Write Property: If AutoScroll property is True then the tree window will be automatically scrolled when the user drags item(s) over the boundaries of the tree.


bool AutoScrollOnExpand
 Read Write Property: Allow automatic scroll on expand, default is true.


bool CheckBoxes
 Read Write Property: Draw check boxe for each node.


bool DeselectOnCollapse
 Read Write Property: Tells whether node are deselected if parent node is collapsed.


bool EditNodeOn2Select
 Read Write Property: Set to true, to allow automatic node editing on second select.


bool HighlightOnRightClick
 Read Write Property: Hightlight node on right click.


int Indent
 Read Write Property: Use Indent to determine how far child nodes are indented from their parent nodes when the parent is expanded.


int ItemHeight
 Read Write Property: Height of an item.


bool MultiDrag
 Read Write Property: Tells whether multiple drag/drop is allowed or not.


bool MultiSelect
 Read Write Property: Tells whether multiple selection is allowed or not.


bool NoSelectOnDrag
 Read Write Property: Tells whether node are selected if drag is start and node is not already selected.


bool NoSelectOnRightClick
 Read Write Property: Tells whether node are selected if right click on node.


FBEvent OnChange
 Event: Change of the selection.


FBEvent OnClick
 Event: Click on a node of the tree. Use OnSelect.


FBEvent OnClickCheck
 Event: Click on a node checkbox of the tree.


FBEvent OnCollapsed
 Event: Click on the "-" sign before a non-leaf node.


FBEvent OnCollapsing
 Event: Fired before the node collapse. To refuse collapsing, set AllowCollapse to false.


FBEvent OnDblClick
 Event: Double-Click on a node of the tree. Use FBEventTreeSelect to cast event.


FBEvent OnDragAndDrop
 Event: Drag and drop of an element.


FBEvent OnExpanded
 Event: Click on the "+" sign before a non-leaf node


FBEvent OnExpanding
 Event: Is fired before the node expand. To refuse expanding set AllowExpansion to false.


FBEvent OnSelect
 Event: A node was selected. Use FBEventTreeSelect to cast event.


int SelectedCount
 Read Only Property: Count of selected items.


FBListTreeNode SelectedNodes
 Read Only Property: List of selected nodes.


bool SelectionActive
 Read Write Property: Tells whether selection is allowed or not.


bool ShowLines
 Read Write Property: On node selection, will draw entire line selected


int TreeHeight
 Read Only Property: Height of the tree.


int TreeWidth
 Read Only Property: Width of the tree.


int VisibleItemCount
 Read Only Property: Count of visible items.


- Public Attributes inherited from FBVisualComponent
str RegionName
 Read Write Property: Region name.

int RegionOffsetX
 Read Write Property: Region X offset.

int RegionOffsetY
 Read Write Property: Region Y offset.

int RegionOffsetWidth
 Read Write Property: Region width offset.

int RegionOffsetHeight
 Read Write Property: Region height offset.

float RegionRatioX
 Read Write Property: Ratio for X attachment.

float RegionRatioY
 Read Write Property: Ratio for Y attachment.

float RegionRatioWidth
 Read Write Property: Ratio for Width attachment.

float RegionRatioHeight
 Read Write Property: Ratio for Height attachment.


FBAttachType RegionAttachTypeX
 Read Write Property: X Attachment type.

FBAttachType RegionAttachTypeY
 Read Write Property: Y Attachment type.

FBAttachType RegionAttachTypeWidth
 Read Write Property: Width Attachment type.

FBAttachType RegionAttachTypeHeight
 Read Write Property: Height Attachment type.

FBVisualComponent RegionAttachToX
 Read Write Property X Attachment source.

FBVisualComponent RegionAttachToY
 Read Write Property: Y Attachment source.

FBVisualComponent RegionAttachToWidth
 Read Write Property: Width Attachment source.

FBVisualComponent RegionAttachToHeight
 Read Write Property: Height Attachment source.


int RegionPosMaxX
 Read Write Property: Region X position Max

int RegionPosMinX
 Read Write Property: Region X position Min

int RegionPosMaxY
 Read Write Property: Region Y position Max

int RegionPosMinY
 Read Write Property: Region Y position Min

str BorderCaption
 Read Write Property: Caption to display in border.

bool BorderShowCaption
 Read Write Property: Show caption?

FBBorderStyle BorderStyle
 Read Write Property: Style of border.

bool BorderInSet
 Read Write Property: Is border inset?

int BorderWidth
 Read Write Property: Width of border.

int BorderSpacing
 Read Write Property: Spacing of border.

float BorderMaxAngle
 Read Write Property: Max angle for rounding.

int BorderCornerRadius
 Read Write Property: Corner radius (rounded).


str Caption
 Property: Widget caption.


bool Enabled
 Read Write Property: Is visual enabled?


int Height
 Read Write Property: Height.


str Hint
 Read Write Property: Hint to show.


int Left
 Read Write Property: Left coordinate.


bool ReadOnly
 Read Write Property: Is visual component read only?


int Top
 Read Write Property: Top coordinate.


bool Visible
 Read Write Property: Is visual component visible?


int Width
 Read Write Property: Width.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Tree list view.


See sample: Tree.py.

Constructor & Destructor Documentation

◆ FBTree()

FBTree ( )

Constructor.

Member Function Documentation

◆ Clear()

Clear ( )

Clear the tree (remove all nodes).

◆ GetRoot()

FBTreeNode GetRoot ( )

Get the root node.

Returns
the root node of the tree.

◆ InsertLast()

FBTreeNode InsertLast ( FBTreeNode  pNode,
str  pName
)

Insert node at the end.

Parameters
pNodeNode under which the new node will appear.
pNameText to display for this node.
Returns
the newly created node.

Member Data Documentation

◆ AllowCollapse

bool AllowCollapse

Read Write Property: When OnCollapsing occurs, set this to true to allow collapse.

◆ AllowExpansion

bool AllowExpansion

Read Write Property: When OnExpanding occurs, set this to true to allow expansion.

◆ AutoExpandOnDblClick

bool AutoExpandOnDblClick

Read Write Property: Allow automatic expand on double click, default is false.

◆ AutoExpandOnDragOver

bool AutoExpandOnDragOver

Read Write Property: Allow automatic expand on drag over, default is false.

◆ AutoScroll

bool AutoScroll

Read Write Property: If AutoScroll property is True then the tree window will be automatically scrolled when the user drags item(s) over the boundaries of the tree.

◆ AutoScrollOnExpand

bool AutoScrollOnExpand

Read Write Property: Allow automatic scroll on expand, default is true.

◆ CheckBoxes

bool CheckBoxes

Read Write Property: Draw check boxe for each node.

◆ DeselectOnCollapse

bool DeselectOnCollapse

Read Write Property: Tells whether node are deselected if parent node is collapsed.

◆ EditNodeOn2Select

bool EditNodeOn2Select

Read Write Property: Set to true, to allow automatic node editing on second select.

◆ HighlightOnRightClick

bool HighlightOnRightClick

Read Write Property: Hightlight node on right click.

◆ Indent

int Indent

Read Write Property: Use Indent to determine how far child nodes are indented from their parent nodes when the parent is expanded.

◆ ItemHeight

int ItemHeight

Read Write Property: Height of an item.

◆ MultiDrag

bool MultiDrag

Read Write Property: Tells whether multiple drag/drop is allowed or not.

◆ MultiSelect

bool MultiSelect

Read Write Property: Tells whether multiple selection is allowed or not.

◆ NoSelectOnDrag

bool NoSelectOnDrag

Read Write Property: Tells whether node are selected if drag is start and node is not already selected.

◆ NoSelectOnRightClick

bool NoSelectOnRightClick

Read Write Property: Tells whether node are selected if right click on node.

◆ OnChange

FBEvent OnChange

Event: Change of the selection.

◆ OnClick

FBEvent OnClick

Event: Click on a node of the tree. Use OnSelect.

◆ OnClickCheck

FBEvent OnClickCheck

Event: Click on a node checkbox of the tree.

◆ OnCollapsed

FBEvent OnCollapsed

Event: Click on the "-" sign before a non-leaf node.

◆ OnCollapsing

FBEvent OnCollapsing

Event: Fired before the node collapse. To refuse collapsing, set AllowCollapse to false.

◆ OnDblClick

FBEvent OnDblClick

Event: Double-Click on a node of the tree. Use FBEventTreeSelect to cast event.

◆ OnDragAndDrop

FBEvent OnDragAndDrop

Event: Drag and drop of an element.

◆ OnExpanded

FBEvent OnExpanded

Event: Click on the "+" sign before a non-leaf node

◆ OnExpanding

FBEvent OnExpanding

Event: Is fired before the node expand. To refuse expanding set AllowExpansion to false.

◆ OnSelect

FBEvent OnSelect

Event: A node was selected. Use FBEventTreeSelect to cast event.

◆ SelectedCount

int SelectedCount

Read Only Property: Count of selected items.

◆ SelectedNodes

FBListTreeNode SelectedNodes

Read Only Property: List of selected nodes.

◆ SelectionActive

bool SelectionActive

Read Write Property: Tells whether selection is allowed or not.

◆ ShowLines

bool ShowLines

Read Write Property: On node selection, will draw entire line selected

◆ TreeHeight

int TreeHeight

Read Only Property: Height of the tree.

◆ TreeWidth

int TreeWidth

Read Only Property: Width of the tree.

◆ VisibleItemCount

int VisibleItemCount

Read Only Property: Count of visible items.
