FBVideoIn Class Reference

Basic video input class, supporting webcam and DV device. More...

#include <pyfbsdk.h>

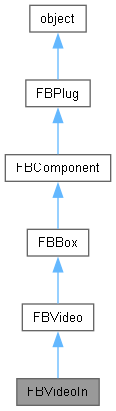

Inheritance diagram for FBVideoIn:

Public Member Functions

 FBVideoIn ()
 Constructor.

int LiveGetCompressor ()
 Get the current compressor index.

int LiveGetCompressorCount ()
 Get the compressor count.

str LiveGetCompressorName (int pCompressorIndex)
 Get the compressor name at a particular index.

int LiveGetResolutionFR ()
 Get the current resolution and frame rate index.

int LiveGetResolutionFRCount ()
 Get the number of resolution and frame rate available for the device.

str LiveGetResolutionFRName (int pIndex)
 Get the resolution and frame rate string description at the specified index.

FBVideoLiveType LiveGetType ()
 Get the type of the video input device.

bool LiveSetCompressor (int pCompressorIndex)
 Set the current compressor to be used when recording.

 LiveSetResolutionFR (int pIndex)
 Set the current resolution and frame rate for the device.

- Public Member Functions inherited from FBVideo
 FBVideo (str pName)
 Constructor.

- Public Member Functions inherited from FBBox
 FBBox (str pName)
 Constructor.

bool AnimationNodeDestroy (FBAnimationNode pAnimationNode)
 Destroy an animation node.

FBAnimationNode AnimationNodeInGet ()
 Get the (IN/OUT) animation node for this box.

bool AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
 Is the animation node user data?

FBAnimationNode AnimationNodeOutGet ()

str FbxGetObjectSubType ()
 Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str FbxGetObjectType ()
 Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode GetInConnector (int pIndex)
 Get the animation node input associated with the given index.

int GetInConnectorCount ()
 Get the number of animation node inputs for this box.

FBAnimationNode GetOutConnector (int pIndex)
 Get the animation node output associated with the given index.

int GetOutConnectorCount ()
 Get the number of animation node outputs for this box.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

str FilePath
 Read Write Property: Location of the generated movie file after a recording session.


bool Online
 Read Write Property: If true, the device is online and will display the current video feed.


bool RecordAudio
 Read Write Property: If true, the device will also record audio during a recording session.


bool Recording
 Read Write Property: If true, the device will record during a recording session.


- Public Attributes inherited from FBVideo
bool KeepOnGPU
 Read Write Property: Don't auto flush from GPU if true. session runtime flag, won't be saved.


- Public Attributes inherited from FBBox
bool Animatable
 Read Write Property: Is the box animatable.


bool Live
 Read Write Property: Is live?


bool RecordMode
 Read Write Property: Is recording?


str UniqueName
 internal Unique name.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Basic video input class, supporting webcam and DV device.


See sample: VideoInput.py.

Constructor & Destructor Documentation

◆ FBVideoIn()

FBVideoIn ( )

Constructor.

Member Function Documentation

◆ LiveGetCompressor()

int LiveGetCompressor ( )

Get the current compressor index.

Returns
Index of the current compressor.

◆ LiveGetCompressorCount()

int LiveGetCompressorCount ( )

Get the compressor count.

Returns
Number of available compressor.

◆ LiveGetCompressorName()

str LiveGetCompressorName ( int  pCompressorIndex)

Get the compressor name at a particular index.

Returns
Name of the compressor. If the pCompressorIndex is higher than the number of compressor, the function will return NULL.

◆ LiveGetResolutionFR()

int LiveGetResolutionFR ( )

Get the current resolution and frame rate index.

Returns
Index of the current resolution and frame rate.

◆ LiveGetResolutionFRCount()

int LiveGetResolutionFRCount ( )

Get the number of resolution and frame rate available for the device.

Returns
Number of available resolution and frame rate.

◆ LiveGetResolutionFRName()

str LiveGetResolutionFRName ( int  pIndex)

Get the resolution and frame rate string description at the specified index.

Parameters
pIndexIndex of the resolution and frame rate.
Returns
Name of the resolution and frame rate.

◆ LiveGetType()

FBVideoLiveType LiveGetType ( )

Get the type of the video input device.

Returns
Type of the video input device.

◆ LiveSetCompressor()

bool LiveSetCompressor ( int  pCompressorIndex)

Set the current compressor to be used when recording.

Parameters
pCompressorIndexIndex of the compressor.
Returns
True if successful.

◆ LiveSetResolutionFR()

LiveSetResolutionFR ( int  pIndex)

Set the current resolution and frame rate for the device.

Parameters
pIndexIndex of the resolution and frame rate.

Member Data Documentation

◆ FilePath

str FilePath

Read Write Property: Location of the generated movie file after a recording session.

◆ Online

bool Online

Read Write Property: If true, the device is online and will display the current video feed.

◆ RecordAudio

bool RecordAudio

Read Write Property: If true, the device will also record audio during a recording session.

◆ Recording

bool Recording

Read Write Property: If true, the device will record during a recording session.
