Main Toolbar

The main toolbar provides quick access to tools and dialogs for many of the most common tasks in 3ds Max.

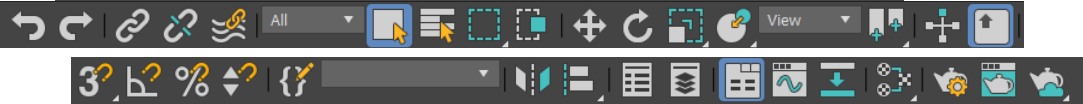

The main toolbar, split in two for this illustration

The Main toolbar is visible by default when first launching 3ds Max. However, if you close it and want to reopen it, you can open it from the Show UI submenu.

The main toolbar can be floated and docked in a different position on the interface by clicking and dragging the handle to the left of the toolbar. You can also make the Main toolbar modular, by selecting the Main Toolbar-Modular workspace from the Workspace Selector. Once modular, you can float and dock groups of tools to your liking.

Undo/Redo

Select and Link

Unlink Selection

Bind to Space Warp

Selection Filter List

Select Object

Select by Name

Selection Region flyout

Window/Crossing Selection Toggle

Select and Move

Select and Rotate

Select and Scale flyout

Select and Place flyout

Reference Coordinate System

Use Center flyout

Select and Manipulate

Keyboard Shortcut Override Toggle

2D Snap, 2.5D Snap, 3D Snap flyout

Angle Snap Toggle

Percent Snap Toggle

Spinner Snap Toggle

Edit Named Selection Sets

Named Selection Sets

Mirror

Align flyout

Toggle Scene Explorer

Toggle Layer Explorer

Toggle Ribbon

Curve Editor (Open)

Schematic View (Open)

Material Editor flyout

Render Setup

Rendered Frame Window

Render flyout
